Summary of Contents for ClimaTemp Portables Rebel 180

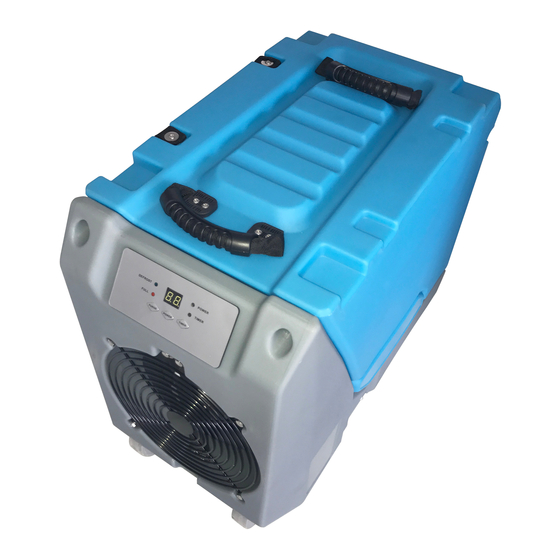

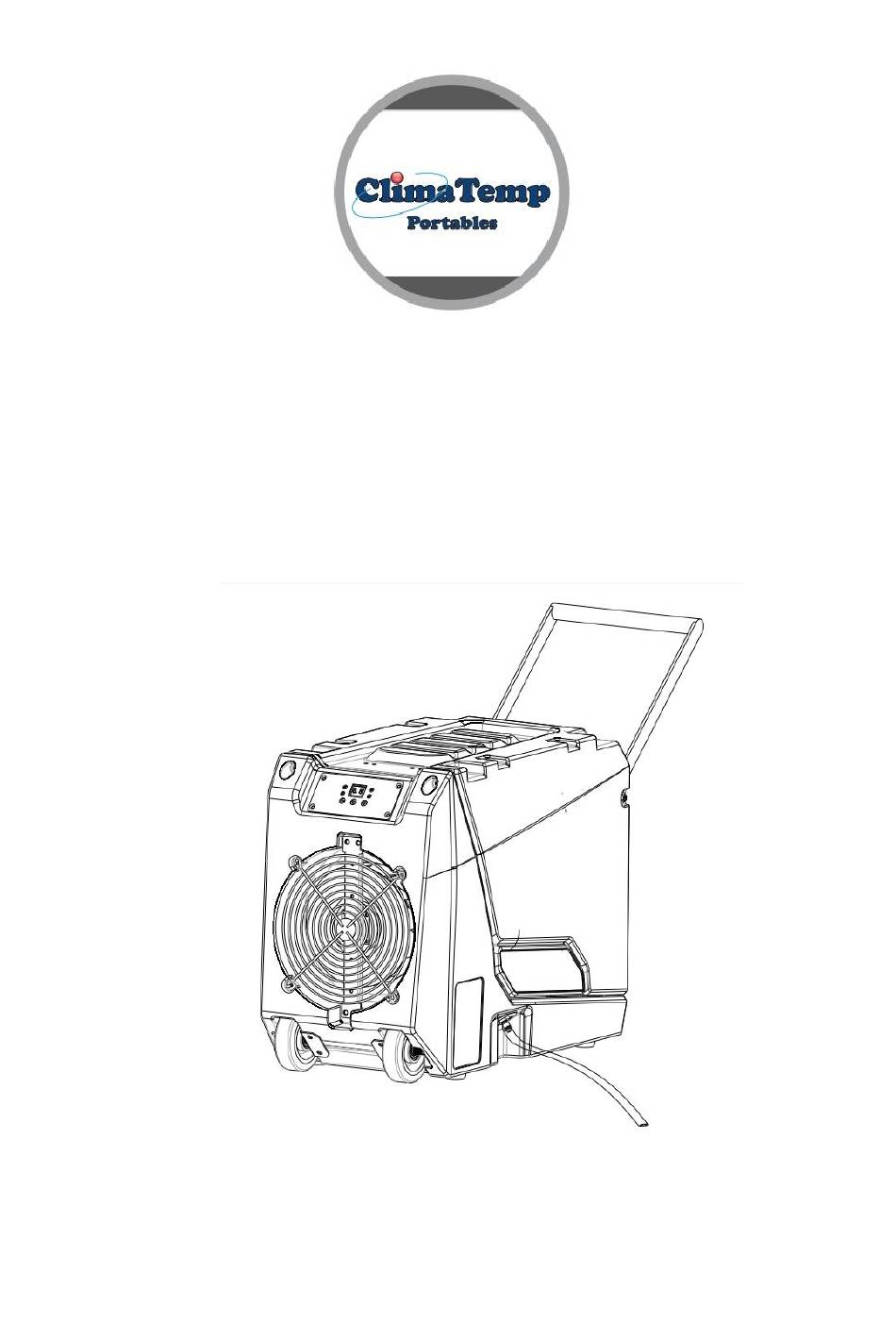

- Page 1 OPERATION & INSTRUCTION MANUAL Rebel 180 Crawl Space Dehumidifier...
-
Page 2: Table Of Contents
Please keep this manual for further reference! CONTENTS CAUTIONS.................1 SPECIFICATIONS..............2 FEATURES..................3 DRAWINGS................4 OPERATIONS................5 AUTO DRAINAGE AND MAINTENANCE......8 TROUBLE SHOOTING GUIDE..........9... -
Page 4: Cautions
CAUTIONS 1. Unplug the power supply before cleaning or storing the machine. 2. Never immerse the machine into water or other liquids. 3. Do not put the machine close to heat-generating devices, including flammable or dangerous materials. 4. Do not put fingers or other items into air inlet or air outlet. 5. -
Page 5: Specifications
SPECIFICATIONS Model No. Rebel 180/OL-R180P Voltage & Hertz AC115V / 60Hz 740W/6.9A @80℉, 60% RH Power Consumption& Current 900W/8.4A @86℉, 80% RH Refrigerant Charge R410A/19.8z (560g) 90Pints/Day @80℉, 60% RH Dehumidify Capacity 145Pints/Day @86℉, 80% RH High Side: 522psig (3.6MPa) Maximum Design Pressure Low Side: 240psig (1.65MPa) -
Page 6: Drawings
DRAWINGS Top cap Control panel Air outlet LOGO position Wheel Water Hose Connector Water Hose Label position Air Inlet Power cord LOGO position www.Clima-Temp.com 1-844-349-5665... -
Page 7: Operations
OPERATION When the power is on, the machine will enter stand-by state and the power indicator (POWER) will light up. Power Button: Press this button to turn on the machine, it will enter dehumidification mode automatically. Press the Power button again to turn off the machine and machine will enter into the stand-by state. - Page 8 You can set the machine when to turn on or off as you require. A. When the machine is under normal operating state, you can set the machine when to turn off. B. When the machine is under standby state, you can set the timing on the machine when to turn on.
- Page 9 Defrosting Indicator: When the machine requires the defrosting state, the indicator will light up. After finishing defrosting, the light will turn off. Water Full Indicator: When the water pump is full, the indicator light will light up. Display Screen: When the machine is running, it will show humidity of the incoming air.
-
Page 10: Auto Drainage And Maintenance
AUTO DRAINAGE &MAINTENANCE Please disconnect the power supply before cleaning or conducting maintenance. Auto Drainage: Connect water hose (≤13.12 ft length) to the water drainage hole by using the quick connector, the machine will automatically drain by water pump through water hose when operating. Cleaning: Clean the unit body with a soft damp cloth. -
Page 11: Trouble Shooting Guide
1. Push the purge button to empty the water before transportation or storage. 2. Transport and store the machine upright. 3. Stack machines in warehouse to save space. TROUBLE SHOOTING GUIDE Error prompt and code running status 1. "E1" code: This code appears when the copper head sensor is damaged. The machine will keep running, but every 30 minutes, the compressor will stop for about 10 minutes, then continue to run. - Page 12 Do not dispose of electrical appliances in local landfills, or municipal waste locations. Many parts are recyclable. Contact your local government for information regarding the collection systems available in your area. www.Clima-Temp.com 1-844-349-5665...
