Summary of Contents for TP Radio Thor 1 TP9000EX

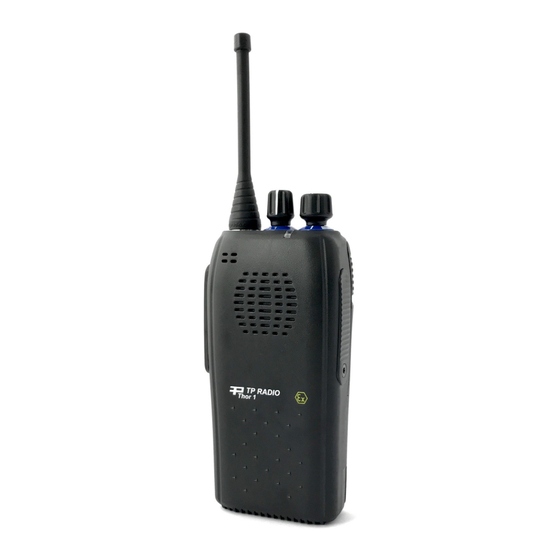

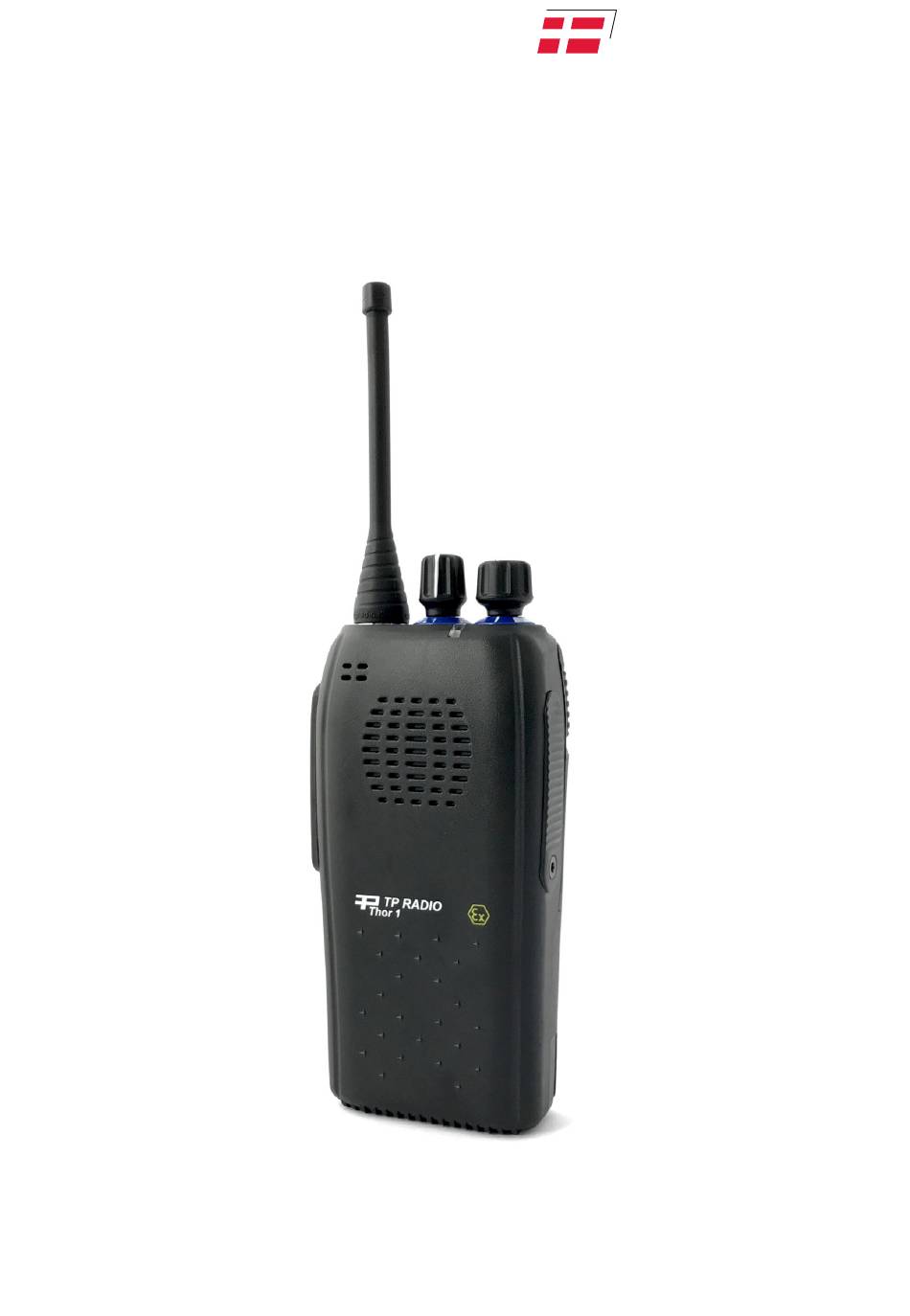

- Page 1 TPRADIO TP9000EX Thor 1 ATEX/IECEx Hand Portable Radio BASIC USER GUIDE...
- Page 2 TPRADIO UK Version 1.16 TPRADIO 07.03.2019...
-
Page 3: Table Of Contents
TPRADIO Basic user guide • Impotant information • Radio Controls • Programmable functions • LED Indicator • Getting Started • Technical specifications • Declaration of conformaty • Notes • Attention UK Version 1.16 TPRADIO 07.03.2019... -
Page 4: Impotant Information
TPRADIO Important information Safe use of ATEX equipment: • Do not change the battery & accessories in wet or humid environments. • Always keep battery connectors dry and clean. • Use only with ATEX approved accessories. • Alternatively ATEX approved accessories in compliance with the accessory connector ATEX specification may be used. - Page 5 Normal warranty is 12 months. Servicing the radio Only authorised TP Radio personnel may open the radio for servicing. If non-authorised persons open the radio, the radio may no longer comply with the ATEX directive, the guarantee will be renderedvoid, and the radio may no longer be waterproof.
- Page 6 Anyone relying on this information should acquire the most current version e.g. From www.tpradio.dk. TP Radio is not responsible for the content or accuracy of any translations or reproductions, in whole or in part, of this manual from any other source.
-
Page 7: Radio Controls
TPRADIO Radio Controls Push to Talk Button (PTT). Function Button 1. By default assigned for Speaker By default assigned for Speaker Mute/Squelch Open. Function Button 2. By default assigned for Call By default assigned for Call 1/Call 2 Channel Selector/Function Button 3. By default assigned for By default assigned for Emergency Call Power switch/Volume control... -
Page 8: Programmable Functions
TPRADIO Programmable Functions Each Function Button can activate two different functions. Function 1 is activated by a short press, and function 2 with a long press (3 seconds or more). With our external speaker-microphone connected to the TP9000EX, an additional (fourth) Function Button is accessible, and can be assigned to two more functions. - Page 9 TPRADIO If the default configuration does not comply with your requirements, our dealers can do the programming of the Function Buttons according to your needs. The following options can be assigned to fulfill any needs: • Call Telegram: Transmits a tone sequence to call another radio. •...
-
Page 10: Led Indicator
TPRADIO LED Indicator • Power ON The LED flashes green once (Battery level full, >50%). The LED flashes orange once (Battery level medium, 25- 50%). The LED flashes red once (Battery level low, <25%). • Stand-by The LED is white. •... -
Page 11: Getting Started
TPRADIO Getting started Switch the Radio On/Off Turn the On-Off/Volume Control knob clockwise. To switch off, turn the On-Off/Volume Control knob counterclockwise until you hear a click. Adjusting the Radio’s Volume Turn the Volume Control knob to adjust the volume level. Selecting a Radio Channel Turn the Channel Selector until you reach the desired channel indicated with numbers. -
Page 12: Technical Specifications
TPRADIO Technical specifications ITEM SPECIFICATION GENERAL DATA VHF frequency range 145 – 174 MHz UHF frequency range 406 – 470 MHz Max. Number of channels Channel Spacing 12,5 / 20 / 25 KHz VHF Bandwidth 29 Mhz UHF Bandwidth 64 MHz Operation mode Simplex / Semi-Duplex Antenna Impedance... - Page 13 TPRADIO TRANSMITTER RF output power, Programmable 0.5 - 2 Watt Max deviation ± 5 KHz / 25 KHz channel Spurious emission < 0,25 μW or - 36 dBm Modulation distortion < 5 % @ ± 3,0 KHz RECEIVER Sensitivity (EMF) (25 KHz channel spacing) @ 20 dB SINAD 0,45 μV @ 12 dB SINAD...
- Page 14 TPRADIO Intrinsically safe specifications: BL910: : 16V (250V without damaging BP930Ex, BL910 will not work afterwards) BP930EX CHARGING INPUT: 4,2V 1,8A TP9000EX (RE930/7EX & RE930/2EX) CONNECTION FOR HANDHELD ACCESSORIES OR PROGRAMMING UNIT PK930: 4,2V 595mA 2,5W 300µH 5µF PK930 (250V without damaging TP9000Ex, BK930 will not work afterwards) SW910EX TO SW919EX: NEXUS Jack.
- Page 15 TPRADIO HM930EX: 4,2V 595mA 2,5W 41µH 220pF SPECIAL CONDITION FOR SAFE USE: • Battery cassette BP930Ex shall only be charged in an area known to be non- hazardous. • The battery cassette BP930Ex shall only be charged with charger BL910. •...
-
Page 16: Declaration Of Conformaty
TPRADIO Simplified EU Declaration of Conformity Hereby, TP Radio, Agenavej 35-37,2670 Greve, Denmark Declares that the radio equipment Type: TP9000Ex Thor 1 Model: RE930/2Ex & RE930/7Ex Is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following internet address: https://drive.google.com/drive/folders/1QvamFi8o-3t5iNHxH5ftMSnfCWMKFcAc... -
Page 17: Notes
TPRADIO Notes: UK Version 1.16 TPRADIO 07.03.2019... -
Page 18: Attention
TPRADIO Attention GORE-TEX® Membrane To keep the Radio watertight, it is very important that the Gore-Tex® membrane under no circumstances must be damaged/covered or removed. Do not remove the Gore-Tex® membrane or place any labels in the area. UK Version 1.16 TPRADIO 07.03.2019... - Page 19 TPRADIO Battery Install Wrong battery installation can damage radio power terminals - radio will not work properly if terminals is bend ! UK Version 1.16 TPRADIO 07.03.2019...
- Page 20 TPRADIO UK Version 1.16 TPRADIO 07.03.2019...
