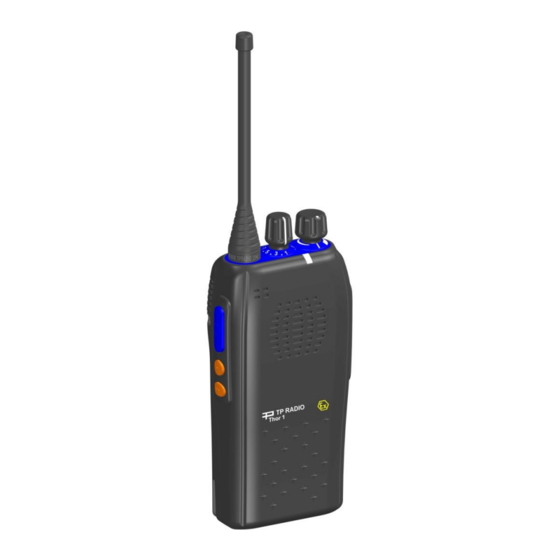

- Page 1 TP9000EX Thor 1 ATEX/IECEx Hand Portable Radio Basic user guide Version 1.15-Polaris Polaris 1/3 2019 /AB...
-
Page 2: Table Of Contents
Basic user guide • Impotant information • Radio Controls • Programmable functions • LED Indicator • Getting Started • Technical specifications • Declaration of conformaty • Attention Version 1.15-Polaris Polaris 1/3 2019 /AB... -
Page 3: Impotant Information
Important information Safe use of ATEX equipment: • Do not change the battery & accessories in wet or humid environments. • Always keep battery connectors dry and clean. • Use only with ATEX approved accessories. • Alternatively ATEX approved accessories in compliance with the accessory connector ATEX specification may be used. - Page 4 Authorised usage The Portable Radio Type TP9000EX Thor 1 must not be used unless you have a valid licence. Usage of the radio may be limited under the terms of your licence to a limited geographical area.
- Page 5 The information in this manual is provided for information purposes only, is subject to change without notice and may contain errors or inaccuracies. Manuals issued by TP Radio are periodically revised and updated. Anyone relying on this information should acquire the most current version e.g. From www.tpradio.dk.
-
Page 6: Radio Controls
Radio Controls 1. Push to Talk Button (PTT). 2. Function Button 1. By default assigned for Speaker By default assigned for Short press: Battery Level 3. Function Button 2. By default assigned for Call default assigned for Long press: Squelch Open 4. -
Page 7: Programmable Functions
Programmable Functions Each Function Button can activate two different functions. Function 1 is activated by a short press, and function 2 with a long press (3 seconds or more). With our external speaker-microphone connected to the TP9000EX, an additional (fourth) Function Button is accessible, and can be assigned to two more functions. - Page 8 If the default configuration does not comply with your requirements, our dealers will do the programming of the Function Buttons according to your needs. The following options can be assigned to fulfill any needs: Call Telegram Transmits a tone sequence to call another radio. ...
-
Page 9: Led Indicator
LED Indicator Power ON The LED flashes green once (Battery level full, >50%). The LED flashes orange once (Battery level medium, 25-50%). The LED flashes red once (Battery level low, <25%). Stand-by The LED is white. Transmitting The LED is red. -
Page 10: Getting Started
Getting started Switch the Radio On/Off Turn the On-Off/Volume Control knob clockwise. To switch off, turn the On-Off/Volume Control knob counterclockwise until you hear a click. Adjusting the Radio’s Volume Turn the Volume Control knob to adjust the volume level. Selecting a Radio Channel Turn the Channel Selector until you reach the desired channel indicated with numbers. -
Page 11: Technical Specifications
Technical specifications Item Specification GENERAL DATA VHF frequency range 145 – 174 MHz UHF frequency range 406 – 470 MHz Max. Number of channels Channel Spacing 12,5 / 20 / 25 KHz VHF Bandwidth 29 Mhz UHF Bandwidth 64 MHz Operation mode Simplex / Semi-Duplex Antenna Impedance... - Page 12 Dimensions incl. 3000mAh battery H = 137, B = 64, D = 31mm Weight incl. battery 250 g. TRANSMITTER RF output power, Programmable 0.5 - 2 Watt Max deviation ± 5 KHz / 25 KHz channel Spurious emission < 0,25 μW or - 36 dBm Modulation distortion <...
- Page 13 Version 1.15-Polaris Polaris 1/3 2019 /AB...
-
Page 14: Declaration Of Conformaty
Intrinsically safe specifications: BL910: U m : 16V DC (250V AC without damaging BP930Ex, BL910 will not work afterwards) BP930Ex charging input: U max : 4,2V I max : 1,8A TP9000Ex (RE930/7Ex & RE930/2Ex) connection for handheld accessories or programming unit PK930: U o : 4,2V I o :... - Page 15 U i : 4,2V I i : 595mA P i : 2,5W L i : 41µH C i : 220pF Special condition for safe use: Battery cassette BP930Ex shall only be charged in an area known to be non-hazardous. The battery cassette BP930Ex shall only be charged with charger BL910. The battery cassette BP930Ex shall only be charged in an ambient temperature range of: +10°C to +40°C The battery cassette BP930Ex may be replaced in hazardous area.
- Page 16 Simplified EU Declaration of Conformity Hereby, TP Radio, Agenavej 35-37,2670 Greve, Denmark declares that the radio equipment Type: TP9000Ex Thor 1 Model: RE930/2Ex & RE930/7Ex Is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following internet address: https://drive.google.com/drive/folders/1QvamFi8o-3t5iNHxH5ftMSnfCWMKFcAc...
- Page 17 Version 1.15-Polaris Polaris 1/3 2019 /AB...
-
Page 18: Attention
Attention GORE-TEX® Membrane To keep the Radio watertight, it is very important that the Gore-Tex® membrane under no circumstances must be damaged/covered or removed. Do not remove the Gore-Tex® membrane or place any labels in the area. Version 1.15-Polaris Polaris 1/3 2019 /AB...
