Summary of Contents for Kinfine HOMEPOP K4004.24

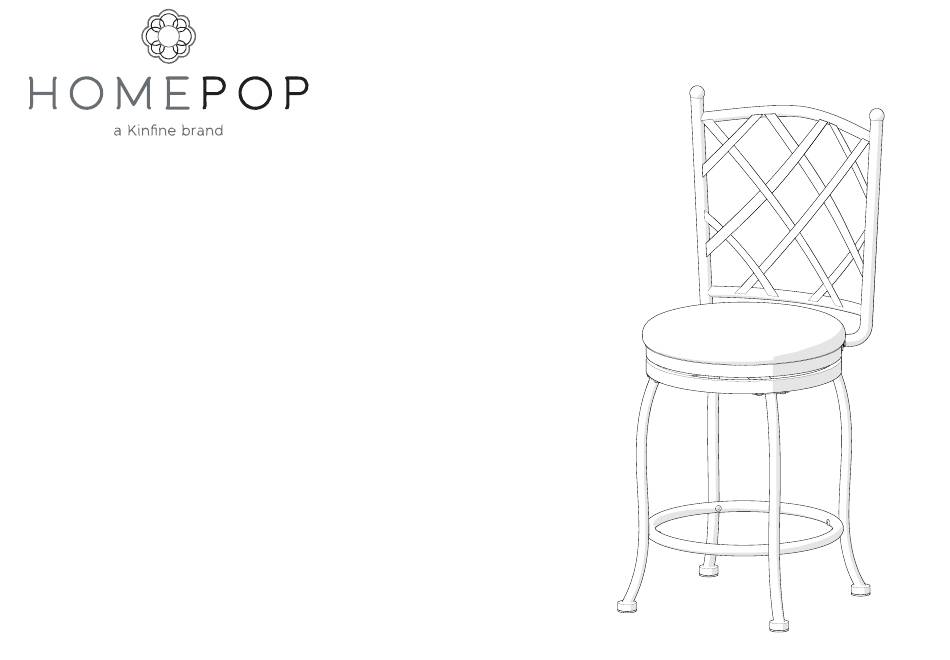

  • Page 1 Style Number : K4004.24 >>assembly instructions...
  • Page 2: Before You Begin

    Congratulations on your latest HomePop purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
  • Page 3 table of contents ..........introduction hardware parts list assembly QUESTIONS? Just email service@kinfine.com or call 1-888-626-0888 parts and service. For fast service, have the style number and article number ready when calling.
  • Page 4 hardware ................(A) x 4 (B) x 16 (C) x 4 (D) x 4 (E) x 1 1/4" x 35mm 4mm Ball end Φ 6mm x 12mm Φ 6mm lock washer Φ 13mm flat washer round hex screw Hex wrench round hex screw...
  • Page 5 ITEM DESCRIPTION QUANTITY ................chair back seat cushion bottom...
  • Page 6 step 1................Do not tighten these 12 bolts until the next step. (B) x 12 (E) x 1 4mm Ball end Φ 6mm x 12mm Hex wrench round hex screw Please do not assemble with power tools...
  • Page 7 step 2................Now you may tighten all 16 bolts. (A) x 4 (E) x 1 1/4" x 35mm 4mm Ball end round hex screw Hex wrench Please do not assemble with power tools...
  • Page 8 step 3................Now you may tighten all 4 bolts. (B) x 4 (C) x 4 (D) x 4 (E) x 1 4mm Ball end Φ 6mm x 12mm Φ 6mm lock washer Φ 13mm flat washer Hex wrench round hex screw Please do not assemble with power tools...
  • Page 9 step 4................A friendly reminder from us: Please keep the Allen wrench. After a period of time, there may be a chance the KD furniture may become loose, please use an Allen wrench to tighten the loose bolts. Put the chair right and check whether the chair has been well assembled. If it is not assembled, loosen the screw and tighten it on the ground.
