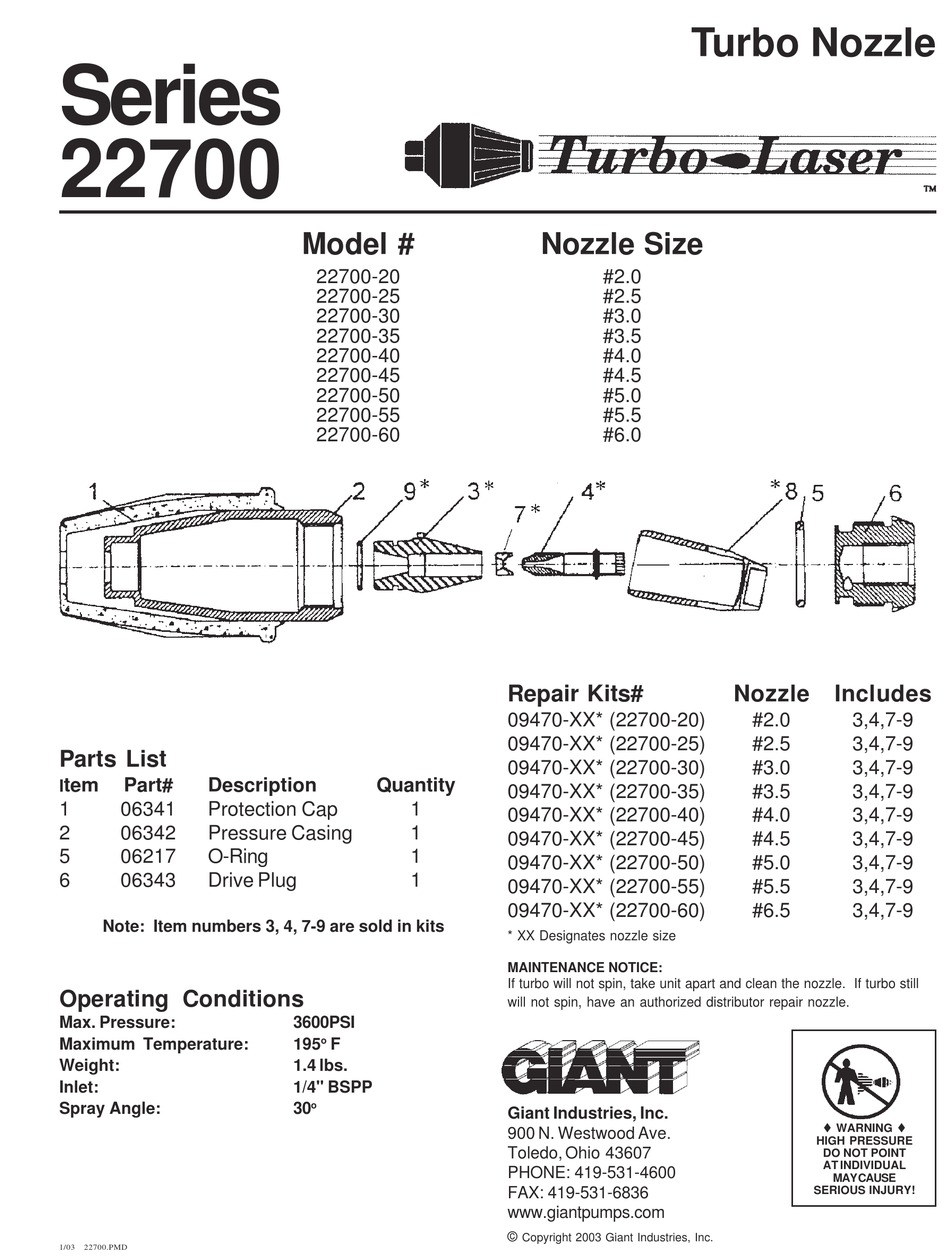

Giant Turbo-Laser 22700 Series Instruction Manual

Series
22700
Parts List
tem Part# Description
I
1 06341 Protection Cap
2 06342 Pressure Casing
5 06217 O-Ring
6 06343 Drive Plug
Note: Item numbers 3, 4, 7-9 are sold in kits
Operating Conditions
Max. Pressure:
Maximum Temperature:
Weight:
Inlet:
Spray Angle:
1/03 22700.PMD
Model #
22700-20
22700-25
22700-30
22700-35
22700-40
22700-45
22700-50
22700-55
22700-60
Quantity
1
1
1
1
3600PSI
195 o F
1.4 lbs.
1/4" BSPP
o
30
Nozzle Size
#2.0
#2.5
#3.0
#3.5
#4.0
#4.5
#5.0
#5.5
#6.0
Repair Kits#
09470-XX* (22700-20)
09470-XX* (22700-25)
09470-XX* (22700-30)
09470-XX* (22700-35)
09470-XX* (22700-40)
09470-XX* (22700-45)
09470-XX* (22700-50)
09470-XX* (22700-55)
09470-XX* (22700-60)
* XX Designates nozzle size
MAINTENANCE NOTICE:
If turbo will not spin, take unit apart and clean the nozzle. If turbo still
will not spin, have an authorized distributor repair nozzle.
Giant Industries, Inc.
900 N. Westwood Ave.
Toledo, Ohio 43607
PHONE: 419-531-4600
FAX: 419-531-6836
www.giantpumps.com
©
Copyright 2003 Giant Industries, Inc.
Turbo Nozzle
Nozzle Includes
#2.0 3,4,7-9
#2.5 3,4,7-9
#3.0 3,4,7-9
#3.5 3,4,7-9
#4.0 3,4,7-9
#4.5 3,4,7-9
#5.0 3,4,7-9
#5.5 3,4,7-9
#6.5 3,4,7-9
! WARNING !
HIGH PRESSURE
DO NOT POINT
AT INDIVIDUAL
MAY CAUSE
SERIOUS INJURY!
