Series
22700
Model #
Nozzle Size
22700-20
22700-25
22700-30
22700-35
22700-40
22700-45
22700-50
22700-55
22700-60
*Kit includes items 2-11
MAINTENANCE NOTICE:
If turbo will not spin, take unit apart and clean the nozzle.
If turbo still will not spin, have an authorized distributor repair nozzle.
Operating Conditions
Max. Pressure: .........................3000 PSI ....... 200 bar
Maximum Temperature: ..........195 °F ............ 100 °C
Weight: .....................................1.4 lbs .............. 635 g
Inlet: ........................................................... 1/4" BSPP
Spray Angle: .........................................................25°
Repair Kit*
#2.0
09470-20
#2.5
09470-25
#3.0
09470-30
#3.5
09470-35
#4.0
09470-40
#4.5
09470-45
#5.0
09470-50
#5.5
09470-55
#6.0
09470-60
U.S.
Metric
Parts List
tem
Part#
Description
I
1
06342
Discharge Casing
12
06341
Rubber Cap
Note: Item numbers 2-10 are sold in kits
Turbo Nozzle
WARNING
HIGH PRESSURE
DO NOT POINT
AT INDIVIDUAL
MAY CAUSE
SERIOUS INJURY!
Quantity
1
1
Advertisement
Table of Contents
Related Manuals for Giant Turbo-Laser 22700 Series
Summary of Contents for Giant Turbo-Laser 22700 Series

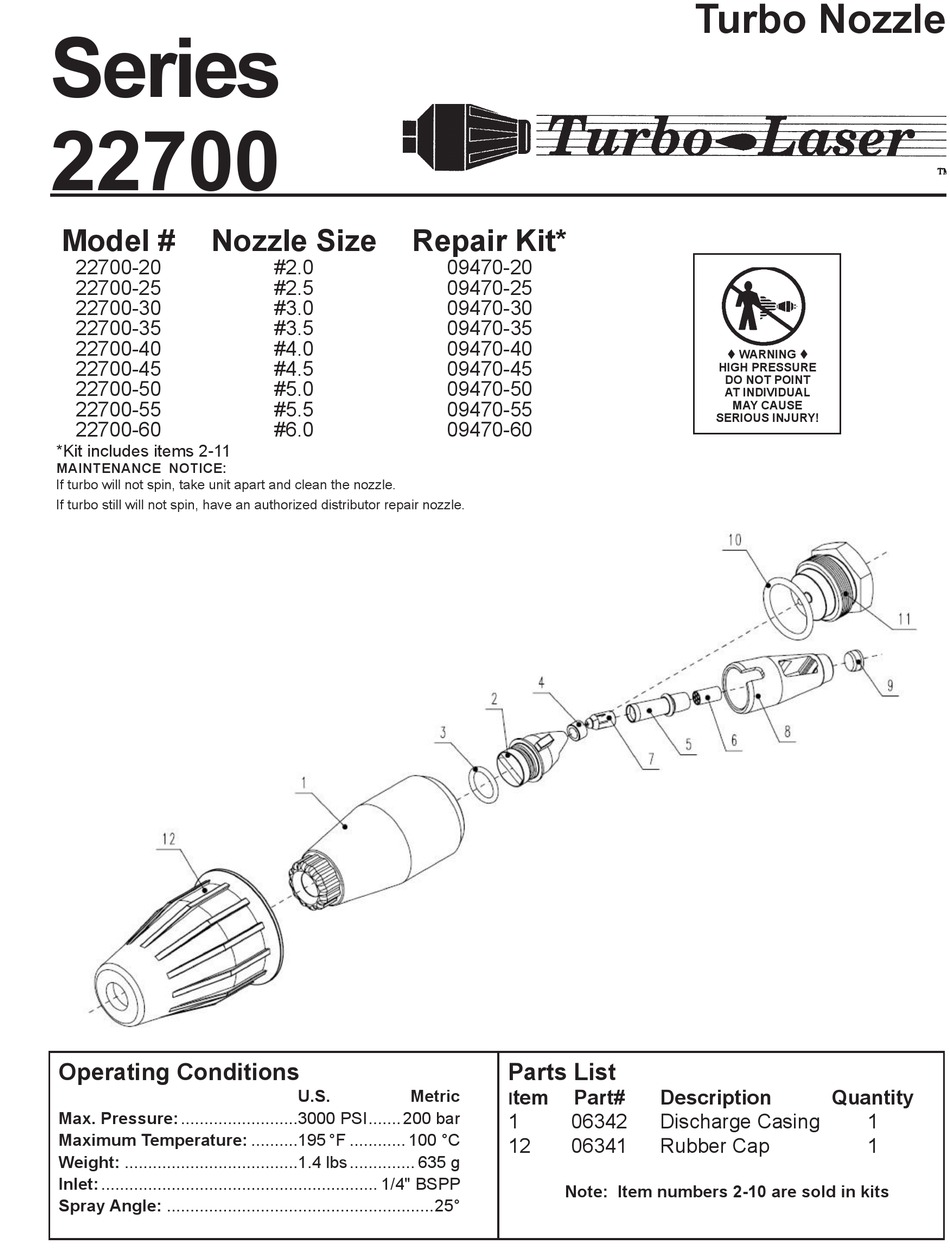

- Page 1 Turbo Nozzle Series 22700 Model # Nozzle Size Repair Kit* 22700-20 #2.0 09470-20 22700-25 #2.5 09470-25 22700-30 #3.0 09470-30 22700-35 #3.5 09470-35 22700-40 #4.0 09470-40 WARNING 22700-45 #4.5 09470-45 HIGH PRESSURE DO NOT POINT 22700-50 #5.0 09470-50 AT INDIVIDUAL 22700-55 #5.5 09470-55...
