Boomerang Cyclotrac V2 User Manual
Hide thumbs
Also See for Cyclotrac V2:
- User manual (23 pages) ,
- Manual (2 pages) ,
- Quick start manual (2 pages)
Related Manuals for Boomerang Cyclotrac V2
Summary of Contents for Boomerang Cyclotrac V2
- Page 1 BOOMERANG CYCLOTRAC V2 (3.0.193 +) USER MANUAL info@boomerangbike.com / © 2021 Boomerang Bike...
- Page 2 Android App iOS App Signing into your Account Using the App Navigating the App Bikes List Trips Menu Settings Trips Trip Recording Starting and Ending Trips Viewing Trips in the App Alarm Alarm Functionality info@boomerangbike.com / © 2021 Boomerang Bike...
- Page 3 Turning the Alarm On and Off Arming the Alarm: Disarming the Alarm: Notes on the Alarm Tracking Your Bike Navigating to Find Bike Find Bike Pane Troubleshooting info@boomerangbike.com / © 2021 Boomerang Bike...
- Page 4 DAMAGE will occur. Keep the rubber protective cover closed except when charging. There are only two holes in the Cyclotrac V2. Do not make more. NEVER puncture, drill, screw into, or cut into the Cyclotrac V2’s casing.
-
Page 5: Device Functions

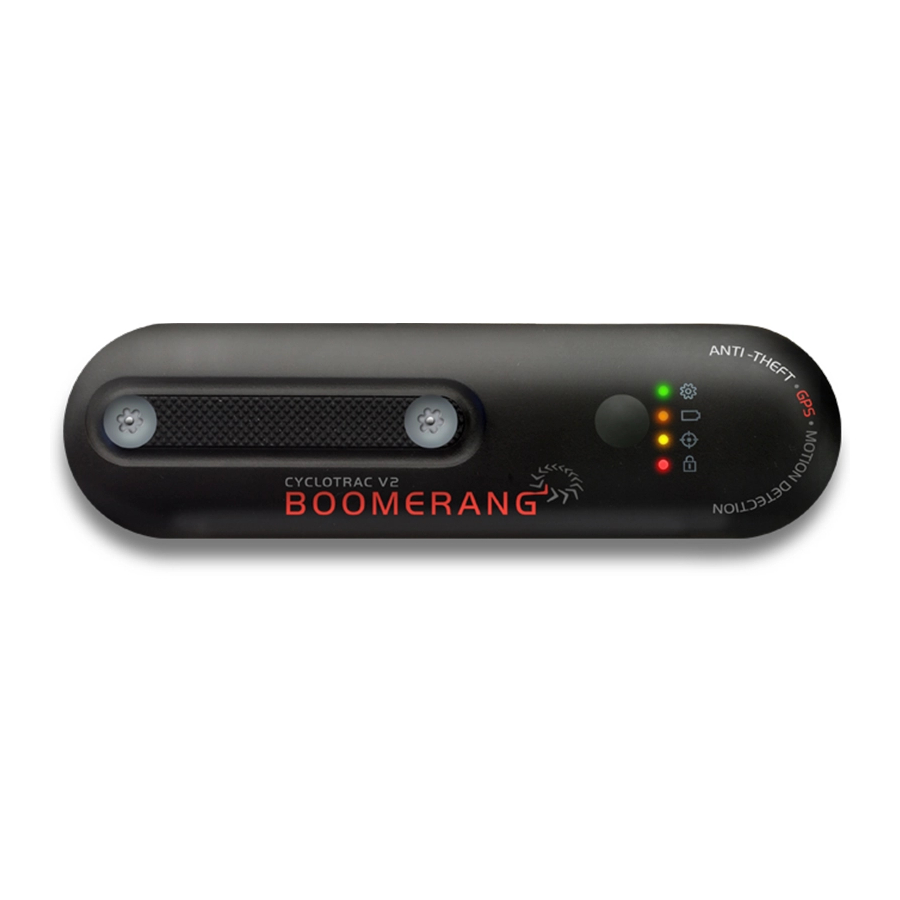

Device Functions Description The Boomerang Cyclotrac V2 combines a real-time GPS tracker with a motion-activated alarm to protect bicycles from theft. The Cylcotrac has few external buttons or switches to make it tamper-resistant. Instead, users control the Cyclotrac over cell networks through a mobile app. - Page 6 Resetting the Cyclotrac The Cyclotrac V2 has a recessed RESET button between the USB port and the rubber cover flap hinge. It requires a thin object, such as a paperclip or SIM key, to push. The RESET switch is intended for occasional use, such as to wake the device from deep sleep, initiate firmware updates, or rescue a locked-up device.
-
Page 7: Sleep Mode
NOTE: The Cyclotrac must be awake to perform most tasks. Sleep mode Sleep mode ensures the Cyclotrac V2 can track continuously without wasting battery when it is stationary. The device enters sleep mode when it detects no movement within the last two minutes. -
Page 8: Indicator Sounds
Indicator Sounds The Cyclotrac communicates through sounds. Their meanings are outlined below. Some customers find that they do not want indicator sounds other than the alarm. Boomerang can provide a command to deactivate indicator sounds at customer request. Description Means... - Page 9 Your Cyclotrac requires a data plan to report its position. You will be given options for the data plan when you begin activation. NOTE: Save a copy of your receipt when you purchase a plan. info@boomerangbike.com / © 2021 Boomerang Bike...
- Page 10 Step 3 - Filling Out the Activation Form Follow the instructions on the activation form to fill in the fields. Boomerang will use the form to create an account and activate the device. Upon receiving the activation form, Boomerang Bike will send an email to the provided address with login information.
-
Page 11: Updating Firmware
Updating Firmware Boomerang periodically releases new firmware to add features and fix bugs. Cyclotracs bought from retail stores may not have the latest firmware. For the best experience, verify that the Cyclotrac’s firmware is up to date. NOTE: Updating firmware is critical to keeping your Cyclotrac running smoothly and up-to-date with all new features. - Page 12 1 second (double-click the button). Confirm that the Cyclotrac is ready for USB upgrade by observing the green light near the gear icon. The green light should smoothly fade on/off. No other lights should be on. info@boomerangbike.com / © 2021 Boomerang Bike...
- Page 13 Connect the Cyclotrac to your computer using the micro-usb cable. Cyclotrac will be detected as a USB disk with the name “BP600BOOT”. Your operating system may automatically install drivers to support the USB disk. This may take up to ~2 minutes. info@boomerangbike.com / © 2021 Boomerang Bike...
-
Page 14: Step 6 - Performing The Firmware Update
After the update, the BP600BOOT disk will disappear and your CycloTrac device will reboot and start running the new firmware. The CycloTrac may flash its lights and beep, this is normal and expected. info@boomerangbike.com / © 2021 Boomerang Bike... -
Page 15: Installing The Mobile App
Installing the Mobile App The Cyclotrac is controlled through Boomerang Bike’s smartphone app. Follow the link or scan the QR codes provided to access the app for your device. NOTE: Approve the application’s requests for access, such as Bluetooth and Notifications Otherwise, the app will not function properly. -
Page 16: Standard Mounting
Removing Existing Screws or Plugs Most bikes come with screws or plugs in the bottle cage studs to prevent moisture and contaminants from entering the frame through the studs. Attaching the Screws Tightening the Screws info@boomerangbike.com / © 2021 Boomerang Bike... -
Page 17: Using The App
Control Panel is where you turn the alarm on and off, start and end trips, and view your bike’s location. See “Tracking”, “Trips”, and “Alarm” for details on how to use the control panel. info@boomerangbike.com / © 2021 Boomerang Bike... -
Page 18: Alarm Functionality
The Trip menu displays previews of recent trips. To view a trip, simply tap on it. It will display ride stats and the route recorded during the trip. Alarm Alarm Functionality The Cyclotrac includes a motion-triggered alarm for theft deterrence. info@boomerangbike.com / © 2021 Boomerang Bike... -
Page 19: Turning The Alarm On And Off
TV to know if the channel actually changed. If the TV doesn’t change the channel, then you push the button again. info@boomerangbike.com / © 2021 Boomerang Bike... - Page 20 Navigating to Find Bike To reach the Find Bike screen, go to the Control Panel of the bike that you wish to track and tap on the “Find Bike” button in the lower left corner. info@boomerangbike.com / © 2021 Boomerang Bike...
- Page 21 Center the map on your location by tapping the crosshair button in the lower right corner. Center the map on the Cyclotrac’s location by tapping the bicycle icon in the lower left corner. info@boomerangbike.com / © 2021 Boomerang Bike...
-
Page 22: Troubleshooting
Outdated location Poor cell signal Ensure the Cyclotrac is in an area with good cell (your Cyclotrac is coverage. Allow several hours for the system to showing a location synchronize. where it has been previously) info@boomerangbike.com / © 2021 Boomerang Bike... - Page 23 Other fault Contact Boomerang (unresponsive) Works only when Battery fault Contact Boomerang plugged in / does not hold battery charge Alarm siren and Blown speaker Contact Boomerang indicator beeps are quiet or garbled info@boomerangbike.com / © 2021 Boomerang Bike...
