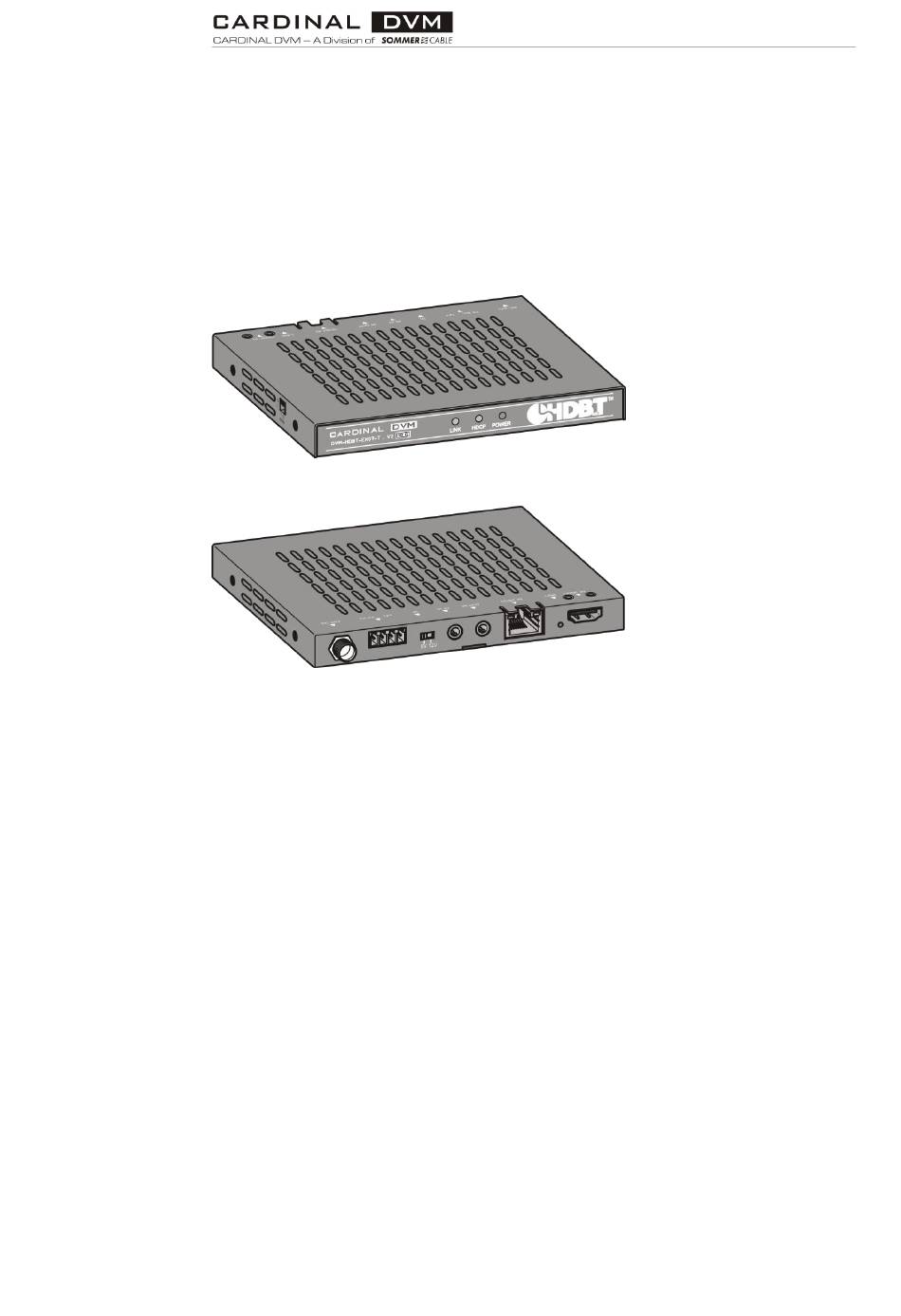

- Page 1 CARDINAL DVM-HDBT-EX07-T CARDINAL DVM-HDBT-EX07-R Instructions English 07/2021...
-
Page 2: Table Of Contents
Table of contents Notices regarding these instructions and the manufacturer ....3 Keep these instructions available ..............3 Design features of these instructions .............. 3 Copyright ......................3 Manufacturer’s address................... 3 Safety ......................4 Intended use ....................4 Basic safety instructions .................. 4 Preventing material damage ................ -
Page 3: Notices Regarding These Instructions And The Manufacturer
These instructions contain information that is subject to copyright. These instructions may not be copied, printed, filmed, processed, duplicated or distributed in any form, either in whole or in part, without the prior written permission of Sommer Cable GmbH. 2021 Sommer Cable GmbH ©... -
Page 4: Safety
Safety Safety Intended use The product is an HDBaseT TX/RX Kit using smart CSC (Color Space Conversion) technology with no latency to enable HDR and 4K/60Hz 4:4:4 video signal extension over HDBaseT. The product is intended for use in closed buildings. Intended use also includes compliance with the accident prevention regulations and the statutory regulations and standards applicable at the place of use. -
Page 5: Personnel Qualification
Description parallel proximity to mains power cables. Shielded TP cables can be used to improve EMI problems, which is worsen in long transmission. Because the quality (AWG and also shielding) of TP cables have a major effect on the transmission length limit and how good the received picture quality is, the actual transmission range is subject to one’s choice of CAT cables ... -

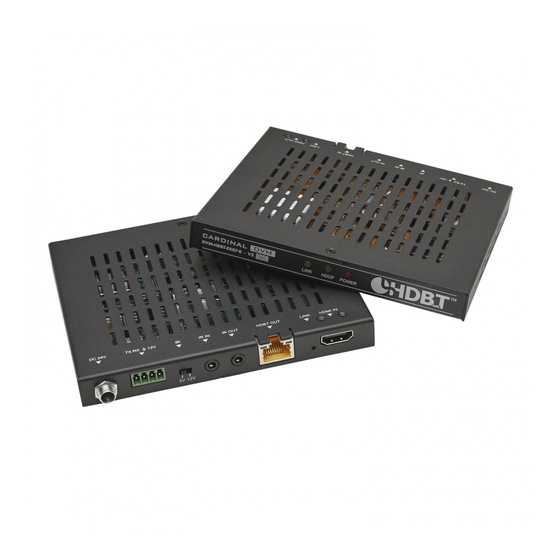

Page 6: Dvm-Hdbt-Ex07-T
Description DVM-HDBT-EX07-T Designation LINK LED indicator Lit green when HDBaseT connecting between TX and RX HDCP LED indicator Lit green when signal with HDCP flash when signal without HDCP off when no source connected Power LED indicator Lit red when getting power Power port (24 V/1A DC adapter to power the unit) RS232 port (x 4-pin phoenix terminal connector) IR selection switch... -
Page 7: Dvm-Hdbt-Ex07-R
Description DVM-HDBT-EX07-R Designation LINK LED indicator Lit green when HDBaseT connecting between TX and RX HDCP LED indicator Lit green when signal with HDCP flash when signal without HDCP off when no source connected Power LED indicator Lit red when getting power Power port (24 V/1A DC adapter to power the unit) RS232 port (x 4-pin phoenix terminal connector) IR selection switch... -
Page 8: Task And Function
Description Task and function The Product is an HDBaseT TX/RX Kit using smart CSC (Color Space Conversion) technology with no latency to enable HDR and 4K/60Hz 4:4:4 video signal extension over HDBaseT. The kit supports standard bi-directional POH (Power over HDBaseT). It provides HDMI transmission up to 230ft (70 m) for 1080p video, and up to 130ft (40 m) for 4K HDR over CAT5e/6a/7 cable, as well as bi-directional IR and RS232 control signals. -
Page 9: Technical Data
Storing and transporting the product Technical data Products: DVM-HDBT-EX07-T DVM-HDBT-EX07-R HDMI Bandwidth 600 MHz/ 6 Gbps 600 MHz/ 6 Gbps HDBaseT Bandwidth 340 MHz/10.2 Gbps 340 MHz/10.2 Gbps Video Input Connectors 1 × HDMI Type A, 19-pin 1 × HDBaseT RJ45 female, locking connector Video output... -
Page 10: Attach The Hdmi Cable
Attach the HDMI cable Attach the HDMI cable Attach the bracket (2) to the product with to screws (1) as shown in the following figure. Fix the HDMI cable with a screw (the screw is not shown). Connecting the product ... -
Page 11: Maintain The Product
In case of doubt, contact your city or municipal administration. Warranty declarations Sommer Cable GmbH grants a manufacturer's warranty of two years from the date of purchase (proof of purchase receipt) on all parts included in the scope of delivery within the scope of legal regulations. Improper handling or incorrect...
