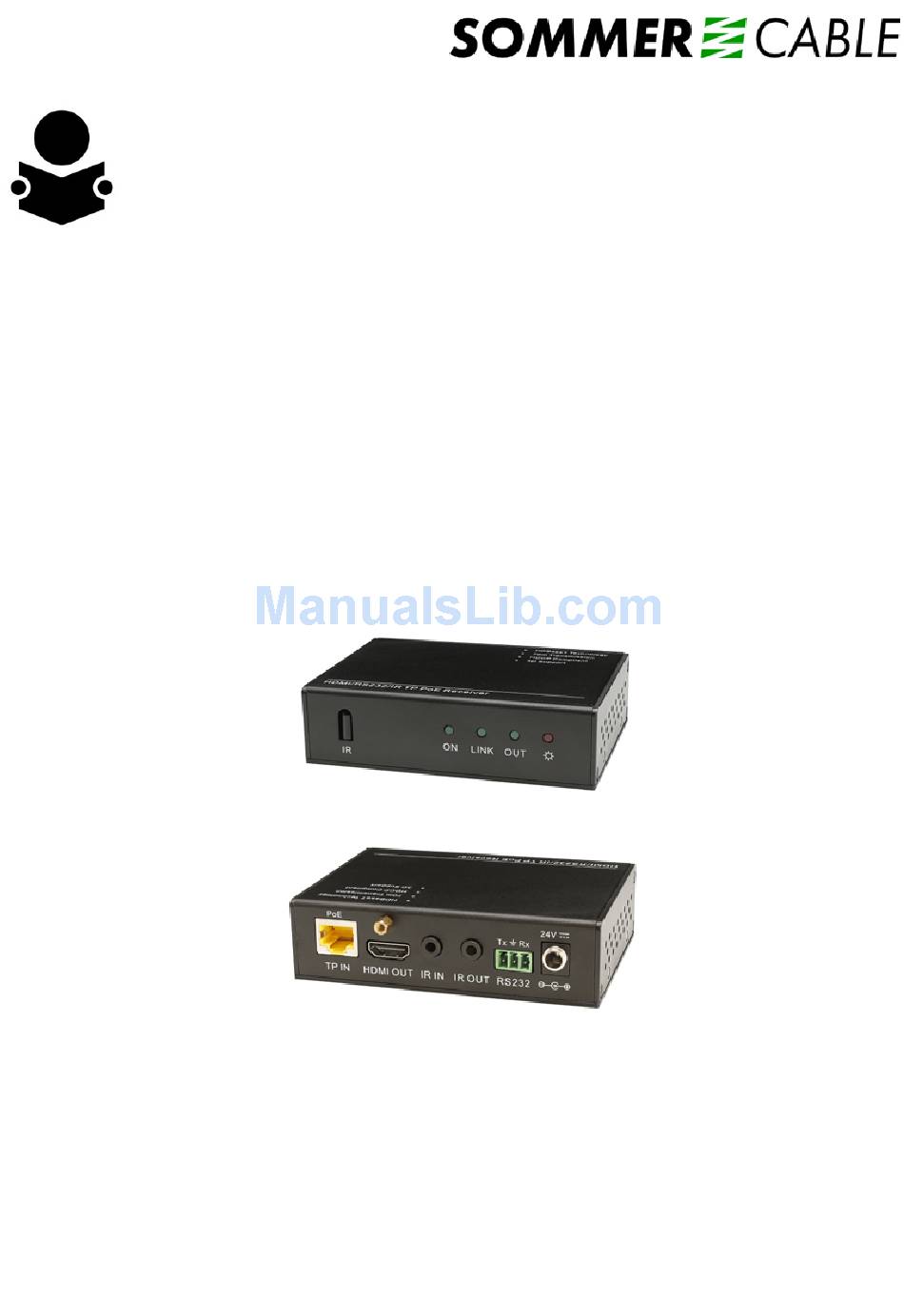

- Page 1 User Manual DVM-HDBT-RXLPOC DVM HDBaseT Receiver 70m PowerOverCable All Rights Reserved Version: DVM-HDBT-RXLPOC_2015V1.0...
-
Page 2: Fcc Statement
HDBaseT Receiver with PoC Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till March 2015. -
Page 3: Safety Precautions
HDBaseT Receiver with PoC SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ... -
Page 4: Table Of Contents
HDBaseT Receiver with PoC Contents 1. Introduction ......................... 1 1.1 Introduction to HDBaseT Receiver ..............1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Product Appearance ....................2 3. System Connection ..................... 3 3.1 Usage Precautions .................... 3 3.2 System Diagram .................... -
Page 5: Introduction
HDBaseT Receiver with PoC 1. Introduction 1.1 Introduction to HDBaseT Receiver HDBaseT Receiver adopts HDBaseT technology to deliver HDMI signal, two-way IR control, bi-directional RS232 data up to 70m with perfect quality. It also supports CEC and PoC. It works well with HDBT transmitters or other devices boasting HDBT OUT port. 1.2 Features ... -
Page 6: Product Appearance
HDBaseT Receiver with PoC 2. Product Appearance Name Description ① Working status indicator, blink when the device is working Twisted Pair link status indicator, illuminates when the port has a ② LINK connection HDCP compliance indicator, illuminate green when the connected ③... -
Page 7: System Connection
HDBaseT Receiver with PoC 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safety. -
Page 8: Application
HDBaseT Receiver with PoC energized with PoC function). 3.4 Application HDBaseT Receiver has a good application in various occasions, such as computer realm, monitoring, big screen displaying, meeting room, education and bank & securities institution etc. 3.5 Twisted Pair Cable Connection The twisted pair used in this extender MUST be a straight-through cable. -
Page 9: Specification
HDBaseT Receiver with PoC 4. Specification Input& Output 1 IR (3.5mm mini jack) Input 1 HDBT (RJ-45) 1 RS232 (3-pin pluggable terminal block) 1 HDMI (HDMI female) Output 1 IR (3.5mm mini jack) 1RS232 (3-pin pluggable terminal block) Video Signal HDMI1.4 Audio Digital audio, transmit through HDMI audio... -
Page 10: Panel Drawing
HDBaseT Receiver with PoC 5. Panel Drawing 110.03 mm 14.00 mm 30.00 mm HDBaseT Technology HDCP Compliant 4K x 2K Support 60m with PoC HDBaseT Lite Receiver/PoC LINK HDBT IN HDMI OUT IR IN IR OUT RS232 6. Troubleshooting & Maintenance Problems Causes Solutions... -
Page 11: After-Sales Service
HDBaseT Receiver with PoC If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. 7. After-sales Service If there appear some problems when running the device, please check and deal with the problems reference to this user manual. - Page 12 SOMMER CABLE GmbH Humboldtstraße 32-36 75334 Straubenhardt / Germany Telefon: +49 (0)7082-49133-0 Support Tel: +49 (0)7082-49133-10 Fax: +49 (0)7082-49133-11 E-Mail: info@sommercable.com Internet: www.sommercable.com...
