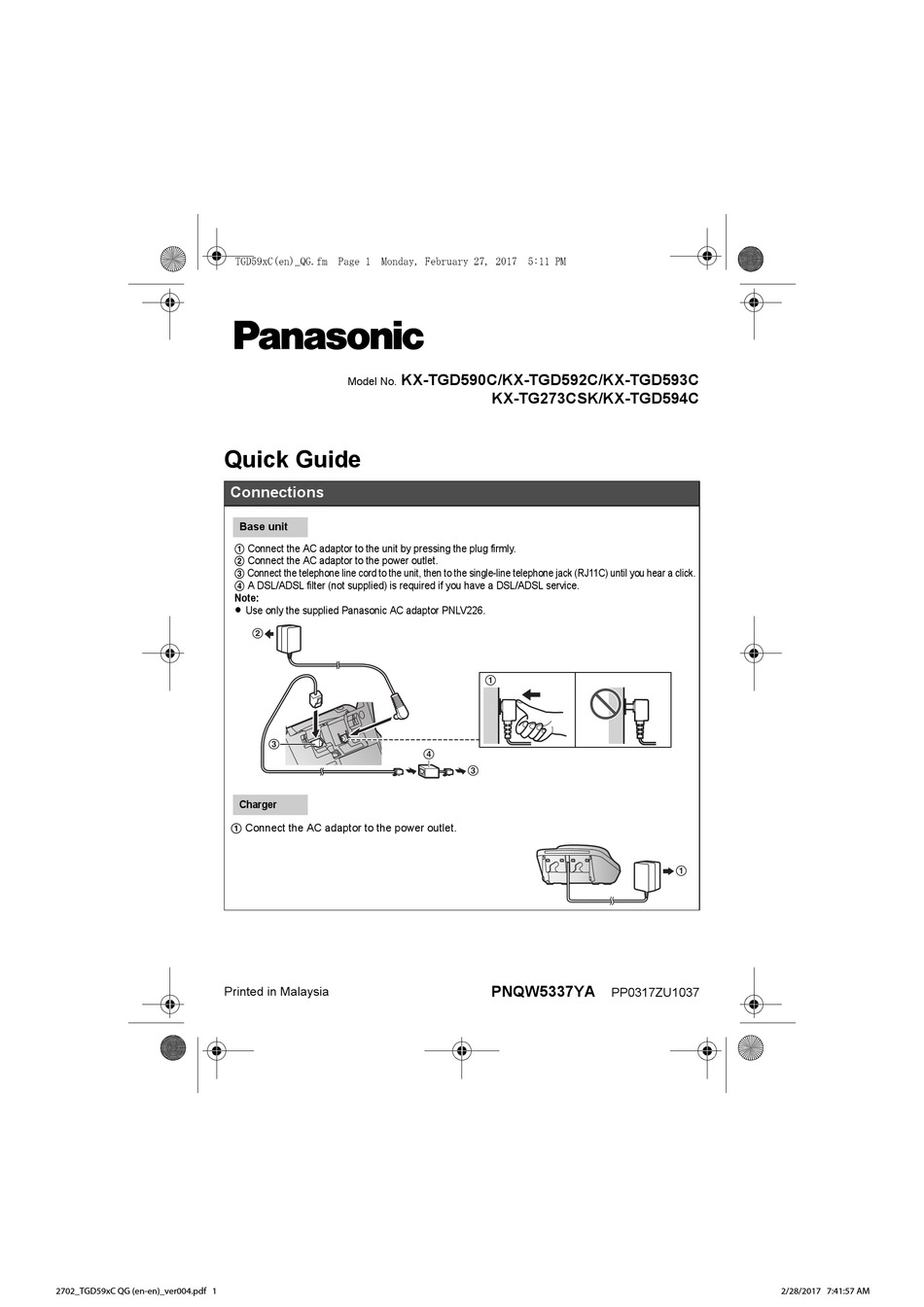

Quick Guide
Printed in Malaysia
2702_TGD59xC QG (en-en)_ver004.pdf 1
TGD59xC(en)_QG.fm Page 1 Monday, February 27, 2017 5:11 PM
KX-TGD590C/KX-TGD592C/KX-TGD593C
Model No.
Connections
Base unit
1 Connect the AC adaptor to the unit by pressing the plug firmly.
2 Connect the AC adaptor to the power outlet.
3 Connect the telephone line cord to the unit, then to the single-line telephone jack (RJ11C) until you hear a click.
4 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service.
Note:
L Use only the supplied Panasonic AC adaptor PNLV226.
2
3
Charger
1 Connect the AC adaptor to the power outlet.
KX-TG273CSK/KX-TGD594C
1
4
3
PNQW5337YA
1
PP0317ZU1037
2/28/2017 7:41:57 AM
Advertisement
Related Manuals for Panasonic KX-TGD590C
Summary of Contents for Panasonic KX-TGD590C
- Page 1 3 Connect the telephone line cord to the unit, then to the single-line telephone jack (RJ11C) until you hear a click. 4 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service. Note: L Use only the supplied Panasonic AC adaptor PNLV226. Charger 1 Connect the AC adaptor to the power outlet.
-
Page 2: Operating Tips
TGD59xC(en)_QG.fm Page 2 Friday, January 6, 2017 4:22 PM Battery installation/Battery charging Charge for about 7 hours. Note: L USE ONLY rechargeable Ni-MH batteries AAA (R03) size ( L Do NOT use alkaline/manganese/Ni-Cd batteries. L Confirm correct polarities (S, T). L Follow the directions on the display to set up the unit. - Page 3 L The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Panasonic Corporation is under licence. L All other trademarks identified herein are the property of their respective owners.
- Page 4 TGD59xC(en)_QG.fm Page 4 Friday, January 6, 2017 4:22 PM Link to cell Pairing a Bluetooth cellular phone Base unit: Press and hold {CELL 1} or {CELL 2} for about 5 seconds. L After the corresponding CELL indicator on the base unit starts flashing, the rest of the procedure must be completed within 5 minutes.
- Page 5 TGD59xC(en)_QG.fm Page 5 Friday, January 6, 2017 4:22 PM Link to cell Connecting/disconnecting the cellular phone (Handset) Auto connection to the Bluetooth devices (cellular phones) The unit connects to the Bluetooth devices at regular intervals if the connection is lost. To change the interval (default: “1 min”), see the operating instructions.
-
Page 6: Basic Operations
TGD59xC(en)_QG.fm Page 6 Friday, January 6, 2017 4:22 PM Basic operations Making/Answering calls (Handset) Making cellular calls Dial the phone number. s {CELL} L When the cellular line only mode is set, you can also press {C}/{s} instead of {CELL}. L When only 1 cellular phone is paired, the unit starts dialing. -
Page 7: Using Bluetooth Devices
TGD59xC(en)_QG.fm Page 7 Friday, January 6, 2017 4:22 PM Basic operations Answering system for the landline (Base unit) Answering on/off Press {ANSWER ON/OFF} to turn on/off the answering system. Listening to messages {P} (PLAY) Answering system for the landline (Handset) Listening to messages To listen to new messages: {PLAY} or {MENU}(323... - Page 8 TGD59xC(en)_QG.fm Page 8 Friday, January 6, 2017 4:22 PM Using Bluetooth devices Using a Bluetooth headset (optional) By pairing a Bluetooth headset to the base unit, you can enjoy hands-free conversations when talking on landline calls. L Only 2 Bluetooth devices can be used with the unit at the same time (for example, 2 cellular lines, or the headset and 1 cellular line *1 You cannot use a Bluetooth headset to talk on a cellular line.
-
Page 9: Frequently Asked Questions
For more information, please visit: unit? www.panasonic.ca/link2cell L Confirm that the Bluetooth feature of your cellular phone is turned on. You may need to turn this feature on depending on your cellular phone. - Page 10 TGD59xC(en)_QG.fm Page 10 Friday, January 6, 2017 4:22 PM Notes – 10 –...
