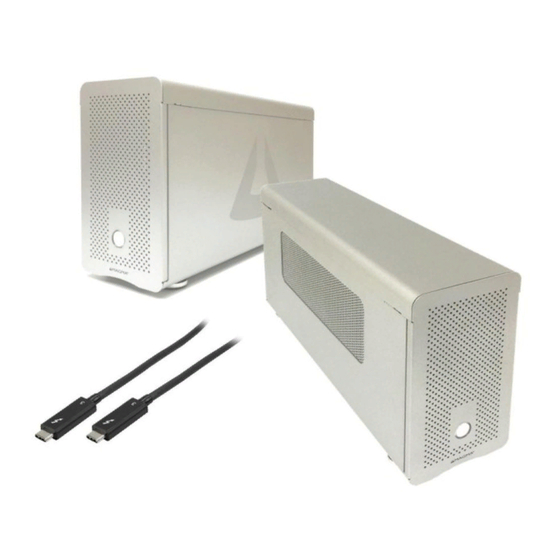

ExpressBox 3T-V3-eGPU
Model:EB3T-V3-eGPU
User Manual
www.onestopsystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExpressBox 3T-V3-eGPU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OSS ExpressBox 3T-V3-eGPU

Summary of Contents for OSS ExpressBox 3T-V3-eGPU

  • Page 1 ExpressBox 3T-V3-eGPU Model:EB3T-V3-eGPU User Manual www.onestopsystems.com...

  • Page 2: Table Of Contents

    One Stop Systems Table of Contents Preface Advisories Safety Instructions Introduction PCI Express Features EB3T-V3-eGPU Features Parts List Specifications Main Components 1.5 Parts of EB3T-V3-eGPU 1.6 Topology 1.7 Dimensions 1.7.2 Enclosure 1.7.3 Interface Card 1.7.3 Backplane 1.7.3 Fan Housing 1.8 Thunderbolt 3 card and Backplane 1.8.1 Power and LED indicators 1.8.2 J1 connector 1.8.3 Backplane...
  • Page 3 One Stop Systems 4.3 Thunderbolt- Aware Driver is required for GPU card 4.2 How to check EB3T-V3-eGPU and GPU card on Windows 10 4.2.1 How to check EB3T-V3-eGPU 4.2.2 How to check GPU card Verify Installation- Hardware 5.1 Hardware 5.2 Thunderbolt™ 3 Interface Card & LEDs NVIDIA GPU Driver installation on Windows Based System 6.1 Install GPU Software 6.2 Quadro GPU Driver Installation Guide...

  • Page 4: Preface

    One Stop Systems Preface Advisories Five types of advisories are used throughout this manual to provide helpful information, or to alert you to the potential for hardware damage or personal injury. NOTE Used to amplify or explain a comment related to procedural steps or text. IMPORTANT Used to indicate an important piece of information or special “tip”...

  • Page 5: Safety Instructions

    One Stop Systems Safety Instructions Always use caution when servicing any electrical component. Before handling the expansion chassis, read the following instructions and safety guidelines to prevent damage to the product and to ensure your own personal safety. Refer to the “Advisories” section for advisory conventions used in this manual, including the distinction between Danger, Warning, Caution, Important, and Note.
  • Page 6 One Stop Systems Protecting Against Electrostatic Discharge Electrostatic Discharge (ESD) Warning Electrostatic Discharge (ESD) is the enemy of semiconductor devices. You should always take precautions to eliminate any electrostatic charge from your body and clothing before touching any semiconductor device or card by using an electrostatic wrist strap and/or rubber mat.

  • Page 7: Introduction

    One Stop Systems Introduction ExpressBox 3T-eGPU provides an 'outside-the-box' solution for housing an external graphics card. Connected to Thunderbolt-equipped computer via Thunderbolt3. High-performance work flows are possible by connecting a Thunderbolt equipped computer to an ExpressBox 3T- eGPU containing GPU card. Designed for professional applications, 3D gaming, VR content creation, video capture, rendering, media transcoding, audio processing, scientific calculations and algorithms.
  • Page 8 One Stop Systems ExpressBox 3T- eGPU | 8...

  • Page 9: Parts List

    One Stop Systems 1.1 Parts List Number Item ExpressBox 3T-eGPU U.S. Standard 110V Power Cord Thunderbolt 3, 1 meter cable (40Gbs) 1.2 Specifications Item Description Technology PCI Express Bus Specification Revision 3.0 PCI Express Bus Specification Revision 2.0 Cable Thunderbolt 3, 1 meter 40Gbs cable. Connector Type: USB-C Backplane 1 Upstream x16 slot 1 Downstream x16 slot...

  • Page 10: Main Components

    One Stop Systems 1.3 Main Components Item OSS Partnumber Description Thunderbolt 3 card 25-059-264-RC Thunderbolt3 card, Gen3 x4 (one port) Backplane 25-059-263-RC 1slot backplane (x16 slot) Power Supply 25-040-083-RC Pwr Sply, 400W, 90-264V, ATX harness, 81.5mm x 150mm x 40.5mm 60-080-021-RC Fan, 80 x 80 x 20mm, 12V, 45.2 CFM, 0.173 in.

  • Page 11: Parts Of Eb3T-V3-Egpu

    One Stop Systems 1.5 Parts of EB3T-V3-eGPU ExpressBox 3T- eGPU | 11...

  • Page 12: Topology

    One Stop Systems 1.6 Topology Number Item Thunderbolt3-Equipped Computer Thunderbolt 3 cable (40Gbs) EB3T-V3-eGPU (Thunderbolt expansion unit) GPU card External Monitors 1.7 Dimensions 1.7.2 Enclosure External enclosure dimension in mm. ExpressBox 3T- eGPU | 12...

  • Page 13: Interface Card

    One Stop Systems 1.7.3 Interface Card Thunderbolt3 internal interface card dimension in mm. ExpressBox 3T- eGPU | 13...

  • Page 14: Backplane

    One Stop Systems 1.7.3 Backplane Backplane / board dimension in mm. 1.7.3 Fan Housing Internal fan housing dimension in mm. ExpressBox 3T- eGPU | 14...

  • Page 15: Thunderbolt 3 Card And Backplane

    One Stop Systems 1.8 Thunderbolt 3 card and Backplane 1.8.1 Power and LED indicators LED#2: +3V3 LED#3: 5V0_ATX LED#4: 3V3_LC LED#5: 0V9_SVR LED5: 0V9_USB  When LED#2 is illuminated, it indicates Thunderbolt 3 enclosure is at standby mode.  When LED#2 through LED#6 are illuminated, it means the Thunderbolt 3 enclosure is ON or the unit is operational. 1.8.2 J1 connector The 3-pin cable from PSU connects to J1 and provides +5VSB power to Thunderbolt 3 card.

  • Page 16: Backplane

    One Stop Systems J1 connector specs 1.8.3 Backplane This is a passive board. It does not have PCIe switch.  Upstream slot: x16 electrical.  Downstream slot : x16 electrical. Amps and watts for the Molex PINOUT Pin Number Wire Color Description Number of Wires / Lines Max Current (amps)

  • Page 17: Power Supply

    One Stop Systems 1.9 Power Supply Item Description Type of Power supply Internal ATX Power Supply Power supply Manufacturer Output Connectors and capability 24 pin ATX connector How many and type connector for Two PCIe 6+2 pin connectors NVIDIA Add-in Card Max Output Power (W) 400W Max Output DC Current (A)

  • Page 18: System Requirements

    One Stop Systems 1.12 System Requirements Read the following requirements. 40Gbs Thunderbolt3 cable (lightning bolt symbol and number 3 printed on the end of the cable connector). Thunderbolt 3-equipped computer (a lightning bolt symbol on the side of the port). Windows 10 Operating System and Mac OS 10.13 + higher.

  • Page 19: Hardware Installation

    One Stop Systems Hardware Installation The following steps will guide you through the installation of your EB3T-V3-EGPU expansion unit. CAUTION Before touching anything inside the enclosure, move to an ESD station and follow proper ESD procedures. Failure to do so may result in electrostatic discharge, damaging the computer or its components.

  • Page 20: Installation On Mac Computer

    One Stop Systems 2.2 Installation on Mac computer Install GPU card Some GPU card manufacturers recommend that you install their software driver prior to installing the card. If this is the case, be sure to install the card driver before connecting ExpressBox 3T- eGPU to the computer. Align the GPU card on the top of the PCIe slot.
  • Page 21 One Stop Systems Connect all external display monitors to the eGPU (AMD GPU). Use appropriate display cables. Check with the manufacturer of the GPU for the proper display cable to use. Attach Power Cord The EB3T-V3-eGPU unit comes with a standard 110v power cord. Connect Thunderbolt 3 Cable Attach the Thunderbolt 3 cable to the ExpressBox 3T- eGPU.
  • Page 22 One Stop Systems When connecting to USB-C port, make sure the port is a true “thunderbolt port”. It should have a Thunderbolt logo printed next to them to identify the ports as Thunderbolt 3 compatible. Connecting to a USB-C port without Thunderbolt 3 capability will not work.

  • Page 23: Installation On Windows Pc

    One Stop Systems 2.3 Installation on Windows PC Install Thunderbolt Software. Go to Software Installation chapter. When done installing the software, firmware and Windows updates, proceed to step 2. Plug in the GPU card into PCIe slot. Slowly push the card down until it is seated firmly into the slot. Secure the GPU card.
  • Page 24 One Stop Systems Connect the power cord to the EB3T-V3-eGPU unit. Connect Thunderbolt3 cable to EB3T-V3- eGPU . Do not connect the other end of the Thunderbolt cable to the Windows Laptop PC yet. Turn ON the Windows PC laptop. Connect the other end of Thunder 3 cable to Windows laptop.
  • Page 25 One Stop Systems After clicking OK, you will get a Windows User Account Control (UAC) popup asking if you “want to allow this app to make changes to your PC?”. Click Yes: After clicking YES, you should see a windows popping up prompting you to approve the Thunderbolt 3 device that was just attached. Click on the drop down menu where it says “Do Not Connect”...

  • Page 26: Proper Fan Settings

    One Stop Systems 11. The GPU card is detected. 12. Install GPU software / driver. For NVIDIA GPU installation. Go to Chapter 6 . 13. When done installing the eGPU software, shutdown the Windows laptop computer completely. 14. Disconnect the Thunderbolt cable from EB3T-V3-eGPU unit. 15.

  • Page 27: Software Installation

    One Stop Systems Software Installation IMPORTANT EB3T-V3-eGPU requires no driver on Apple Mac Operating System and Windows OS and 10. 3.1 Configuring Windows for Thunderbolt This is only applicable for Windows PC. You need to install software, firmware and updates. Make sure the Windows PC is up to date with Windows 10 updates installed (to avoid problems with performance and compatibility).
  • Page 28 One Stop Systems Here is the link to the previous Thunderbolt software by Intel: https://downloadcenter.intel.com/download/23742/Thunderbolt-Intel-Thunderbolt-driver When downloading is completed, do the following:  Select and run Thunderbolt Software.  Welcome to Thunderbolt(TM) Software Setup Wizard pops up, click "I Accept.." ...

  • Page 29: Verify Installation

    One Stop Systems Verify Installation 4.1 How to check EB3T-V3-eGPU and GPU card on Mac OS 4.1.1 How to check EB3T-V3-eGPU This is applicable to Mac OS 10.13 and higher After connecting the EB3T-V3-eGPU hardware, the next step is to verify the installation on Mac. Select and click the Apple logo from the Apple menu Select and click “About This Mac”...

  • Page 30: How To Check Gpu Card Device

    One Stop Systems 4.1.2 How to check GPU card device  Open Apple System Profiler by choosing “About this Mac”  Then, click “System Report”.  Click PCI. You should see the GPU card that is present in the EB3T-V3-eGPU unit. ...

  • Page 31: How To Check Eb3T-V3-Egpu And Gpu Card On Windows 10

    One Stop Systems 4.2 How to check EB3T-V3-eGPU and GPU card on Windows 10 4.2.1 How to check EB3T-V3-eGPU There are two ways to check the attached Thunderbolt 3 device. You can utilize the Windows Device Manager and / or the Thunderbolt Software program.

  • Page 32: How To Check Gpu Card

    One Stop Systems 4.2.1.2 Using Windows Device Manager Go to Device manager>>Select “View”>> Select “View Devices by Connection”>>Select & expand “ACPI x64-based PC”>>Select and expand “Microsoft ACPI-Compliant System>  Select and expand “PCI Express Root Complex”>> You should see multiple instances of PCI Express Root Complex. ...

  • Page 33: Verify Installation- Hardware

    One Stop Systems Verify Installation- Hardware 5.1 Hardware Check the status of the LEDs on the Thunderbolt 3 Interface card and front panel to verify a power-good and link between your host computer and EB3T-V3-eGPU expansion unit. A fully operational EB3T-V3-eGPU expansion system should show the following LEDs illuminated. DESCRIPTION Thunderbolt 3 card LEDs 5 solid green LEDS are illuminated...
  • Page 34 One Stop Systems LED3: 5V0_ATX When EB3T-V3-eGPU enclosure is connected with power source, is connected to the Thunderbolt 3 computer by Thunderbolt 3 cable, and after both the Thunderbolt 3 computer and EB3T-V3-eGPU enclosure are powered on, the LED3 5V0_ATX will light UP indicating that the 400W PSU within EB3T-V3-eGPU is powered on.

  • Page 35: Nvidia Gpu Driver Installation On Windows Based System

    One Stop Systems NVIDIA GPU Driver installation on Windows Based System Setup the Magma EB3T-V3-eGPU device with your host computer first without the GPU installed. Install Thunderbolt Software. Next is, install GPU card hardware Install eGPU software / driver Verify installation Required host system specifications for Quadro eGPU.
  • Page 36 One Stop Systems The driver is available on nvidia.com, just select QNF driver in the download type section and you should find 385.12 Required host system specifications for Quadro eGPU.  OS: Windows 10 (RS2)  I/O: Thunderbolt 3 Port ...

  • Page 37: Amd Radeon™ Software Installation On A Windows® Based System

    One Stop Systems AMD Radeon™ Software Installation on a Windows® Based System This section provides instructions on how to install Radeon™ Software on a Windows® based system. The content of this article is organized into the following sections: System Requirements Downloading Radeon Software Installing Radeon Software System Requirements...
  • Page 38 One Stop Systems Clean Install removes all prior versions of AMD graphics driver from the system. This prevents rolling back to a previously installed driver version (via Device Manager) but can resolve most corrupt driver installation problems. Note: Since the system will be forced to reboot as part of clean installation, save any unsaved work before proceeding. The software and driver installation will begin after clicking on Express Install, or Install/Clean Install within the Custom Install screen Once the driver installation is complete, an option to install Radeon™...

  • Page 39: Troubleshooting And Faqs

    One Stop Systems Troubleshooting and FAQs Q. Can I use a standard USB-C cable for TB3 device? Will the USB-C cable works with Thunderbolt 3 device? A. No, you cannot use a standard USB-C cable, it willnot initialize / power-up the TB3 device. You must use a true TB3 cable. Use a cable with Thunderbolt logo and 3 symbol.
  • Page 40 One Stop Systems Q. My GPU card is no longer working. A. Follow the steps below: First, check if there are five Solid Green LEDs illuminated on the Thunderbolt card. Check if the front Blue LED is ON / illuminated. If all LEDS are verified working, this means the EB3T-V3-eGPU has powered UP ok.
  • Page 41 One Stop Systems Q: How do I know if ExpressBox 3T- eGPU power supply is working? A: If the Thunderbolt card is properly seated and connected, you should see five solid green LEDs (shown) illuminated on the Thunderbolt 3 card and a solid blue LED illuminated on the front of the unit. Q.
  • Page 42 One Stop Systems Q: How do I check on Mac OS if the Thunderbolt 3 cable is rated as 40Gbs or 20Gbs? A: Go to Apple System Profiler>>Select and expand “Hardware”>>Select “Thunderbolt”. Look for EB3T-V3-eGPU , it should show the “Speed” Up to 40 Gb/s X1.
  • Page 43 One Stop Systems Once open you can find the program sitting in the system tray. You may need to click the caret (up arrow icon) to show all of the running programs then right click on the Thunderbolt icon it and select Settings: Now you should see the settings window.
  • Page 44 One Stop Systems If a Thunderbolt device is not connected to the system, the information about the NVM firmware may not be available within the utility Q: Can I use the Thunderbolt 3 interface card from EB3T-V3 and replace the current Thunderbolt3 interface card in the EB3T-V3-eGPU ? A: NO.
  • Page 45 One Stop Systems Q: Do I need install software / driver for the EB3T-V3-eGPU on Windows 10 PC? A: The EB3T-V3-eGPU requires no software / driver. However, you need to install the Thunderbolt Software for the laptop to communicate with the EB3T-V3-eGPU expansion unit.
  • Page 46 One Stop Systems Q. What GPU cards can I use with the EB3T-V3-eGPU on Windows 10 OS? A: You can use AMD or NVIDIA GPUs. See list below for tested GPU cards. TITAN Xp GP100 RX 580 WX 9100 TITAN X (Pascal) P6000 RX 570 WX 7100...
  • Page 47 One Stop Systems Q. How can I identify a Thunderbolt 3 cable? A: Thunderbolt 3 cable uses the USB-C connector. It is reversible and identical on both ends. It has the Thunderbolt icon and the number 3 on the connector. See the image below. Q.
  • Page 48 One Stop Systems A. The Charging Cable comes with Macbook Pro. Check with Apple's product description. This is 2-meter charge cable — with USB-C connectors on both ends and is ideal for charging USB-C devices, and also supports USB 2 for syncing and data transfer between USB-C devices. This cable only can support USB 2 speed.
  • Page 49 One Stop Systems Q: Is the EB3T-V3-eGPU compatible with all Thunderbolt 3 Windows PCs? A: No, not all Thunderbolt 3 computers support external GPUs. Please contact the manufacturer of your computer. You can also check the Thunderbolt software on your computer as seen below. Right-click on the Thunderbolt icon in your taskbar.
  • Page 50 One Stop Systems Q. Can I plug-in a Thunderbolt3-to-Thunderbolt2 adapter on to the port of the EB3T-V3-eGPU and will it work? A. No, do not plug in the Thunderbolt3-to-Thunderbolt2 adapter, it will not work. The EB3T-V3-eGPU will not operate / initialize . It may not detect the GPU installed in the expansion unit Q.

  • Page 51: Fan Removal & Installation

    One Stop Systems Fan Removal & Installation Power down the unit first. Disconnect the power. Remove the GPU card in the enclosure. Remove the three mounting screws  Lay the side of the unit on a sturdy surface.  Use a Philipp screwdriver to remove the screws. ...
  • Page 52 One Stop Systems  Loosen the four mounting screws to adjust the fan to its desired location (from left to right; right to left). Tighten up the screw to secure the fan.  Reconnect the fan power cable to the board. ...

  • Page 53: How To Check Firmware

    One Stop Systems How to Check Firmware 10.1 Checking Firmware on Windows 10 Download the zip file onto the Windows OS desktop of your Thunderbolt 3 laptop. Go to EB3T-V3-eGPU online product page to download the zip file. Uncompress the zip file, and then you will see four files including the firmware update tool and the firmware bin file. 1.

  • Page 54: Checking Firmware On Mac Os (10.13 And Above)

    One Stop Systems 10.2 Checking Firmware on Mac Os (10.13 and above) Connect the EB3T-V3-eGPU Power UP the Mac Book or Mac computer Plug in the Thunderbolt cable to Mac Book or Mac computer Plug in the other end of the Thunderbolt cable to EB3T-eGPU Click the Apple Logo, click “About This Mac”.

  • Page 55: How To Update Firmware

    One Stop Systems How to Update Firmware 11.1 How to Update Firmware on Windows 10 Download the FW_Windows.zip file onto the Windows OS desktop of your Thunderbolt 3 laptop. Uncompress the zip file, and then you will see four files including the firmware update tool and the firmware bin file. Make sure the EB3T-V3-eGPU is connected to your Thunderbolt 3 laptop via Thunderbolt 3 cable.
  • Page 56 One Stop Systems Uncompress the zip file, and then you will see four new files after unzipping. Copy the four new files to the USB pen drive and then shut down MacBook Pro. Press the power button of MacBook Pro. Just right after pressing MacBook Pro's power button, hold option key to MacBook Pro keyboard until it shows the drive selection screen, and select the right most icon EFI Boot to enter the EFI mode.

  • Page 57: How To Get More Help

    One Stop Systems How to Get More Help You can visit the Technical Support FAQ pages on the Internet at: https://www.onestopsystems.com/support 12.1 Contacting Technical Support Our support department can be reached by fax at (858) 530-2733 or by phone at (858) 530-2511. Support is available Monday through Friday, 8:00 AM to 5:00 PM PT.

  • Page 58: Appendix A Compliance

    One Stop Systems Appendix A Compliance NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 59 OSS MANUAL PN: 98-000-002-RC MFG: OSS MFG PN: UM-EB3T-V3-eGPU...
