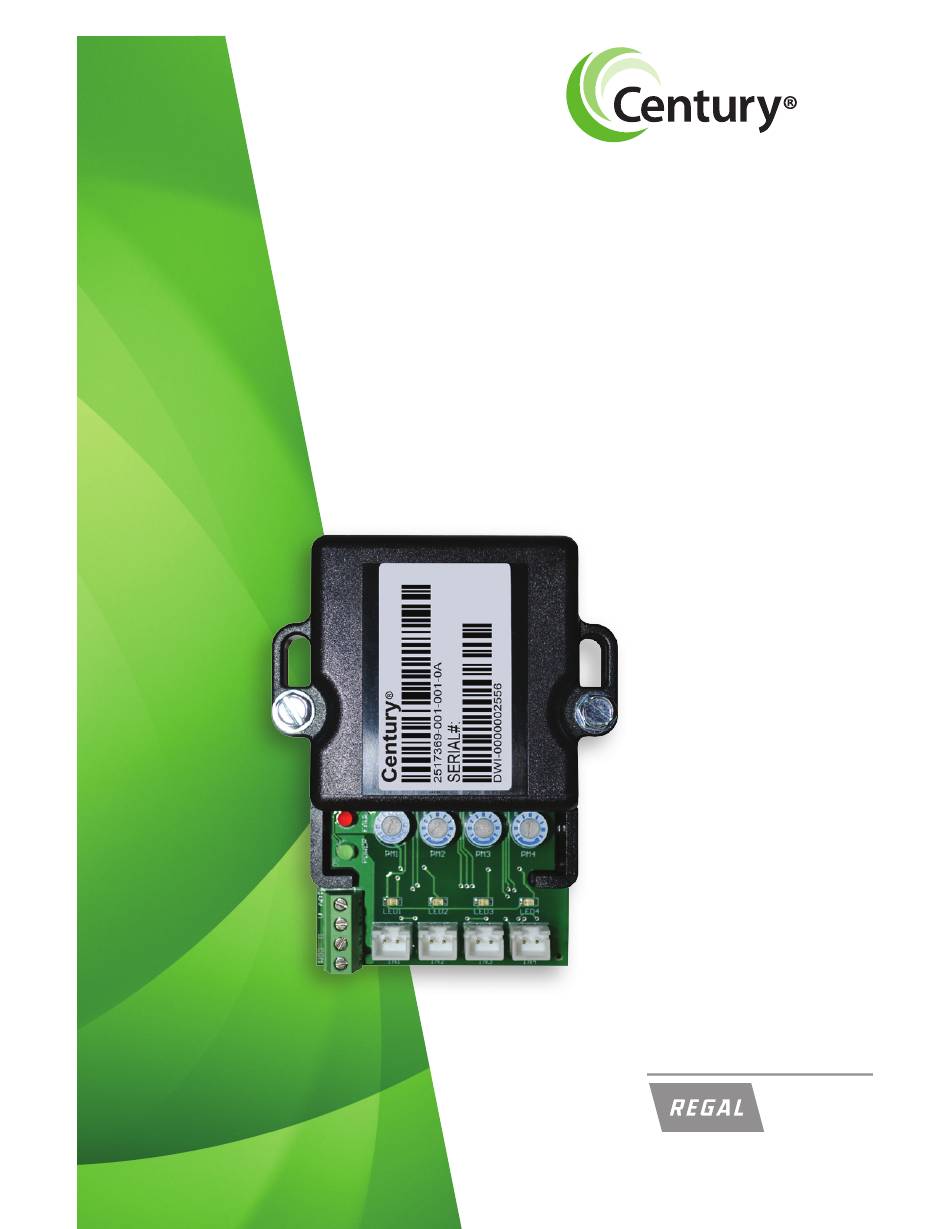

- Page 1 V-Green Automation Adapter Kit Installation Manual and User’s Guide For use with Century® V-Green Variable Speed Motors A Regal Brand...
- Page 2 COPYRIGHT Copyright 2013, Regal Beloit America, Inc., Tipp City, Ohio. All rights reserved. TRADEMARKS All trademarks and registered trademarks® are the property of their respective companies. The information in this document incorporates proprietary rights and is not to be duplicated wholly or in part without the express written permission of Regal Beloit Corporation and / or Regal Beloit America, Inc.
-
Page 3: Table Of Contents
Contents Kit Contents ..................3 Introduction ..................4 Overview ..................4 Connecting to a V-Green motor .............6 Connecting to an alternate power source ........13 Connecting to an automation system...........14 - Using automation system output connectors ......14 - Using automation system relays ...........15 ˃... - Page 4 SAFETY Safety is emphasized throughout this user manual. These are safety alert sym- bols and signal words. They alert the user to potential personal injury hazards. Obey all safety messages to avoid possible injury or death or damage to equip- ment and other property.
-
Page 5: Kit Contents
KIT CONTENTS PART PART NUMBER Automation 2517369-001 Adapter Digital Input Cable 2517463-001 Lead Cable 2517465-001 25 FT RS-485 Connecor 2511130-001 Conduit Fitting 2017587-002 Terminal Box Cover 2513409-001 (Grey) Assembly 2513409-002 (Black) Plug 2514059-001 Screw Driver 2517831-001... -
Page 6: Introduction
INTRODUCTION The V-Green Automation Adapter provides the ability to operate a V-Green motor with a 3rd party automation system such as the Hayward Goldline Pro Logic, Pentair Easytouch, Jandy Aqualink, and Intermatic controls. This will allow the user to control and experience the full variable speed capability of a V-Green product through an existing automation system. - Page 7 Power/ RS-485 Input CON1: Figure 3 Digital Inputs: IN1, IN2, IN3, IN4: 9-30 VAC/VDC (2mA Typical, 22mA MAX) Connect to relay coil or valve control of automation system. PWM IN1 ONLY: 70-125Hz 5-97 % Duty Cycle Figure 4...
-
Page 8: Connecting To A V-Green Motor
CONECTING TO A V-GREEN MOTOR The automation adapter must be wired according to the locally adopted version of the NEC. A licensed, qualified electrician should complete the wiring for this product. Failure to comply with this may result in death, serious personal injury or property damage. - Page 9 Remove the 3/8” conduit hole plug with a 5/16” Allen wrench. Figure 6: 3/8” Conduit Hole Plug Removed Remove the plastic wiring cover inside the terminal box (one screw). Figure 7: Internal Plastic Cover Removed...
- Page 10 Disconnect the 4-pin communication connector (J103) by pulling up on the connector. Figure 8: Communication Connector Disconnected Remove the User Interface from the controller (4 screws). Figure 9: User Interface and Rubber Gasket Removed...
- Page 11 Install the Conduit Fitting (PN: 2017587-002), turning until snug. Figure 10: Conduit Fitting Installed Route the cable (PN: 2517465-001) through the conduit fitting, and install to the J103 connector (PN: 2511130-001) on the cable. See the wiring diagram. Tighten the seal nut on the conduit fitting until snug. WHITE GREEN BLACK...
- Page 12 DIP Switches: Dip switches one and two of the V-Green motor need to be on in order for the automation adapter to function. REFER TO THE V-GREEN MOTOR USER MANUAL FOR DIP SWITCH POSITIONING. Replace the plastic cover inside the terminal box (one screw). Figure 13: Plastic Cover Installed in Terminal Box Attach New Gaskets to new terminal box cover.
- Page 13 Assemble the new metal terminal box cover (2 screws). Plug the four User Interface mounting holes with the plastic clips (PN: 2514059-001). Mounting Holes (4X) Figure 15: Terminal Box Cover and Clips Installed...
- Page 14 Mount the automation adapter inside of the automation system control box using double sided mounting tape supplied on the back of the adapter. Place unit so that the orientation of the input connectors are downward. NOTE: Automation adapter wiring is all low voltage; choose a mounting location away from all high voltage wiring.
-
Page 15: Connecting To An Alternate Power Source
Connect the 4 wires from the motor to the automation adapter. Figure 17: Motor Connected to Adapter Connecting to an alternate power source If you choose not to power the automation adapter from the V-Green motor, (J103 low voltage power supply) the automation adapter can be powered from any 10-14 VDC alternate power supply. -
Page 16: Connecting To An Automation System
CONNECTING TO AN AUTOMATION SYSTEM Access to the connections referenced in the diagrams and instructions below could be in close proximity to mains connections which carry line voltage capable of causing personal injury or damaging the equipment if contact is made. Power should be turned off when accessing these areas. -
Page 17: Using Automation System Relays
Using automation system relays Connecting to Input (i.e. Low Voltage) side of Relays Connect IN1 to Relay 1 or any relay from the Automation System. Repeat this for IN2, IN3, and IN4 using different automation system relays for each input. Figure 20: Automation adapter connected to automation system using the automation system relays... -
Page 18: Connecting To Output Side Of Relays
Connecting to Output (i.e. High Voltage) side of Relays Output Signal Powered by Automation Adapter From the 10V connection of the automation adapter board (CON1), run a wire to the input on desired relays. Run the output of the relay to the right pin of an input on the automation board. - Page 19 Output Signal Powered by Alternate Power Source From an alternate power supply (9-30 VAC/VDC), run a wire from the positive side of the power source (DC+) to the input on the desired relays. Run the output of the relay to the right pin of an input on the automation board. (IN1- IN4) Connect IN1-IN4 left pin with the common (DC-) of the alternate power source.
-
Page 20: Operating A V-Green Automation Adapter
OPERATING A V-GREEN AUTOMATION ADAPTER Adjusting motor speed: Figure 23: Automation adapter board The motor speed for each input can be set independently. To do this, using the screw driver provided, turn the potentiometer clockwise or counterclockwise. Clockwise increases the speed and counterclockwise decreases the speed. The speed ranges from 600-3450 RPM. -
Page 21: Fault Status
FAULT TABLE Fault LED Behavior Definition Potential Solutions No Error Flash 1 Time No Response Check Communication Connections (RS-485) Flash 2 Times Data Error Flash 3 Times CRC Error Flash 4 Times Low input voltage Check Power Connection and verify that there is a 10 VDC input Flash 5 Times Motor Fault... -
Page 22: Specifications
SPECIFICATIONS OVERALL RATINGS Input (CON1) 10-14 VDC (30mA Typical) Aux Inputs (IN1 - IN4) 9-30 VAC/VDC (2mA Typical, 22mA MAX) - PWM Input (IN1 Only) 70-125Hz 5-97 % Duty Cycle Ambient Conditions Storage -30°C to 80°C (-22°F to 176°F) Operating 0°C to 50°C (32°F to 122°F) Humidity 0-85% Non-Condensing... - Page 23 Regal Beloit America, Inc. ©Copyright 2013. The text and images in this document are not to be modified without express written permission of Regal Beloit Corporation and / or Regal Beloit America, Inc. Regal Beloit America, Inc. 531 North Fourth Street...
- Page 24 Regal Beloit America, Inc. 1325 Heil Quaker Blvd. LaVergne, TN 37086 Phone: (866) 887-5216 A Regal Brand Fax: (800) 468-2062 www.pool-motors.com © 2013 Regal-Beloit Corporation 2730 6/2013...
