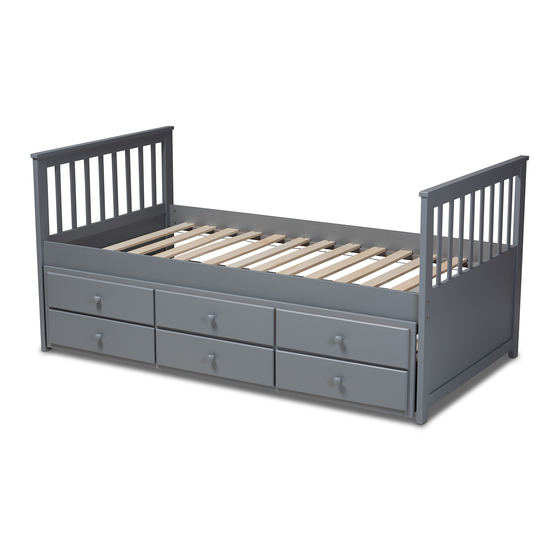

1

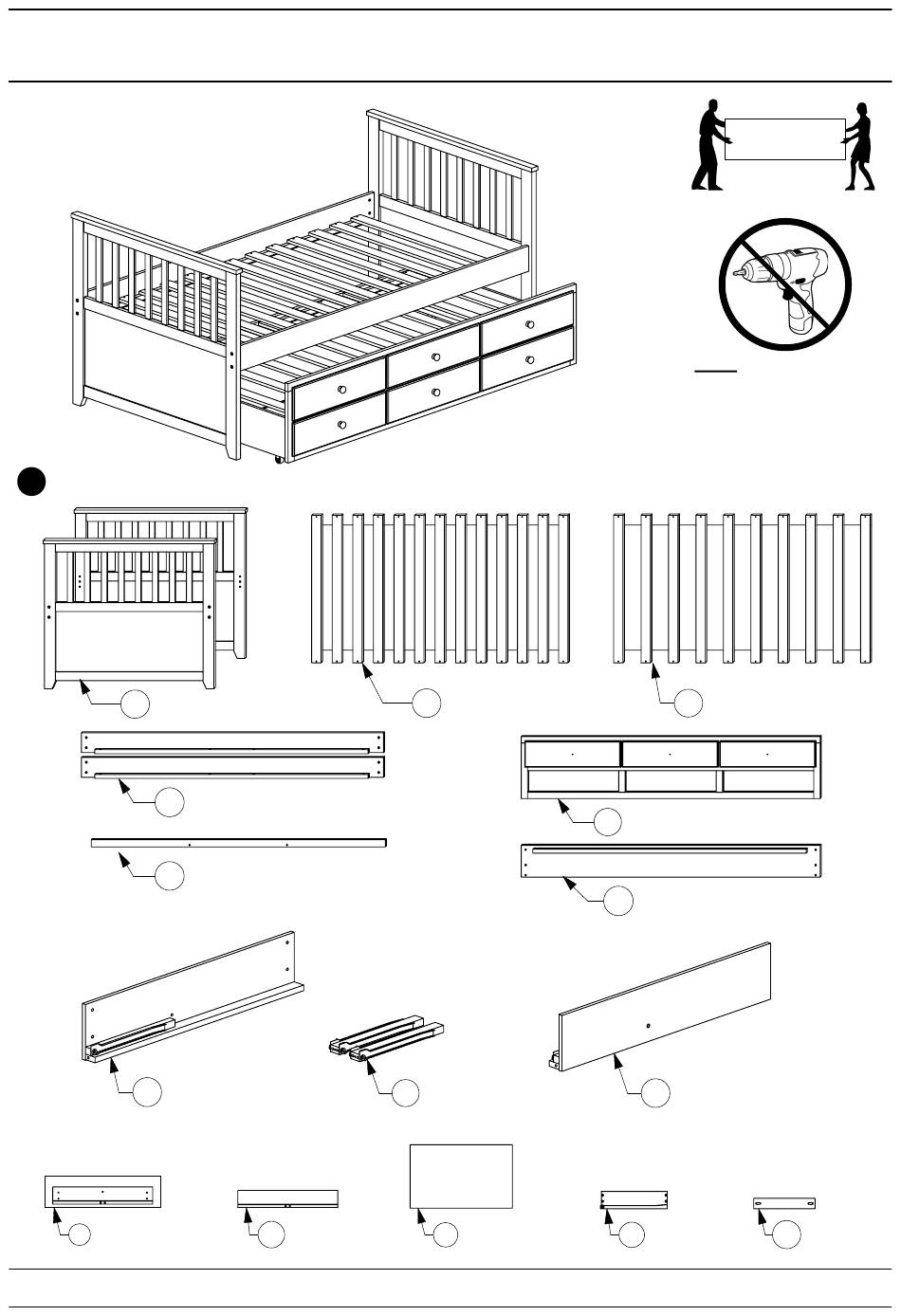

Parts List

A
Head/Footboard x 2
C
Side Rail x 2
D
Support Rail x 1
Trundle Side Panel
H
(Left Hand) x 1
Drawer
L
Face x 3
Bed
Assembly Instructions
B
Support
J
(Middle) x 2
Drawer
M
Back x 3
Bed Slats x 1
F
Drawer
N
Bottom x 3
Use 2 People
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
E
Trundle Slats x 1
Trundle Front Panel x 1
G
Trundle Rear Panel x 1
Trundle Side Panel
K
(Right Hand) x 1
Drawer
P
O
Side x 6
WII-0419
Drawer
Rail x 3
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bed MG8005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baxton Studio Bed MG8005

  • Page 1 Assembly Instructions WII-0419 Use 2 People Note: Do not assemble using power tools. This can cause the bolts to be overtightened Parts List Bed Slats x 1 Trundle Slats x 1 Head/Footboard x 2 Side Rail x 2 Trundle Front Panel x 1 Support Rail x 1 Trundle Rear Panel x 1 Trundle Side Panel...
  • Page 2 Assembly Instructions WII-0419 Hardware List M6 x 70mm JCB M6 x 60mm JCB M6 x 40mm JCB M6 x 15mm JCB x 14 x 16 Wood Dowel Wood Dowel Wood Dowel Barrel Nut (10 x 40mm) x 4 (8 x 30mm) x 10 (6 x 25mm) x 12 Wood Screw Wood Screw...
  • Page 3 Assembly Instructions WII-0419 Assemble the Drawer Sides (O) and Drawer Rail (P) to the Drawer Back (M). Make sure the small wheels on the Drawer Sides (O) are next to the Drawer Back (M). Important: Assemble the small wheels at the back Slide the Drawer Bottom (N) into the groove on the Drawer Sides (O).
  • Page 4 Assembly Instructions WII-0419 Assemble the Side Rail (C) to the assembled Headboard / Footboard Panel (A). Use 2 People Screw the Bed Slats (B) between the Side Rail (C). Page 4 of 7...
  • Page 5 Assembly Instructions WII-0419 Assemble the Metal Bracket (13) & Wood Dowels (6) to the Left & Right hand Trundle Side Panel (H & K). Attach the Supports (J) to the Support Rail (D) using 40mm JCBs (3). Fit the Support Rail (D) to the Left & Right hand Trundle Side Panel (H & K) using Wood Dowels (6) and 60mm JCBs (2).
  • Page 6 Assembly Instructions WII-0419 Assemble the Left & Right hand Trundle Side Panel (H & K) & Support (J) to the Trundle Front Panel (F). Bolt the Left & Right hand Trundle Side Panel (H & K) to the Trundle Rear Panel (G). Page 6 of 7...
  • Page 7 Assembly Instructions WII-0419 Assemble the Trundle Slats (E) to the Trundle Front Panel (F) & Trundle Rear Panel (G). Finally, fit the assembled Drawers. Fit the Wooden Knobs (15) onto Trundle Front Panel (F) Finally, fit the assembled Drawers. Assembled Drawer Page 7 of 7...
