Baxton Studio King Bed 0013 Assembly Instructions Manual

Hide thumbs Also See for King Bed 0013:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
1

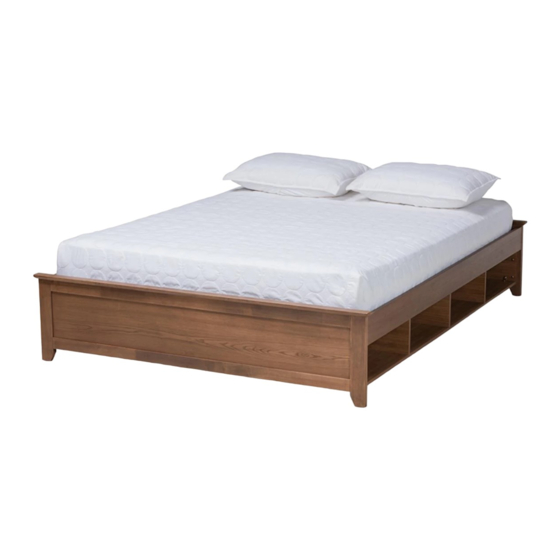

Assembled View
2
Parts List
Parts in Box A:
A
Head / Footboard x 2
B
Storage Bottom Panel x 2
C
Storage Back Panel x 2
D
Storage Support Rail x 4
Parts in Box B:
J
Side Rail x 2
K
Long Support x 2
0013 King Bed
Assembly Instructions
This can cause the bolts
E
Storage Side Panel
(Left Hand) x 2
G
Storage Divider
x 6
L
Support Leg
x 6
WII-0919
Use 2 People
Note: Do not assemble
using power tools.
to be overtightened
F
Storage Side Panel
(Right Hand) x 2
H
Storage Foot
x 4
M
Set of Bed Slats x 1
Page 1 of 8

Advertisement

loading

Related Manuals for Baxton Studio King Bed 0013

Summary of Contents for Baxton Studio King Bed 0013

  • Page 1 0013 King Bed Assembly Instructions WII-0919 Assembled View Use 2 People Note: Do not assemble using power tools. This can cause the bolts to be overtightened Parts List Parts in Box A: Head / Footboard x 2 Storage Side Panel Storage Side Panel (Left Hand) x 2 (Right Hand) x 2...

  • Page 2: Hardware List

    0013 King Bed Assembly Instructions WII-0919 Hardware List M4 Allen Key Center Rail 'L' Bracket Adjustable Barrel Bracket x 4 Foot x 6 Nut x 6 Wood Screw Wood Screw Wood Dowel Spring Flat Washer (M4 x 16mm) x 14 (M4 x 32mm) x 18 (M8 x 30mm) x 8 Washer x 8...
  • Page 3 0013 King Bed Assembly Instructions WII-0919 Fit the Center Rail Bracket to the Head / Footboard (A). Short Tab of Metal Bracket (2) Fit the 'L' Bracket (3) to the End of the Storage Bottom Panel (B) with M6 x 15mm JCB (12). Tap the Wood Dowel to the end of the Storage Support Rail (D).
  • Page 4 0013 King Bed Assembly Instructions WII-0919 Assemble the Storage Bottom Panel (B) & Support Rail (D) to the Storage Divider (G). Assemble the Storage Side Panel (E & F) to the Storage Bottom Panel & Support Rail (B & D). Back Page 4 of 8...
  • Page 5 0013 King Bed Assembly Instructions WII-0919 Fit the Storage Foot (H) to the Storage Bottom Panel (B). Back Slide the Storage Back Panel (C) into the groove. Back Page 5 of 8...
  • Page 6 0013 King Bed Assembly Instructions WII-0919 Fit the Storage Back Panel (C) in place. Back Assemble the Side Rail (J) to the Head / Footboard (A). Page 6 of 8...
  • Page 7 0013 King Bed Assembly Instructions WII-0919 Bolt the Long Support (K) to the Center Rail Brackets on the Head / Footboard (A). Bolt & screw the Bed Slats (M) to the Side Rail (J). Page 7 of 8...
  • Page 8 0013 King Bed Assembly Instructions WII-0919 Fit the Assembled Storage under the Bed Frame. Assembled Storage NOTE: Open shelves facing outside! Assembled Storage NOTE: Open shelves facing outside! Bolt the Assembled Storage to the Bed Frame with M6 x 30mm JCB (14). Assembled Storage Page 8 of 8...
