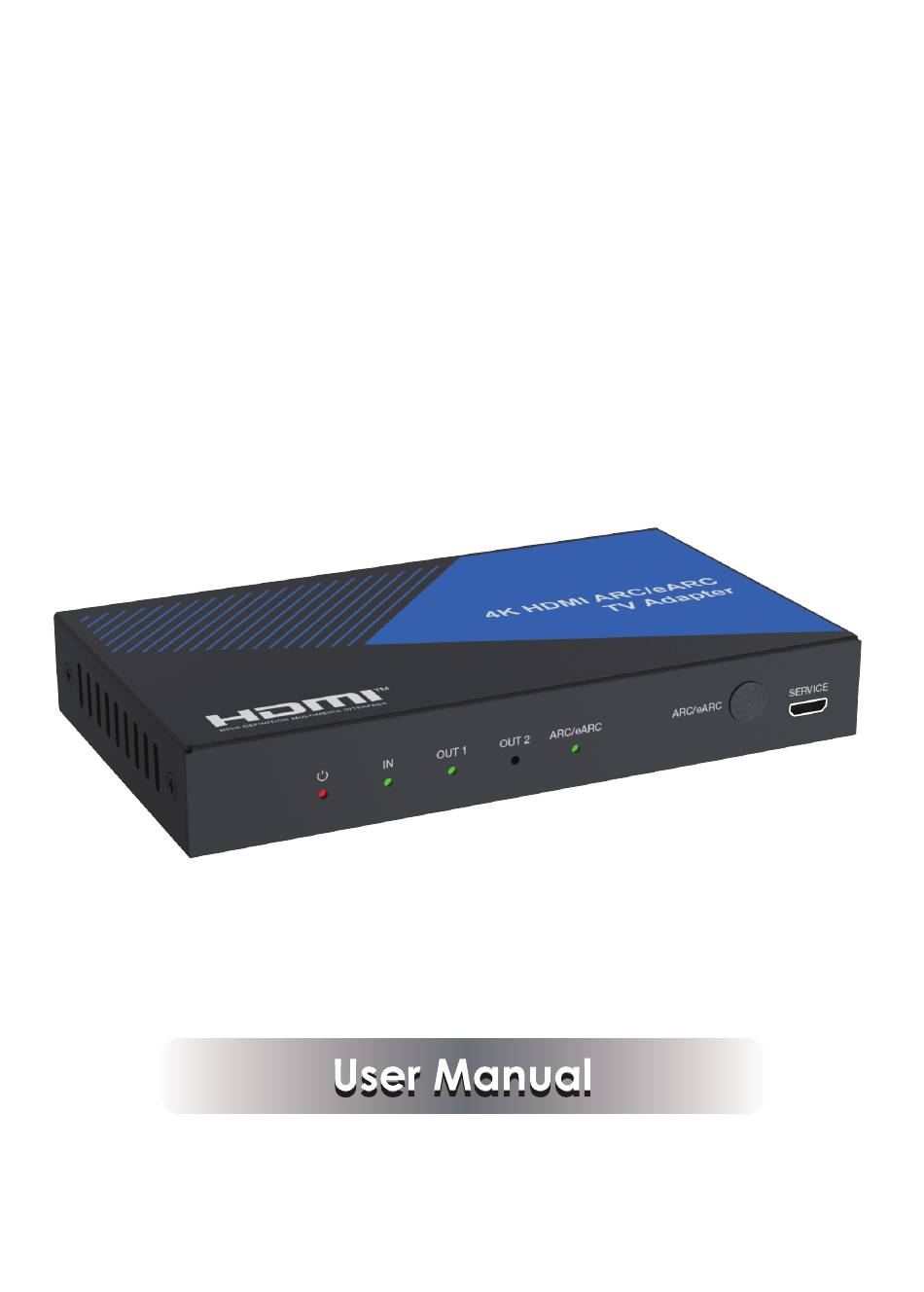

- Page 1 4K HDMI ARC/eARC Audio Adapter VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

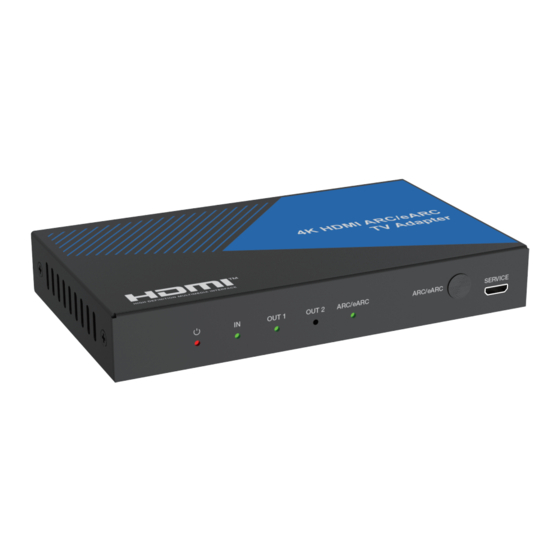

- Page 3 1. Introduction This 4K HDMI ARC/eARC Audio Adapter is capable to output Dolby Atmos audio from an external HDMI source to eARC/ARC sound systems. Since compliant with audio formats such as LPCM, Dolby True HD and DTS-HD Master Audio, this adapter is a perfect solution for connecting SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers.
- Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.3 Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4 Color Depth 8-bit,10-bit,12-bit Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, HDMI Audio Formats DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Connection...
- Page 5 5. Operation Controls and Functions Front Panel SERVICE OUT 1 OUT 2 ARC/eARC ARC/eARC Rear Panel SOURCE ARC/eARC AUDIO ONLY ARC/eARC TV SOUND BAR OUT 1 OUT 2 DC 5V Name Function Description POWER LED When the device is powered on, the red LED will light on. HDMI IN When the HDMI IN port connects with a signal source, the green LED will light on.
- Page 6 6. Application Example TV with ARC/eARC function DVD or Blu-ray Player Power Adaptor SOURCE ARC/eARC AUDIO ONLY ARC/eARC TV SOUND BAR OUT 1 OUT 2 DC 5V Soundbar Amplifier The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
