Safco 1853 Assembly Instructions

ASSEMBLY INSTRUCTIONS
Sort and count your parts!
PARTS LIST
LETTER
DESCRIPTION
CODE
Leveling Glide
A
Swivel Base
B
C Screw Post
Locking Cam
D
E Side Panel
Top Panel
F
G Divider
Upper Shelf
H
Lower Shelf
I
J Wire Paper Stop
TOOLS REQUIRED: Phillips Screwdriver
(two people recommended for assembly)

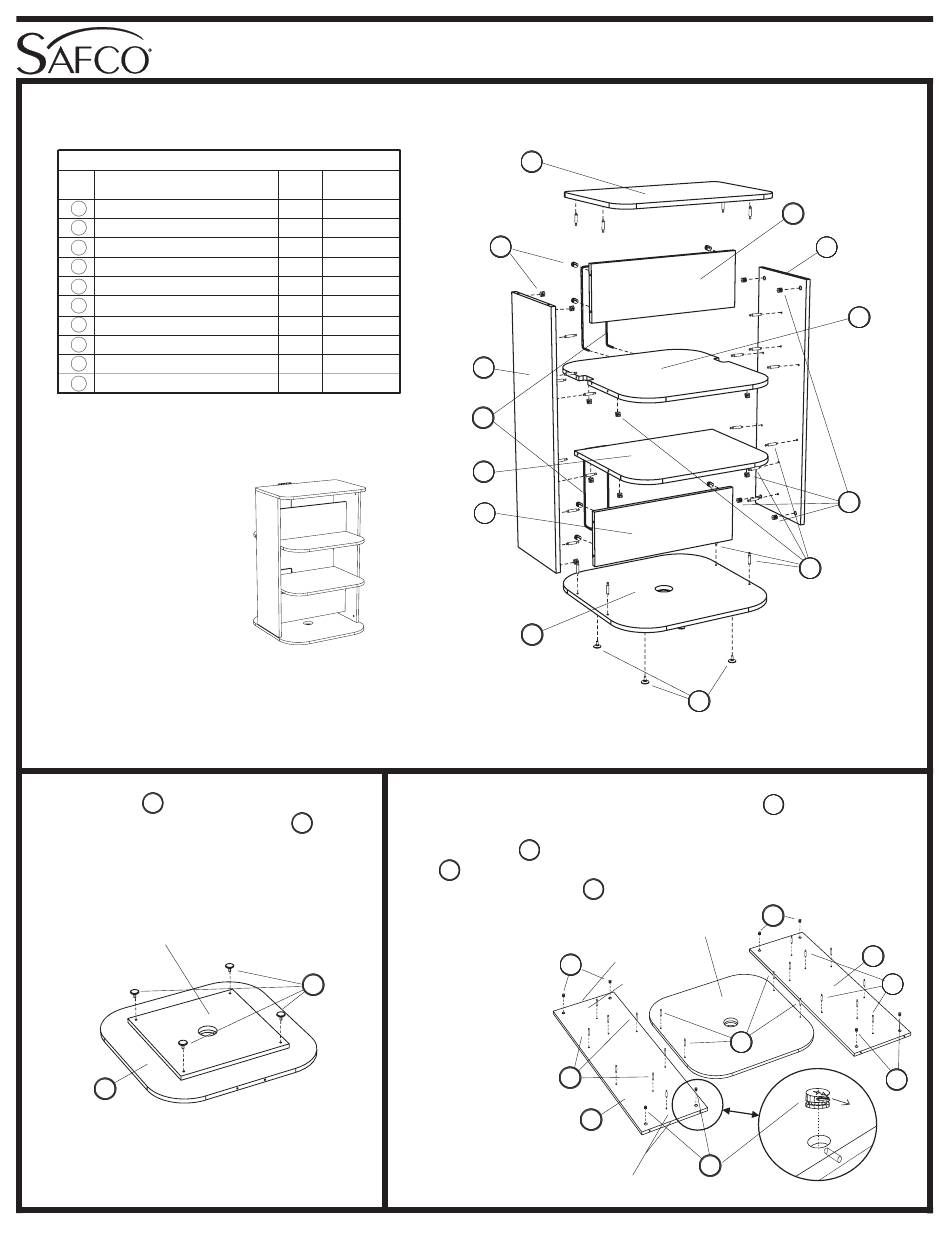

ASSEMBLED UNIT
MODEL 1853
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
(English-speaking operators)
1
Screw four A Leveling Glides into the
sockets on the underside of the B
Swivel Base, as shown.
UNDERSIDE
B
1853-37: 1 of 2; Rev. 1; 02/08
Rotating Double Printer Stand
QTY. PART NO.
4 1853-25
1 1853-05
24 HFFMFB
24 HFFMFC
2 1853-02
1 1853-01
2 1853-06
1 1853-08
1 1853-09
2 1853-10
2
Turn the Swivel Base upright, and screw four C Screw Posts into
the small holes on the top side, but do not overtighten.
Insert four D Locking Cams into each of the large holes of each
E Side Panel, with the arrows on the Cams pointing to the outer
edges. Insert eight C Screw Posts into the smaller holes on
each Side Panel, but do not overtighten.
NOTE: The TOP
A
edge of each Side
Panel has a greater
distance to the
holes along the
centerline than
does the bottom
edge (see illustra-
tion).
Safco Products Company, New Hope, MN 55428
F
D
E
J
I
G
B
TOP SIDE
TOP EDGE:
D
BIG GAP
C
E
BOTTOM EDGE:
SMALL GAP
1853
MODEL
NUMBER
G
E
H
D
C
A
D
E
C
D
C
D
