Safco 1854 Assembly Instructions

PARTS LIST
LETTER
DESCRIPTION
CODE
A
Left Side Panel
B
Right Side Panel
C
Screw Post
D
Left Cabinet Rail
E
Pointed Screw
F
Right Cabinet Rail
G
Top Panel
H
Back Panel
I
Bottom Panel
J
Locking Cam
K
Wood Dowel
L
Half-Shelf
M
Small Machine Screw
N
Hinge Bracket (Style 1)
O
Hinge Bracket (Style 2)
P
Door
Q
Bushing
R
Lock (2 Keys not shown)
S
Large Nut
T
Caster Bracket
U
Barrel Nut
V
Bolt
W
Lock Washer
X
Caster
Y
Shelf Peg
Z
Adjustable Shelf
AA
Drawer
Properly identify the two rails
used!
The D Left Cabinet Rail is
stamped "CL" near the roller,
while the F Right Cabinet Rail is
stamped "CR".
USE THIS HOLE
FOR FRONT
F
D
2
The G Top Panel has two finished edges, the H
Back Panel has no finished edges, and the I Bot-
tom Panel has one finished edge. Lay them down
with the large holes facing up. Insert six J Locking
Cams into each panel, with the arrows pointing toward
the nearest SIDE edge.
G
FINISHED
EDGES
NO
FINISHED
EDGES
ONE
FINISHED
EDGE
1854-37: 1 of 2; Rev. 1; 12/04
Machine Floor Stand
QTY. PART NO.
1 1854-02
1 1854-03
18 HFFMFB
1 1970-15
4 1902-23
1 1970-16
1 1854-01
1 1854-04
1 1854-05
18 HFFMFC
4 H8MMDWL
1 1854-07
4 1854-28
1 1854-29
1 1854-30
1 1854-08
2 1854-31
1 1854-13
1 1854-24
4 1854-10
8 1854-23
8 1854-27
8 1854-21
4 8917-25
4 HSFBNZ
1 1854-06
1 1854-09
1
Work on a smooth, clean surface.
Locate the A Left Side Panel and the B Right Side Panel and position them
with the holes up, as shown below. Insert C Screw Posts into the holes
along the top, back and bottom of each panel, and tighten with a screwdriver
(do not overtighten!)
Attach the D Left
Cabinet Rail to the A
Left Side Panel, with the
SCREW
roller facing the front
edge, using two E
Pointed Screws (start
with the hole closest to
the roller). Do the same
with the F Right
Cabinet Rail on the B
Right Side Panel.
H
Safco Products Company, New Hope, MN 55428
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED: Phillips Screwdriver;
Hammer or Mallet
G
H
D E
J
A
Y
U
W
X
T
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
(English-speaking operators)
D
A
SLOT
3
Insert the four K Wood Dowels into the holes in the
ends of the L Half-Shelf. Tap with a hammer or mallet
until they are fully seated.
Using two M Small Machine Screws each, attach the
N and O Hinge Brackets to the corners of the P
Door, opposite the large hole. Make sure that the
posts on the Brackets are closest to the corner. Slip a
Q Bushing over each post.
From the face of the
Door OPPOSITE the
screws in the Hinge
Brackets, insert the R
Lock through the large
J
hole, and fasten with
the S Large Nut so
that the pawl points
straight out to the
side. Once securely
I
fastened, turn the
Lock with the Key so
the pawl is parallel to
the edge.
AA
Z
F
S
R Q
P
I
V

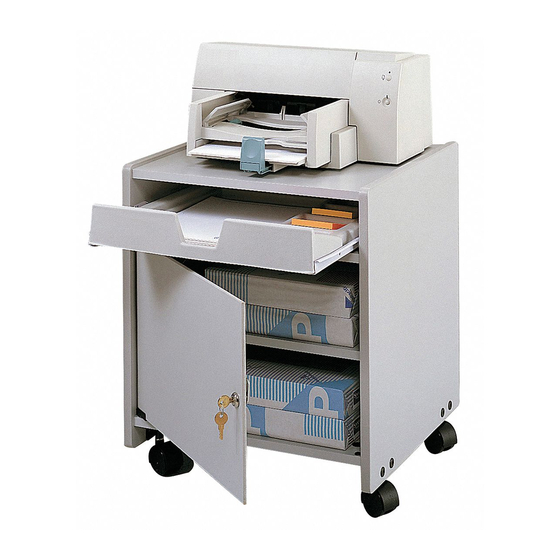

ASSEMBLED UNIT
MODEL 1854
C
E
THROUGH HOLES
M
N
O
Q
P
1854
MODEL
NUMBER
C
K
B
N
L
M
O
F
B
SLOT
K
L
R
LOCK
S
PAWL
