Summary of Contents for Midea PD

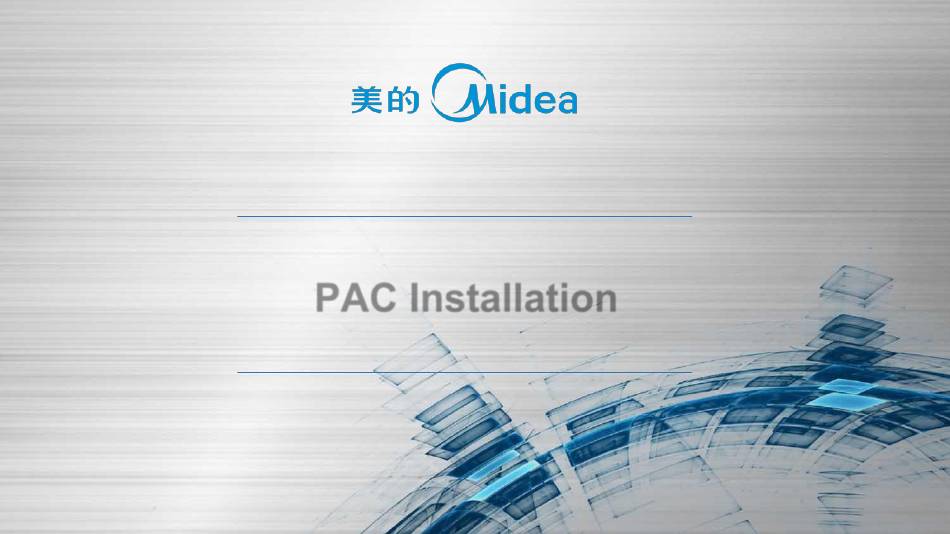

- Page 1 PAC Installation Technical Support Department March 20...
- Page 2 Product Line...
- Page 3 Window Kit Overview Adaptor Adaptor connecting to Series Pipe size Window sealing board connecting to unit window slider PD/PF/PB Round 150mm 150mm pipe Window sealing board to window slider Square 150mm 150mm pipe Window sealing board to window slider Square...
- Page 4 Accessories Window end adaptor Unit end adaptor Exhaust hose Note: Just pick out one set of accessories to show the differences, this set isn’t suitable for all of the PAC models.
-
Page 5: You Will Need
You will need... - Page 6 Sash Window Installation Step 1: • Cut the adhesive seal foams (J) and (K) to the required lengths. • Remove the strips from adhesive seal foams (J) and (K). • Attach the adhesive seal foams (J) and (K) to the window sash and frame.
- Page 7 Sash Window Installation Step 2: • Slide the window slider part (G) into part (F). • Adjust the window slider to the width of the window assembly and secure with plastic bolt (E).
- Page 8 Sash Window Installation Step 3: Before securing the window sash, mark and then drill the pilot holes in the window sill to prevent it from splitting. • Insert the window slider into the window opening. Close the window sash to secure the window slider in place.
-
Page 9: Sliding Window Installation
Sliding Window Installation Step 1: • Cut the adhesive seal foams (J) and (K) to the required lengths. • Remove the strips from adhesive seal foams (J) and (K). • Attach the adhesive seal foams (J) and (K) to the window sash and frame. - Page 10 Sliding Window Installation Step 2: • Slide the window slider part (G) into part (F). • Adjust the window slider to the width of the window assembly and secure with plastic bolt (E).
- Page 11 Sliding Window Installation Step 2: • Before securing the window sash, mark and then drill the pilot holes in the window sill to prevent it from splitting. • Insert the window slider into the window opening. Close the window sash to secure the window slider in place.
- Page 12 Exhaust Hose Connection Step 1: • Connect the exhaust hose (C) with the hose adaptors (B) and (D).
- Page 13 Exhaust Hose Connection Step 2: • Slide the hose adaptor (B) onto the air outlet (VB). • Connect the other end to the window slider.
- Page 14 Exhaust Hose Connection Step 2: To ensure proper operation, do not overextend or abnormally bend the hose (C). Place the product at a suitable distance from walls, furnitures and curtains to prevent it from overheating due to poor ventilation.
-
Page 15: Water Drainage
Water Drainage • Risk of electric shock! To prevent electric shock, unplug before cleaning. The product features a bottom tray which collects excess water when in the DRY (dehumidifying) mode. When the bottom tray is full, the product beeps 8 times and the main unit display (UF) shows P1. To drain the excess water: •... - Page 16 Continuous Water Drainage • Remove the exhaust hose (C). • Unscrew the drain outlet’s (VC) cap and remove the drain plug. • Attach the hose (O) to the drain outlet (VC). • Place the other end of the hose over the drain receptacle, for example, a basement floor drain, a sink or similar.
- Page 17 Location • Place the product at a distance of 12 in (30 cm) from walls, furnitures and curtains on all sides to prevent it from overheating due to poor ventilation. • The product additionally requires at least 20 in (50 cm) of clearance on the back. •...
-
Page 18: Installing/Replacing The Batteries
Installing/replacing the batteries • Remove the battery compartment cover. • Insert 2 x AAA batteries (H) with the correct polarities (+) and (-) as marked on the battery and inside the battery compartment. • Slide the battery compartment cover back into place. - Page 19 PD Series Control panel Mode: Cooling; Fan; Auto Defrost Speed: Hi / Mi /Lo Follow me indicator light Timer indicator light Sleep indicator light Auto swing Timer button Timer/Temp. setting Fan button Power on/off button Mode select button Sleep button...
- Page 20 PF Series Control panel Mode select Power on/off button Timer setting Auto swing button Sleep button Fan button Temp. setting...
- Page 21 PH Series Control panel Contracted style design of control panel...
- Page 22 PQ Outstanding Features Independent dehumidification mode（optional） The portable air conditioner is also a dehumidifier. You can also set the relative humidity independently. Relative humidity setting Relative humidity setting...
- Page 23 PB Control panel Timer indicator light Follow me indicator light Sleep indicator light Mode: Cooling; Auto;Fan;Dry;Heating(o Speed: Hi / Mi /Lo/ ption) Ionizer(option) Timer/Temp. setting Auto swing Timer button Fan button Power on/off button Mode select button Sleep button...
-
Page 24: Cleaning And Maintenance
Cleaning and Maintenance • Risk of electric shock! To prevent electric shock, unplug before cleaning. Risk of electric shock! Do not immerse the plug in water or other liquids. Never clean the product under running water. - Page 25 Cleaning and Maintenance Cleaning the removable air filter (V) • Clean the removable air filter (V) at least every 2 weeks. • Pull the filter out. • Rinse the filter thoroughly in warm water with mild detergent. • Gently shake off the excess water from the filter and air-dry it. •...
- Page 26 Cleaning and Maintenance Cleaning the main unit • To clean, wipe with a soft, slightly moist cloth. • Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.
- Page 27 Cleaning and Maintenance Servicing • Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. •...
- Page 28 Cleaning and Maintenance Storage • Drain water before storage. Place the product in a warm and dry room and activate the fan mode for 12 hours to avoid mold formation. The product shall be stored in places without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
- Page 29 PD Series Installation part(for EU models)
- Page 30 PD Series Easy for Installation • Two types of installation methods (In wall / In window) • Easy to install ↙ In Window ↗ In wall For US The installation method only for EU models For US...
- Page 31 THANKS FOR YOUR ATTENTION...
