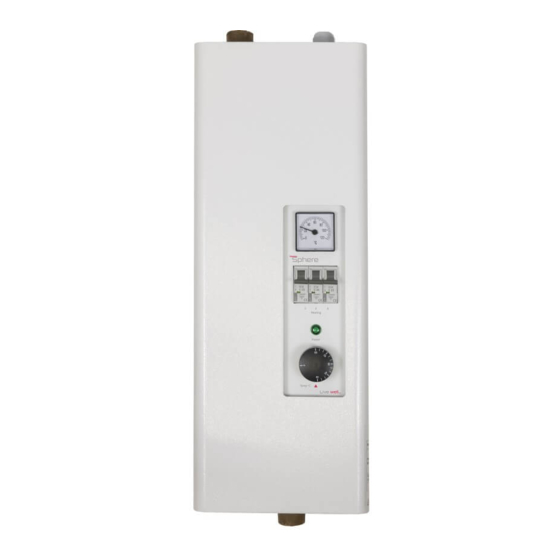

Electric flow boiler with pump

Advertisement

Quick Links

Contents

1. General

These instructions contain basic information about the design and operation of ThermoSphere Slimline Electric Flow
Boilers (TSEFB) and define the rules for operation. Indicated is the sequence of installation and connection, and the
technique of tuning. Possible problems and recommended solutions are also given. Before installing the TSEFB and its
introduction into service, carefully read this manual, as proper installation, configuration and maintenance of the
TSEFB will ensure its safe and reliable operation for a long period. TSEFB is not intended for use by persons
(particularly young children) with disabilities or lack of experience and knowledge, except if in the immediate
presence of the supervisory staff or the person responsible for their safety, the necessary instructions for using the
device have been given. Authorized personnel must supervise young children to prevent them from playing with the
device. Adhere to the requirements of these instructions and store it for later use.
1.1 TSEFB is intended for heating the heat carrier (treated water) in the space heating system with forced circulation
of heat carrier. The rated pressure of heat carrier (water) in the system must be no more than 0.2 MPa (2 bar). The
minimum gauge pressure before the circulation pump (backwater) must be 0.01 MPa (0.1 bar). TSEFB have been
manufactured for use in residential and other areas of this type for regions with moderate and cold climates.
1.2 TSEFB is recommended to operate in the premises with the following working values of climatic factors:
Atmospheric pressure 84 ... 107 kPa (630 ... 800 mm Hg)
Temperature 10 °C - 35 °C (the limiting values - 5 °C - 40 °C);
Relative humidity 60% at 20 °C.
The indoor air must be free of dust, as well as aggressive and flammable gas and vapour.
1.3 In the operation of the TSEFB, one must regularly watch its operation.
Avoid installation of TSEFB at sites without people who control the condition and operation of the equipment.
1.4 TSEFB is manufactured in accordance with the requirements of TU 28.2-31402141-001-2001.
1.5 An example of designation of the wall mounted electric water heater: TSEFB-P4.5,
where TSEFB-P is the symbol, 4.5 = nominal power in kW.
1
Installation and Operating Instructions
ThermoSphere Slimline Electric Flow Boiler with Pump
1
2
3
3
3
4
4
4
5
5
5
Live well...

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slimline and is the answer not in the manual?

Questions and answers

Summary of Contents for ThermoSphere Slimline

  • Page 1: Table Of Contents

    11 Manufacturer's Warranty 1. General These instructions contain basic information about the design and operation of ThermoSphere Slimline Electric Flow Boilers (TSEFB) and define the rules for operation. Indicated is the sequence of installation and connection, and the technique of tuning. Possible problems and recommended solutions are also given. Before installing the TSEFB and its introduction into service, carefully read this manual, as proper installation, configuration and maintenance of the TSEFB will ensure its safe and reliable operation for a long period.
  • Page 2: Specifications

    2. Specifications 2.1 Main technical data on TSEFB shown in Table 1, and a circuit diagram - in Figure 3. 4. 2.2 TSEFB heats the heat carrier for the heating system using tubular heating elements (THE). 2.3 TSEFB design provides adjustment of heat carrier heating temperature within the allowable range and its automatic support with a deviation bandwidth ranging from 4 °C to 8 °C.
  • Page 3: Configuration

    3. Configuration 3.1 Configuration is presented in Table 2. Table 2 Name Quantity Electric Water Heater (TSEFB) Operating Instructions Packing 3.2 Cables and other supporting materials required for installation and external connection are not supplied. 4. Safety 4.1 This TSEFB model takes into account the international level of protection from the dangers caused by the electrical, mechanical, thermal effects, possible ignition or radiation during normal operating conditions according to the instructions.
  • Page 4: Preparing For Operation And Operation Order

    6. Preparing for Operation and Operation Order 6.1 TSEFB wall installation, connection to the heating system and testing should be performed by qualified personnel in compliance with the requirements of the project and all the installation and operation rules. Before connecting TSEFB, thoroughly rinse away any dirt from the heating system.
  • Page 5: Storage

    11 Manufacturer's Warranty This product is protected by a 2 year manufacturers guarantee against material or manufacturing defects when installed in line with the instructions. ThermoSphere warranty covers replacement parts or product only. See ThermoSphere warranty terms and conditions for full details.
  • Page 6 Figure 1 - Recommended schematic diagram of the heating system Live well…...
  • Page 7 Figure 2 – TSEFB Dimensions Live well…...
  • Page 8 Figure 4 - Circuit Diagram 230V Single Phase MP1 Contactor RD 25 40 THE heater THE heater Thermal switch biased-off contact (thermal protection) Thermostat contact Heating switch 1 Heating switch 2 Jumper (Remove jumper when connecting to a Thermostat) Live well…...
  • Page 9 Figure 4 - Circuit Diagram 400V Three Phase Live well…...
  • Page 10 V1.1 July 2021 Manufactured in the EU for Thermogroup Ltd T/A ThermoSphere Bridge House, Pattenden Lane, Marden, Tonbridge, Kent, TN12 9QJ UNITED KINGDOM 0800 019 5899 hello@thermosphere.com www.thermosphere.com Notes Live well…...
