Related Manuals for Comet IHC3L1200M
Summary of Contents for Comet IHC3L1200M

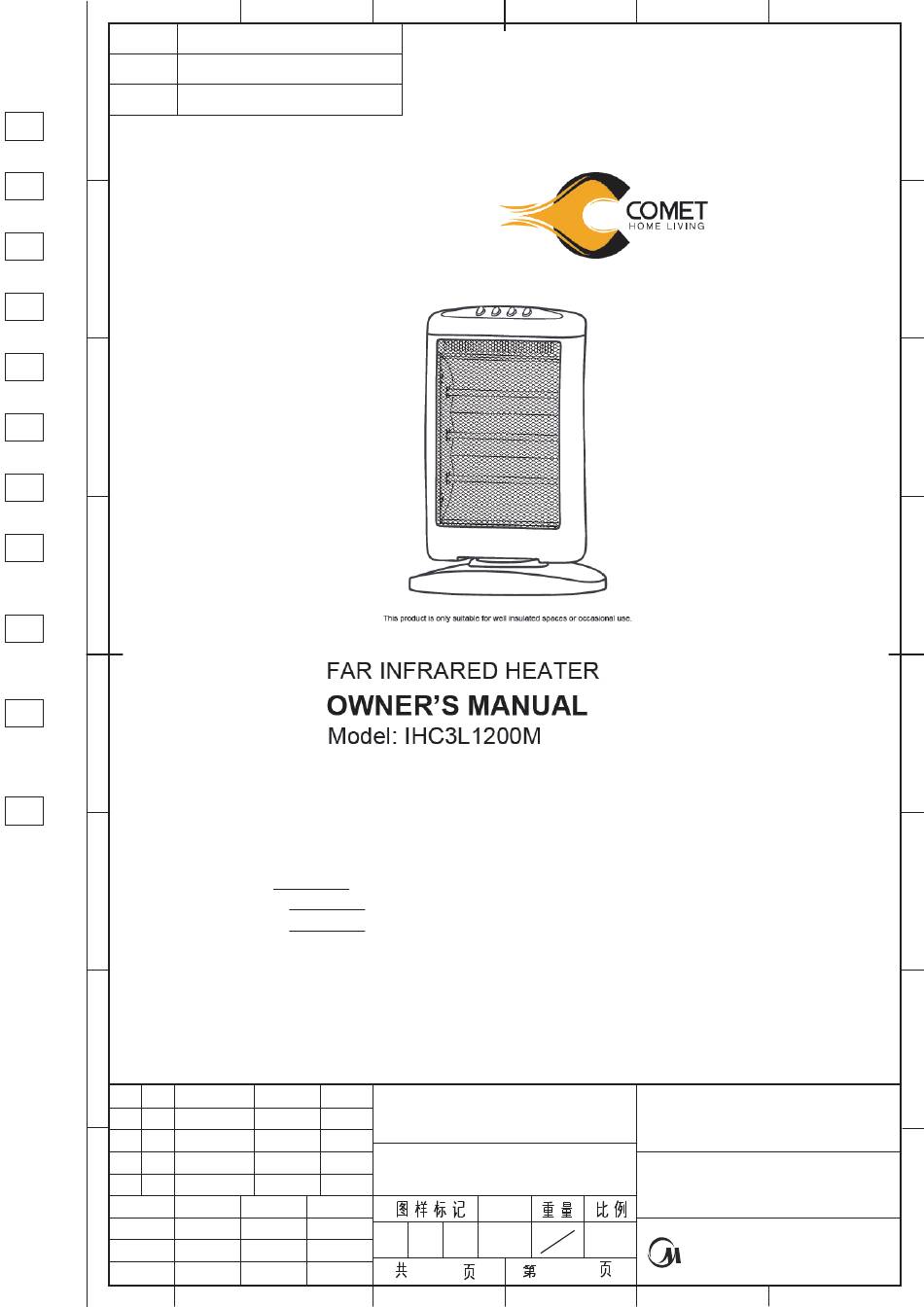

- Page 1 控制面板 一致性 技术要求(版本号:B，2020-01） 1.文字图案印刷颜色为： 双色 ，印刷字体需清晰可见，文字不能粘到一起； 2.该说明书的幅面大小为：145*210mm ，未注直线尺寸公差应符合GB/T1804-v； 70P以下为钉装，70P以上为胶装（特殊要求除外） 3.该说明书的装订方式为： 钉装 4.说明书警语字高大于3mm 5.产品应符合QMG-J53.021《产品说明书技术条件》的有关要求。 6.有ROHS指令要求的物料应符合美的企业标准QML-J11.006《产品中限制使用有害物质的技术标准》。 16161000A16335 COMET-NS12-13C1（IHC3L1200M）-0501 暖风机 说明书 材料:70g双胶纸 标记 处数 更改文件号 签 字 日 期 刘灿 李艳 制 图 审 核 古广君 设 计 - -- - - 标 准 化...
- Page 2 This product is only suitable for well insulated spaces or occasional use. FAR INFRARED HEATER OWNER’S MANUAL Model: IHC3L1200M...
-
Page 3: Safety Instruction
SAFETY INSTRUCTION Warning: In order to avoid overheating, do not cover the heater. 2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 3. - Page 4 SAFETY INSTRUCTION 8. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
- Page 5 PART FIGURE Description Front grille Swing switch Power switch Top cover Reflector Front enclosure Rear enclosure Base plate Heating tube ASSEMBLY Assemble the main body of the heater and the base plate as follows: 1. Remove the butterfly nuts from the bottom of the main unit. 2.
- Page 6 OPERATING INSTRUCTION 4. Press the Oscillation switch to activate the oscillating feature of the main unit. 5. After use, turn off all the switches and remove the main plug from the wall outlet. Warning The push rod of the tip-over switch must be free to move and should never be tampered with or jammed into position as this will disable the safety tip- over protection circuit.
- Page 7 SAFETY CONTROL Table for information requirements for electric local space heaters Model identifier(s):IHC3L1200M Item Symbo Value Unit Item Unit Heat output Type of heat input, for electric local space heaters only (select one) Nominal heat Pnom Manual heat charge control with...
- Page 8 CLEANING AND MAINTENANCE INSTRUCTION 1. Light accumulated dust may be removed from the heater with a soft cloth. Wipe the exterior surfaces of the heater occasionally with a cloth moistened (not dripping wet) with a solution of mild detergent and water. Dry the case thoroughly with a soft dry cloth before operating the heater.
