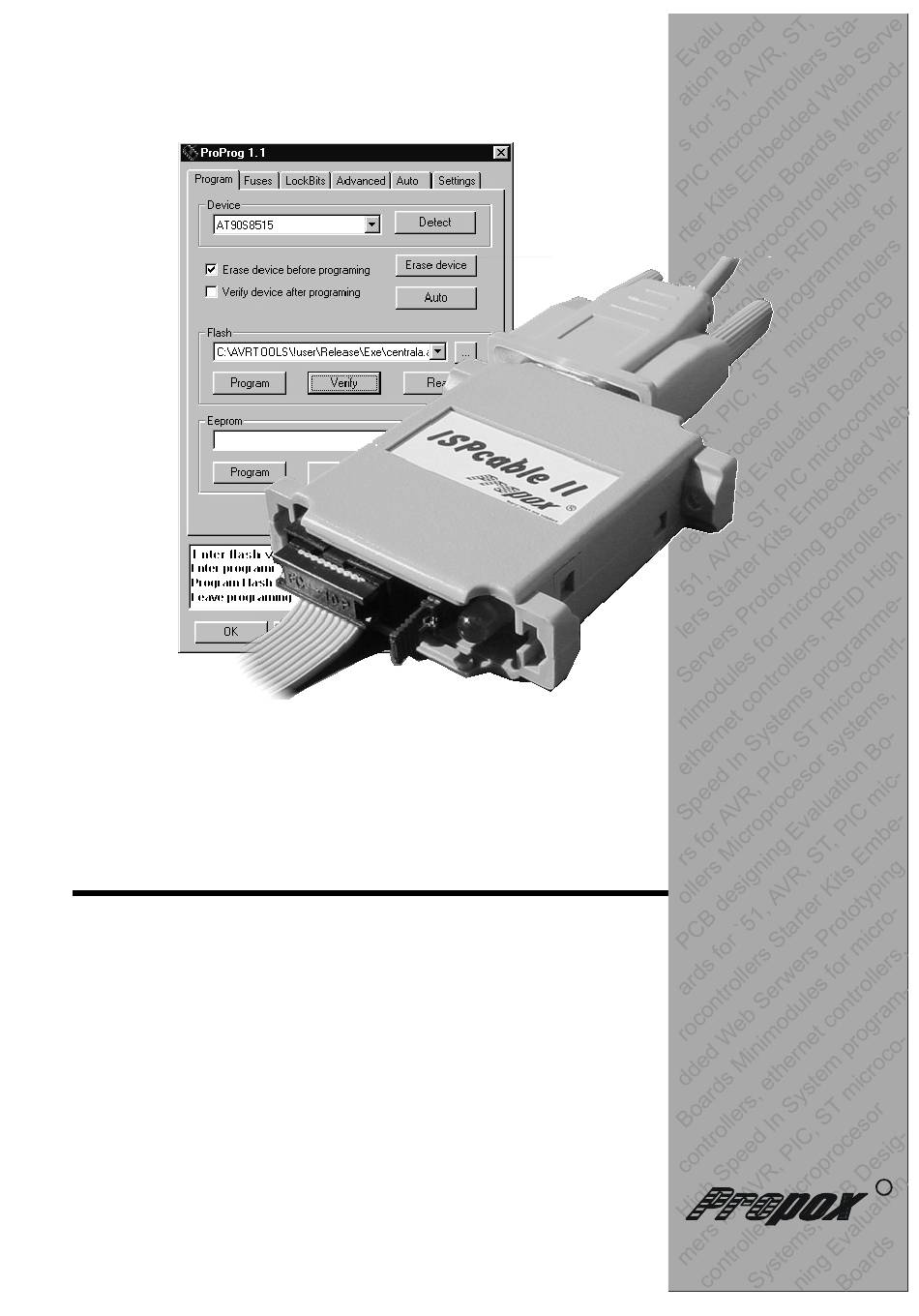

- Page 1 ISPcable II Programer for AVR, AT89S and AT90S Atmel microcontrollers with serial interface. User’s Guaid Many ideas one solution REV Beta 1.1...

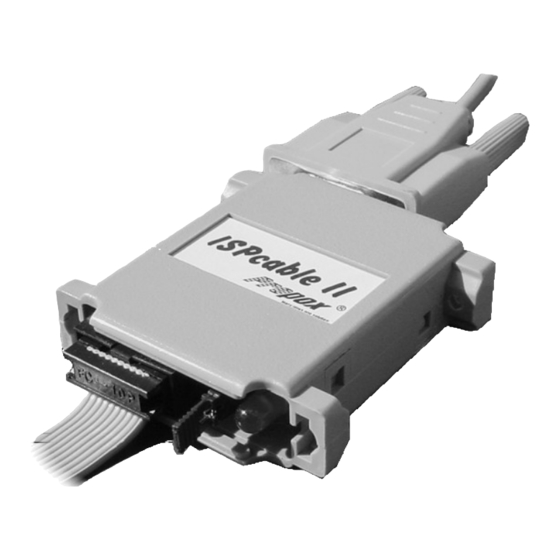

- Page 2 Introduction Thank you for buying our ISPcable II programmer. We hope that the great power it offers will allow you to appreciate fully the virtues of programming in the system provided by Atmel microcontrollers. ISPcable II is advanced, high-speed development/production programmer supporting most In-System Programmable microcontrollers from Atmel.
-
Page 3: Supported Devices
Features of ProProg • Application runs under Win-95/Win-98, NT, Windows 2000, XP,Windows 2003 • High usability • Programs both Flash and EEPROM • Security and Fuse Bit programming supported • Fast programming with auto-adapting or manual RS232 and SPI clock •... - Page 4 Times of programming Fosc Flash Write (s) EEPROM Write (s) Microcontrollers (MHz) 3.3V 3.3V AT89S8252 AT89S8252 AT89S8252 AT89S53 AT89S53 AT89S53 AT90S1200 AT90S1200 AT90S2313 AT90S2313 AT90S8515/8535 AT90S8515/8535 ATmega103 ATmega103 ATmega323 ATmega323 ATmega128 ATmega128 Note: The only minimum times of programming in schedule were passe for some devices TBD –...
- Page 5 OPIS WYPROWADZEŃ MOSI SPI - sygnał danych Master wy / Slave we MOSI LED diode and multiplexer signal Target RESET control pin SPI - serial clock signal MISO SPI - data signal Master in / Slave out MISO Power supply from target circuit 1.5 - 6V Programmer ground Programmer ISP connector...
- Page 6 Connection with the target circuit The connection to the target circuit should be realized through the attached 10-lead ribbon cable, terminated with standard IDC plugs with 2.54 mm raster. In case of using another cable it should be kept in mind that it should not be longer than 30 cm (~12 inches). The target device should be equipped with a ISP connector with lead-out identical to that of the programmer ISP connector.
- Page 7 1.8 and 6 V. The ISPcable II can be supplied from an external source or directly from the target circuit. In the last case, the supply voltage should have a value between 4.5 and 5.5 V.
- Page 8 2.5 mm. The Voltage should be since 9 to 15V for DC and since 7 to 13 for AC. The implementation of arrangement of the power supply inside the programmer unit ISPcable II was showed on following drawing.
-
Page 9: Technical Data
Cable terminated with IDC 10 plugs for connection of the programmer with the target circuit CD with documentation and software Technical assistance In order to obtain technical assistance, please contact support@propox.com. Please provide the following data: Version of programmer and ProProg software ...
