Item # 1005787546, 1005787550
Model # 30608, 30611
ASSEMBLY INSTRUCTIONS

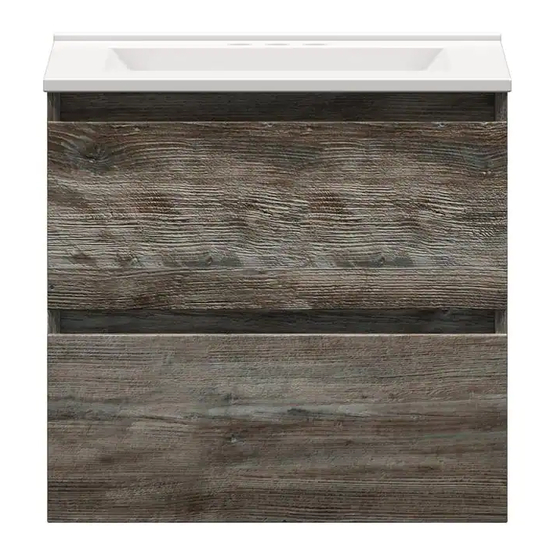

24 IN. SIDEMERE WALL HUNG
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1- 855- HD GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this vanity. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Glacier Bay!
Advertisement
Table of Contents
Related Manuals for Glacier bay 30608
Summary of Contents for Glacier bay 30608
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this vanity. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective. -
Page 3: California And Minnesota Residents
California and Minnesota Residents CALIFORNIA RESIDENTS WARNING THIS PRODUCT CAN EXPOSE YOU TO STYRENE / WOOD DUST WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. GO TO WWW.P65WARNINGS.CA.GOV/PRODUCTS MINNESOTA RESIDENTS “IMPORTANT HEALTH NOTICE. SOME OF THE BUILDING MATERIALS USED IN THIS HOME (OR THESE BUILDING MATERIALS) EMIT FORMALDEHYDE. EYE, NOSE, AND THROAT IRRITATION, HEADACHE, NAUSEA AND A VARIETY OF ASTHMA-LIKE SYMPTOMS, INCLUDING SHORTNESS OF BREATH, HAVE BEEN REPORTED AS A RESULT OF FORMALDEHYDE EXPOSURE. -
Page 4: Points To Installer
Points to Installer INSTALLATION TO BE PERFORMED BY QUALIFIED PROFESSIONAL ONLY . Wall hung vanity cabinets require important wall preparation and installation. Please thoroughly read this notice and all other installation instructions that might be included with the cabinetry. Keep in mind □... -
Page 5: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Vanity base Vanity top Bumper Suspension rail 545mm (21-7/16in) Leg screw (required for leg option only) HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. -
Page 6: Installation
Installation Preparing the wall □ Determine the desired wall location for the cabinet. □ Determine desired height for top of cabinet and mark a horizontal line on the wall using a pencil. □ Use a level to ensure the suspension rail markings will be level before installing to the wall. - Page 7 Installation (continued) Installing the suspension rail □ Place the suspension rail (D) against the wall and determine the desired location. □ Insert the #8 x 2 in. screws (not included) through the suspension rail (D) holes and screw them into the wall. CAUTION: Different wall materials require different types of fixing hardware (not included).
- Page 8 Installation (continued) Securing the vanity to the wall □ Place the vanity (A) in the desired position taking into account the location of your plumbing. Ensure the vanity (A) is level front to back and at both sides. □ Secure the vanity (A) to the wall by inserting #8 x 2 in. screws (not included) through the back rail of the vanity. □...
- Page 9 Installation – [Floor-standing unit] Attaching the hairpin legs □ Install each hairpin leg matching each corner of the leg into each corner of the vanity. Provide sufficient protection on the floor to protect the vanity from damage. □ Tilt the vanity backwards and position the hairpin legs, aligned over the pre-drilled holes (refer the image).
- Page 10 Installation (continued) Securing the vanity to the wall □ Place the vanity (A) in the desired position taking into account the location of your plumbing. □ Ensure the vanity (A) is level front to back and at both sides. □ Secure the vanity (A) to the wall by inserting two #8 x 2 in. screws (not included) through the back rail of the vanity.
-
Page 11: Drawer Adjustment
Drawer Adjustment Drawer box side Drawer box side Under mount slide Drawer box bottom Drawer Drawer bracket bracket Drawer Drawer Drawer front front front Removing the drawer: Drawer adjustment: Re-installing the drawer: Open the drawer as far as possible. For drawer alignment move the drawer To install the drawer, open each drawer Push the bracket lever underneath the up and down adjustable to the desired... -
Page 12: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action □ Adjust the drawer slides. Vanity drawers rub against another surface. Wall is not level. □ Adjust the drawer slides. There is an uneven gap between the Wall is not level. drawers and cabinet. □... - Page 13 Questions, problems, missing parts? Before returning to the store, call Glacier Bay Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1- 855- HD GLACIER (1-855-434-5224) HOMEDEPOT.COM/GLACIERBAY Retain this manual for future use.
