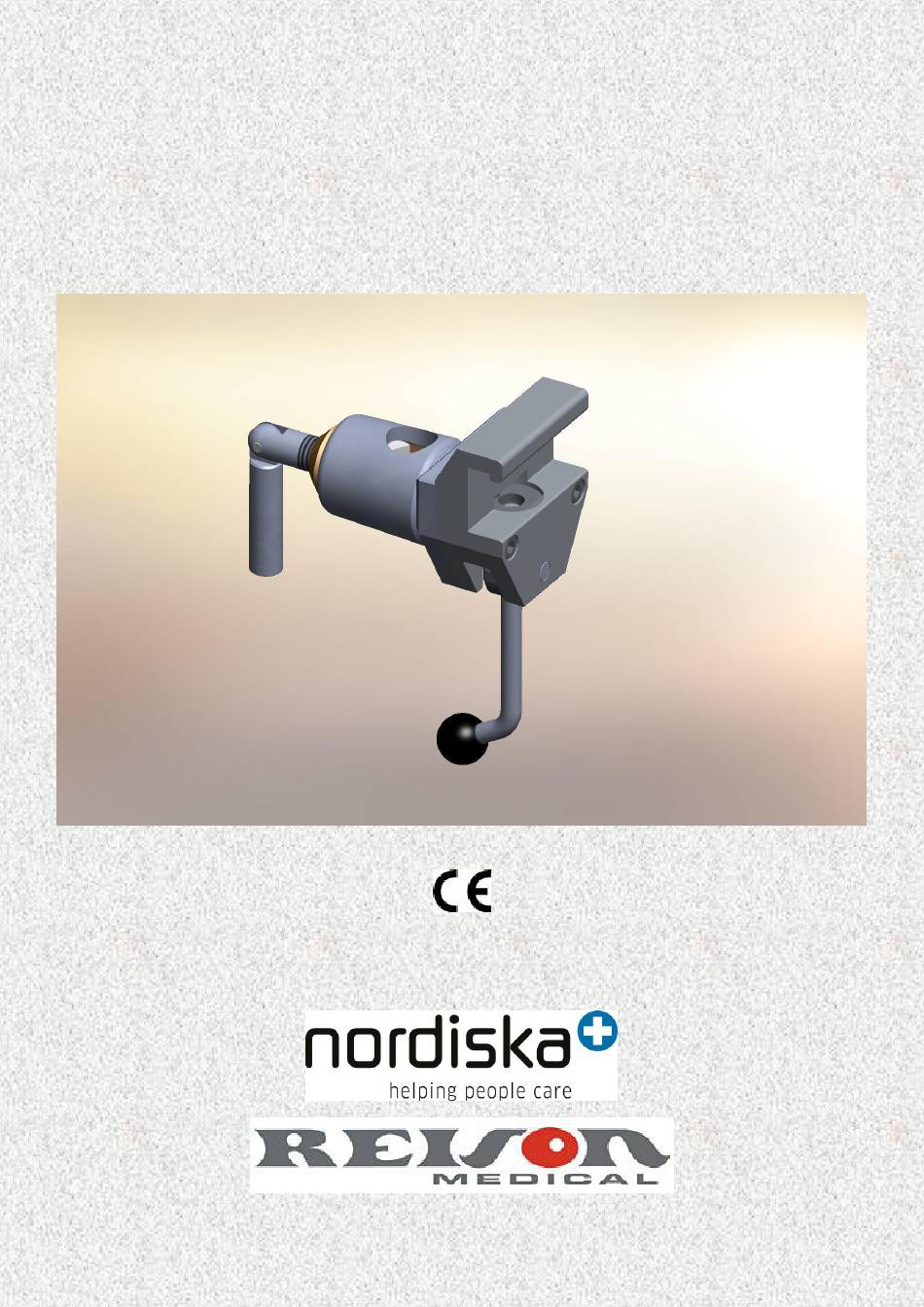

- Page 1 USERS MANUAL RADIAL CLAMP 10-307 GMDN: 35393 PID 77699 10-307 Edit.2 Page 1 ( 5)

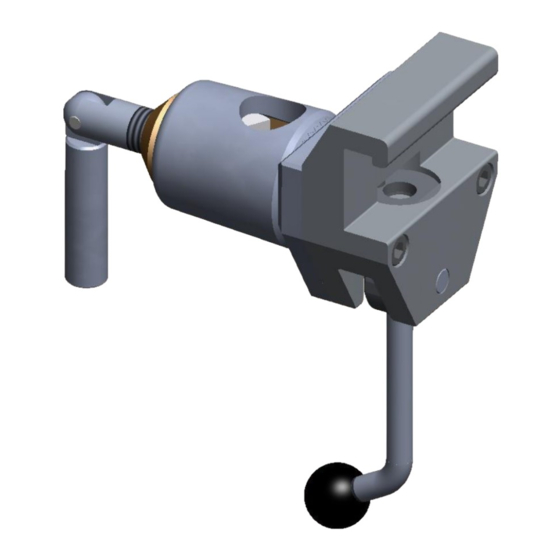

- Page 2 INTRODUCTION The Radial Clamp is designed to fasten accessories with round post, 20 mm, to an accessory rail of an operating table. Also posts with diameter 18 and 16 mm can be used in this clamp. The clamp is of “hook on”...
- Page 3 IMPORTANT SECURITY INSTRUCTIONS A control of the locking function must be done before every application with patient. Service and preventing maintenance shall be done by authorized personnel and according to issued interval! CAUTION! When the lever that locks the accessory in the clamp is released, the accessory must be supported with the other hand or by some other person.
- Page 4 160 mm Width: 65 mm Length: 125 mm Weight: 1,1 kg Ø16 – Ø20mm Post Box 240 Eriksbergsvägen 32 A 734 25 Hallstahammar Tel. +46 (0)220-433 99 Fax: +46 (0)220-290 16 Int. www.reison.se Mail: info@reison.se 10-307 Edit.2 Page 4 ( 5)
- Page 5 10-307 Edit.2 Page 5 ( 5)
