Industrial Electronic Devices
User Manual
Revision 2.001
English
M-Bus Master / Modbus TCP Slave -
Converter
(Order Code:
HD67044-B2-20, HD67044-B2-40,
HD67044-B2-80, HD67044-B2-160,
HD67044-B2-250)
for Website information:
www.adfweb.com?Product=HD67044-B2
for Price information:
www.adfweb.com?Price=HD67044-B2-20
www.adfweb.com?Price=HD67044-B2-40
www.adfweb.com?Price=HD67044-B2-80
www.adfweb.com?Price=HD67044-B2-160
www.adfweb.com?Price=HD67044-B2-250
Benefits and Main Features:
Very easy to configure
Up to 250 standard M-Bus devices connected to
the Converter
Power Supply 15...21V AC or 18...35V DC
Industrial temperature range:
-40°C / 85°C (-40°F / 185°F)
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual M-Bus Master / Modbus TCP Slave
Document code: MN67044_ENG
HD67044-B2
For other M-Bus products see also the following link:
Converter - M-Bus /
www.adfweb.com?Product=HD67021
www.adfweb.com?Product=HD67022
www.adfweb.com?Product=HD67030
Analyzer & Scanner M-Bus
www.adfweb.com?Product=HD67031
Similiar
M-Bus – Repeater - Isolator
Products
www.adfweb.com?Product=HD67032
Converter - M-Bus Master/ Modbus Slave
www.adfweb.com?Product=HD67029M-232
www.adfweb.com?Product=HD67029M-485
M-Bus Master / PROFIBUS Slave - Converter
www.adfweb.com?Product=HD67053M
M-Bus – Concentrator - Datalogger
www.adfweb.com?Product=HD67054M
M-Bus Slave / Modbus Master - Converter
www.adfweb.com?Product=HD67059M-232
Do you need to choose a device? do you want help?
Ask it to the following link:
INFO:
www.adfweb.com
Revision 2.001
Page 1 of 30
(RS232)
(RS485)
(Ethernet)
(on RS232)
(on RS485)
www.adfweb.com?Cmd=helpme
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67044-B2-20
Summary of Contents for ADF Web HD67044-B2-20

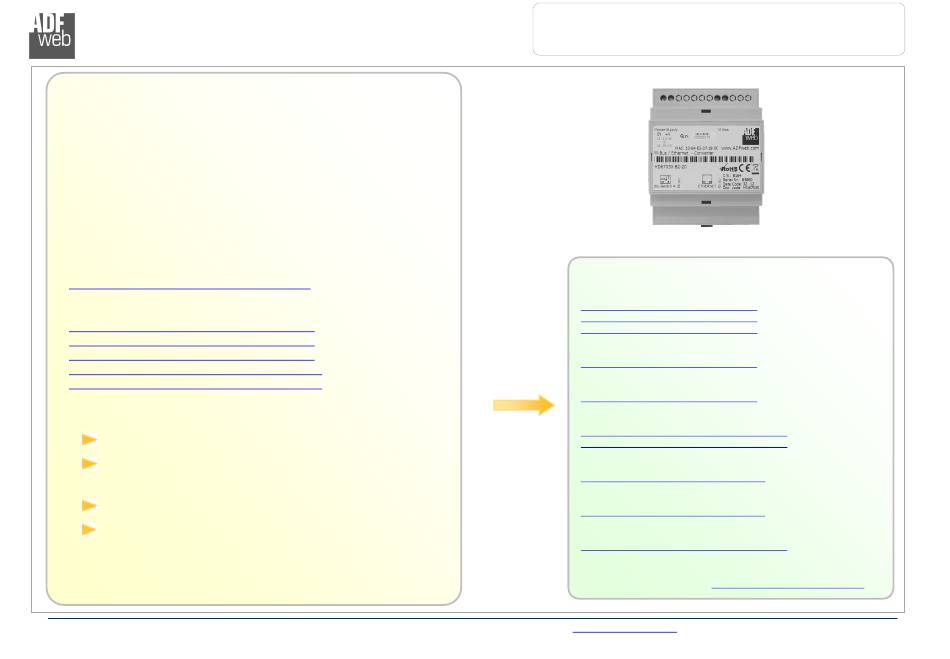

- Page 1 Industrial Electronic Devices User Manual Revision 2.001 English HD67044-B2 M-Bus Master / Modbus TCP Slave - Converter (Order Code: HD67044-B2-20, HD67044-B2-40, HD67044-B2-80, HD67044-B2-160, HD67044-B2-250) for Website information: For other M-Bus products see also the following link: www.adfweb.com?Product=HD67044-B2 Converter - M-Bus / www.adfweb.com?Product=HD67021...
-
Page 2: Table Of Contents
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 2 of 30 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page Updated INDEX... -
Page 3: Security Alert
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 3 of 30 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Example Of Connection
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 4 of 30 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 5 of 30 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67044-B2-xxx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Temperature range -40°C to 85°C. At the Converter can be connected up to 250 standard M-Bus devices. This number depends of the code expressed by the xxx number: HD67044-B2-20 support up to 20 M-Bus devices; HD67044-B2-40 support up to 40 M-Bus devices;... -
Page 7: Power Supply
Vmin Vmax Consumption at 24V DC: Device No Load [W/VA] Full Load [W/VA]* HD67044-B2-20 HD67044-B2-40 HD67044-B2-80 HD67044-B2-160 HD67044-B2-250 * This value is with all the Slave M-Bus devices of the code (20, 40, 80, 160, 250) connected to the line... -
Page 8: Function Modes
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 8 of 30 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 9 of 30 Industrial Electronic Devices LEDS: The device has got two LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode 1: Device State (green) -
Page 10: Modbus Tcp
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 10 of 30 Industrial Electronic Devices MODBUS TCP : The Modbus TCP connection must be made using Connector3 of HD67044-B2 with at least a Category 5E cable. -
Page 11: Use Of Compositor Sw67044
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 11 of 30 Industrial Electronic Devices USE OF COMPOSITOR SW67044: To configure the Converter, use the available software that runs with Windows, called SW67044. downloadable site www.adfweb.com and its operation is described in this document. -
Page 12: Set Communication
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 12 of 30 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two Buses, Modbus and M-Bus. By Pressing the “Set Communication” button from the main window for SW67044 (Fig. 2) the window “Set Communication”... -
Page 13: M-Bus
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 13 of 30 Industrial Electronic Devices M-BUS By Pressing the “M-Bus” button from the main window for SW67044 (Fig. 2) the window “M-Bus Network” appears (Fig. 4). ECTION ODES In the section “Nodes”... - Page 14 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 14 of 30 Industrial Electronic Devices ECTION ARIABLES Selecting the desired node it is possible to add a variable. In order to create a new variable it is necessary to fill these items: To use the created variable the field “Enable Variable”...
- Page 15 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 15 of 30 Industrial Electronic Devices If the field “Use Five Modbus Register” and the “Type of Data” is “Time Point” it is possible to read the information of Year, Month, Day, Hour, Minutes on five consecutive Modbus registers without decoding the data (if not selected the values are the same of the reply of the slave device, so coded with a determinate structure).
- Page 16 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 16 of 30 Industrial Electronic Devices SECTION VARIABLES (BY POSITION): Selecting the desired node it is possible to add a variable. In order to create a new variable it is necessary to fill these items: To use the created variable the field “Enable Variable”...
- Page 17 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 17 of 30 Industrial Electronic Devices Example: 0x68 - Start Byte 0xBD - L Fied 0xBD - L Field 0x68 - Start Byte 0x08 - C Field 0x02 - A Field 0x72 - CI Field Identification Number (or Secondary Address) putted in...
- Page 18 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 18 of 30 Industrial Electronic Devices ECTION ELETE TEMS If it is necessary to delete a node or a variable, you have to select the node or the variable and then press the “DELETE ITEM”...
- Page 19 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 19 of 30 Industrial Electronic Devices Possible choices for the fields used to create a variable: Type of Data: Function Field: |_Energy (Wh) |_Instantaneous Value |_Energy (J) |_Minimum Value |_Volume (m |_Maximum Value...
- Page 20 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 20 of 30 Industrial Electronic Devices VIFE: |_ Not Selected |_ Period of tariff months(s) |_ Credit of the nominal local legal currency units |_ Period of tariff year(s) |_ Debit of the nominal local legal currency units |_ dimensionless/ no VIF |_ Access Number (transmission count)
- Page 21 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 21 of 30 Industrial Electronic Devices |_ per second |_ Duration of limit exceed |_ per minute |_ Duration of first/last |_ per hour |_ Date(/time) of first/last begin/end |_ per day |_ Multiplicative currection factor |_ per week...
- Page 22 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 22 of 30 Industrial Electronic Devices Swap Identification: This field is used for select the Swap mode of Identification Number. At the moment there are these possibilities: None;...
- Page 23 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 23 of 30 Industrial Electronic Devices To know the meaning of value read in the “Modbus Re Scale” field, you must follow this table (x = Value read in Modbus Re Scale): Description Range Coding Range...
- Page 24 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 24 of 30 Industrial Electronic Devices Data type F: Min (0 … 59); Hour (0 … 23); Day (1 … 31); Month (1 … 12); Year (0 … 99); Time Invalid (0=Valid, 1=Invalid);...
-
Page 25: Update Device (Only For Hd67044-B2 Series)
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 25 of 30 Industrial Electronic Devices UPDATE DEVICE (ONLY FOR HD67044-B2 SERIES): By pressing the “Update Device” button it is possible to load the created Configuration into the device;... - Page 26 User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 26 of 30 Industrial Electronic Devices At this point the configuration/firmware on the device is correctly update. Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67044- B2-xxx device.
-
Page 27: Mechanical Dimensions
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 27 of 30 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67044-B2-xxx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 28: Order Codes
B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67044: M-Bus / Modbus TCP - Converter Order Code: HD67044-B2-20 Converter M-Bus / Modbus TCP (up to 20 slaves connected to M-Bus) Order Code: HD67044-B2-40 Converter M-Bus / Modbus TCP (up to 40 slaves connected to M-Bus) -
Page 29: Disclaimer
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 29 of 30 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 30: Warranties And Technical Support
User Manual M-Bus Master / Modbus TCP Slave Document code: MN67044_ENG Revision 2.001 Page 30 of 30 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
