NOCH Bridge Donau Assembly Instructions

Read and follow these safety precautions and
instructions carefully before use. This product is a
model building item and not a toy. For appropriate
application and use, tools like a sharp cutter, a
sharp pair of scissors and special glue are neces-
sary. Therefore, appropriate work with this
model building product does pose risk of in-
jury! For that reason this product is not for children!
Keep this product as well as all accessories
(glue, paints, cutter etc.) out of reach of chil-
dren under 3 years of age! For the use of paints
and glues please follow these safety precau-
tions carefully: Do not eat, drink or smoke. Avoid
any contact with eyes, skin or mouth. Do not
breathe any vapours. Keep away from ignition
sources. Follow the instructions and safety precau-
tions of the manufacturer carefully. First aid for
contact with eyes: Flush the eye with clean water
holding the eyelid open. Immediately consult medi-
cal advice. Keep these instructions safe.
1. Package Contents
The following items should be
enclosed:
Package Contents
Brücken-Fahrbahn
2 top side bridge bases
2 underside bridge bases
1 underside bridge base
2 stringboard bridge bases
4 stringboard bridge bases
Bridgehead
2 inside parts
4 side parts
2 base parts
Pylon Plastic Parts
Bag A2 pier tops
Bag E1 segment holders and pillar parts
Bag F pillar parts
Bag F1 pillar parts
Bag G pillar parts
Bag I counter bearings
Bag J (3x) bridge caps
Bag K (2x) assembly aids 10 pieces
Bag L (2x) bridge railings red
Bag L1 (2x) bridge railings red
Bag M suspension rope, 1 rope, 2 terminal strips, 10 screws
Sheet (2x) embossed cardboard wall plates
We recommend taking an inventory of
the contents. If something is missing,
please contact us for assistance.
Assembly Instructions Bridge »Donau «
53503
Assembly Instructions for
Bridge »Donau«
Double track, 100 cm long,
can be shortened
2. Base Construction
The base of a model railroad layout
should be of low vibration and without
deformations.
blockboard that is mounted on a sta-
ble frame (for example a NOCH alu-
minium frame).
3. Tools and Materials
In order to properly assemble the
bridge, we recommend the following
tools and materials:
• Small crosstip screwdriver
• Hand or electric drill with 1,0 mm
and 2,5 mm drill bits
• Small water-level
• Side cutter
• Small iron rasp
• Small angle with approximately
8 cm brackets
plywood, 500 x 145 mm
plywood, 360 x 125 mm
plywood, 280 x 125 mm
plywood, 500 x 15 mm
plywood, 250 x 15 mm
plywood, 133 x 105 mm
plywood, 127 x 60 mm
plywood, 133 x 56 mm
• Cutter for deflashing the cut angle
parts and bridge caps
• Grey paint and paintbrush for
We recommend a
4. Glue
We recommend a liquid, plastic safe
model glue for the plastic parts. Apply
white glue for the wooden parts.
When you assemble wood and plastic
parts, use all purpose glue or contact
glue. Please visit your local hobby
shop to purchase the glue.
5. Assembly
Note: Take enough time for assem-
bling the bridge. The different glued
parts need sufficient time to dry.
Please keep to the given time and
profit from our experience.
In this way the bridge will give you
satisfaction and enrich your layout.
The bridge is planned with two mod-
ern piers in the middle. But you can
also share the bridge 1/3 to 2/3 if your
model landscape requires (e. g. 2/3
water and 1/3 track or road). To avoid
mistakes we first recommend to stick
the parts together without glue. Your
work will be easier if you mark the
letters on the parts with a pencil
when taking them out of the bags. So
you will not mix up the parts.
Start with the gluing of the plastic
14 parts
parts from bag A2 (see illustration 1.)
12 parts
16 parts
26 parts
6 parts
8 parts
60 parts
20 pieces
12 parts
8 parts
2 pieces

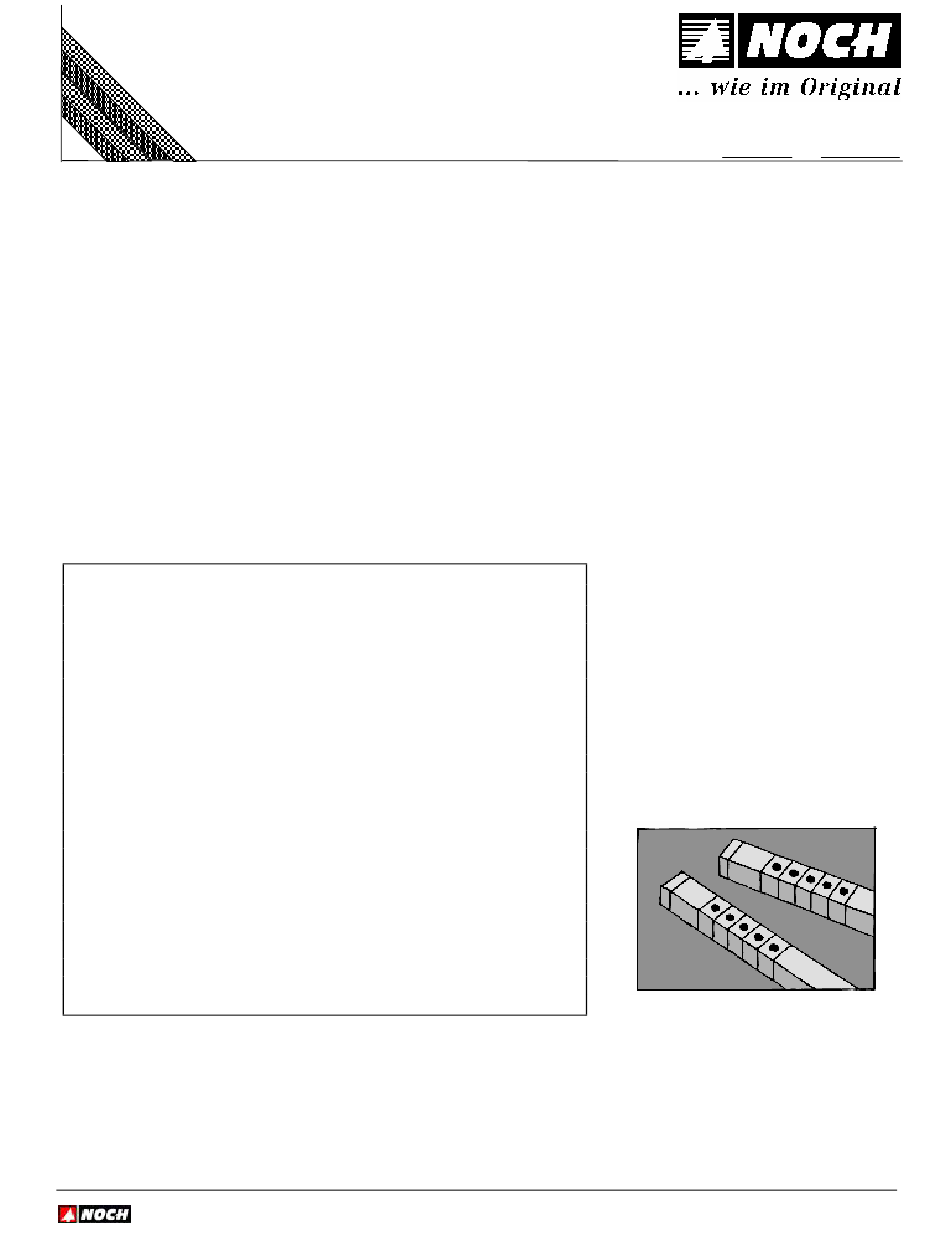

illustration 1
NOCH GmbH & Co. KG
Postfach 1454, D-88230 Wangen
Internet: www.noch.de oder www.noch.com
painting the visible wooden parts.
Seite 1
