88300 ∙ 88301 ∙ 88305 ∙ 88306
Produktdetails
»Meran« und »Interlaken«
· Fahrfertige Modellbahnanlage im Aluprofil-Koffer
(Außenmaße Koffer: 79,5 x 54,5 cm, 16 cm hoch)
· Gelände aus Struktur-Hartschaum, komplett ausgeschmückt
· Zwei Bahnstromkreise, fahrfertig montiert
· Steuerpult mit zwei Fahrreglern
· Besondere Fahrfunktionen:
- Langsamfahrt für jedes Gleis einstellbar
- Geschwindigkeits-Synchronisierung zwischen den
Bahnstromkreisen einstellbar
· Vier beleuchtete Gebäude. Lichter einzeln schaltbar oder über Licht-
Automatik zu betreiben – beim Modell »Interlaken« zusätzlich ein
beleuchteter Weihnachtsbaum.
· Anschluss erfolgt über beiligendes Steckernetzgerät
(Eingang: 100 – 240 V, Ausgang: 9 V Gleichstrom, 1,2 A) oder mit
9-V-Blockbatterie (nicht enthalten)
· Hinweis Zugzusammenstellung: Wegen der engen Radien sollten
die eingesetzten Waggons nicht länger als 8,5 cm sein
Betriebsanleitung für Modellbahnkoffer
Instruction Manual for Model Railway Briefcase
»Meran« & »Interlaken«
Product Details
»Meran« and »Interlaken«

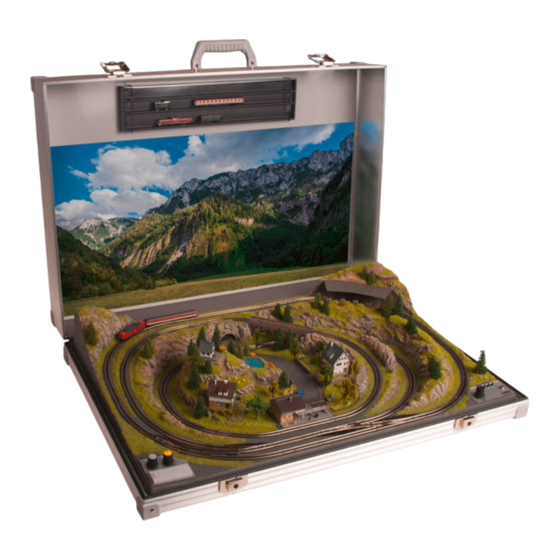

· Ready-to-run model railway layout in an aluminium briefcase
(outer dimensions briefcase: 79.5 x 54.5 cm, 16 cm high)
· Structured hard foam layout, completely decorated
· Two train circuits, ready assembled
· Control box with 2 train controllers
· Special speed functions:
- adjustable slow speed for each track
- tunable speed synchronization of both track courses
· Four illuminated houses. The lights can be switched individually or
by automatic light operation – the model »Interlaken« furthermore
includes an illuminated Christmas Tree.
· Connection is made by included power supply (input: 100 – 240 V,
output: 9 V DC, 1,2 A) or with a 9 V battery (not included)
· Note for train combination: Please make sure that wagons
are not longer than 8.5 cm because of the tight radius

Advertisement

loading
Need help?

Need help?

Do you have a question about the Meran and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NOCH Meran

  • Page 1 88300 ∙ 88301 ∙ 88305 ∙ 88306 Betriebsanleitung für Modellbahnkoffer Instruction Manual for Model Railway Briefcase »Meran« & »Interlaken« Produktdetails Product Details »Meran« und »Interlaken« »Meran« and »Interlaken« · Fahrfertige Modellbahnanlage im Aluprofil-Koffer · Ready-to-run model railway layout in an aluminium briefcase (Außenmaße Koffer: 79,5 x 54,5 cm, 16 cm hoch)
  • Page 2 Lichtautomatik aktivieren: Wenn Sie den Taster für die Lichtsteuerung lange drücken, werden die Hausbeleuchtungen in einer zufälligen Folge ein- und wieder ausgeschaltet und bringen so noch mehr Leben auf die Anlage. Die rote LED Die Beleuchtung in den Häusern kann auch einzeln ein- und aus geschaltet werden, Anlage fehlerfrei indem der Lichttaster zwei Mal (für das erste Haus) bis fünf Mal (für das vierte Haus)
  • Page 3 How to Operate Your Briefcase Layout LEDs On/Off button (reset button) Button for the inner track circuit (track 2) Button for the outer track circuit (track 1) Button for light control Speed controller for the outer circuit (track 1) Power adapter Controller for house lighting Speed controller for the inner circuit (track 2) Battery box...
  • Page 4 Art.-Nr. / Ref. 7297001 7297002 7297004 7297005 7297009 7297024 7297026 7297027 7297030 7297032 7297033 7297040 Trennung Disconnection NOCH GmbH & Co. KG ∙ Lindauer Straße 49 ∙ D-88239 Wangen im Allgäu ∙ E-Mail: info@noch.de ∙ www.noch.de ∙ www.noch.com 04/ 2018...
