Pressure Washer
Pressure Washer
CAUTION: Read the instructions before using the product.
CAUTION: Read the instructions before using the product.
95817_IM_TTB2200PRW_20200702.indd 1
2200W High
2200W High
TTB2200PRW
TTB2200PRW
EAN: 5059340124131
EAN: 5059340124131
Ref. No.: 165KH
Ref. No.: 165KH
EN
EN
BX220IM
BX220IM
2020/9/21 下午2:06
Advertisement
Table of Contents
Related Manuals for Kingfisher Titan TTB2200PRW
Summary of Contents for Kingfisher Titan TTB2200PRW

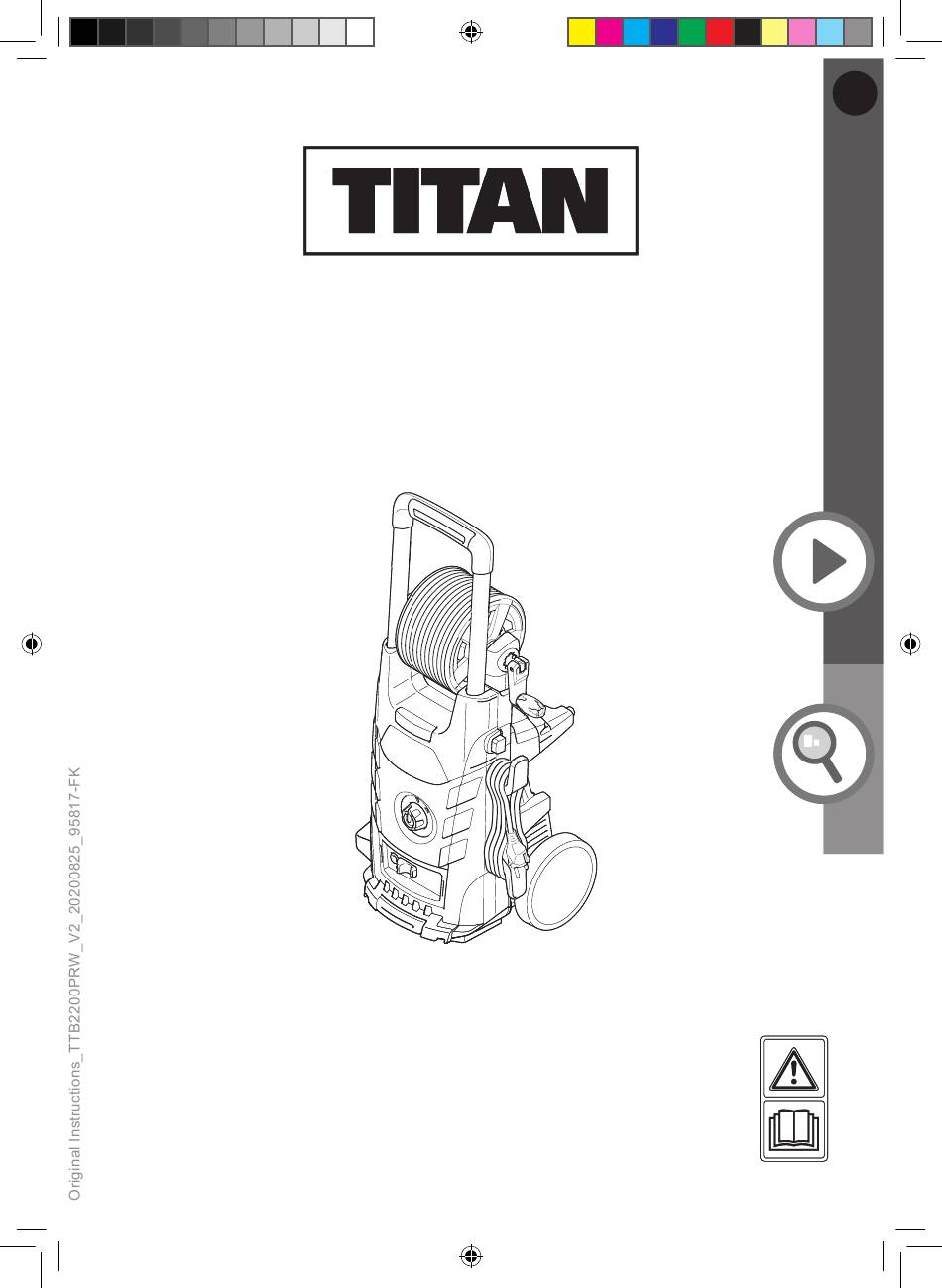

- Page 1 2200W High 2200W High Pressure Washer Pressure Washer TTB2200PRW TTB2200PRW EAN: 5059340124131 EAN: 5059340124131 Ref. No.: 165KH Ref. No.: 165KH CAUTION: Read the instructions before using the product. CAUTION: Read the instructions before using the product. BX220IM BX220IM 95817_IM_TTB2200PRW_20200702.indd 1 2020/9/21 下午2:06...
- Page 2 Congratulations on your purchase of a power tool from Kingfisher International Products B.V. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
- Page 3 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Technical Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee...
-
Page 4: Safety Warnings
Safety information TTB2200PRW by TITAN Safety warnings 1. Machines shall not be used by children. Children should be supervised to ensure that they do not play with the product. 2. This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in a safe way and understand the hazards... - Page 5 TTB2200PRW by TITAN Safety information 9. WARNING: To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer. 10. WARNING: Water that has flowed through backflow preventers is considered to be non-potable. 11. WARNING: Remove the plug from the socket-outlet and disconnected from the power source during cleaning or maintenance and when replacing parts or converting the machine to another function.
- Page 6 Safety information TTB2200PRW by TITAN Safety warnings 21. Never leave the product unattended when it is running. 22. Do not allow vehicles to drive over the pressure hose. 23. Do not move the product by pulling on the pressure hose. 24.
- Page 7 TTB2200PRW by TITAN Safety information 33. The electric supply connection shall be made by a qualified electrician and comply with IEC 60364- 1. It is recommended that the electric supply to this machine should include a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove the earth circuit.
- Page 8 Safety information TTB2200PRW by TITAN Safety warnings 7. Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g. fingers going white; as well as specific diseases such as carpal tunnel syndrome.
- Page 9 TTB2200PRW by TITAN Safety information 3. Danger of injury and property damage caused by flying objects. WA R N I N G ! T h i s p r o d u c t p r o d u c e s a n electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce...
- Page 10 Safety information TTB2200PRW by TITAN Symbol Read the instruction manual. Wear hearing protection. Wear eye protection. Wear respiratory protection. Wear protective gloves. Wear protective, slip-resistant footwear. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
-
Page 11: Your Product
TTB2200PRW by TITAN Your product Your product 1. Transportation handle 13. Nozzle holder 2. Lock-off button 14. Water inlet 3. Supply cord holder (X2) 15. Soap tank 4. Supply cord 16. Pressure hose 5. On/off switch I/O 17. Rotary nozzle 6. -
Page 12: Technical Specifications
Technical specifications Your product TTB2200PRW by TITAN Technical specifications General : 220 – 240 V ~ / 50 Hz > Rated voltage/frequency > Maximum permissible mains impedance : 0.275 Ω > Rated input : 2200 W > Rated pressure : 11.5 MPa >... - Page 13 Technical specifications TTB2200PRW by TITAN Your product The sound values have been determined according to noise test code given in EN 60335-2-79, using the basic standards ISO 3744 and ISO 11203. The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary.
-
Page 14: You Will Need
Before you start TTB2200PRW by TITAN Unpacking WARNING! The product is heavy, ask another person for assistance if required! 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. - Page 15 TTB2200PRW by TITAN Before you start NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. Holders > Attach the two supply cord holders (3) to the product Click (Fig.
- Page 16 Before you start TTB2200PRW by TITAN Accessories An extension lance (24) and several accessories are supplied with this product. Please check the technical specification of any accessories that you purchase to ensure they are compatible with this product. Illustration Description Application Extension lance (24) To be used in conjunction...
- Page 17 TTB2200PRW by TITAN Before you start Attaching accessories > Align the tongues (24a) of the extension lance (24) with the grooves of the connection port of the spray gun (8) and insert it. (Fig. 5, step 1). > Securely fit the extension lance (24) by turning it clockwise to lock it in place (Fig.
- Page 18 Before you start TTB2200PRW by TITAN Accessories Rotary nozzle > The high pressure rotary nozzle is intended for maximum cleaning effect. Keep the spray wand 15-20 cm away from the surface being cleaned at all times. > Always attach the extension lance (24) when using the rotary nozzle (17). Fig.
- Page 19 TTB2200PRW by TITAN Before you start Rims brush The rims brush is specially designed to clean rims and vehicle wheels. 1. Attach the extension lance (24) onto the spray gun (8) (Fig. 11). 2. Attach the rims brush (22) onto the extension lance. 3.
- Page 20 Before you start TTB2200PRW by TITAN Accessories Fig. 13 WARNING! The patio brush is only intended to be used on flat patio surfaces! Do not attempt to use it on steps or use it vertically on walls. Never attempt to touch the rotating nozzle or parallel use while operating.
-
Page 21: Connection To Water Supply
TTB2200PRW by TITAN Before you start Soap tank Some cleaning tasks can be completed with water alone, but for most tasks it is advantageous to use a detergent. A detergent ensures a quick soaking of the dirt allowing the high pressure water to penetrate and remove dirt more effectively. >... -
Page 22: Connection To Power Supply
Before you start TTB2200PRW by TITAN Connection to water supply > Attach the water hose adaptor (19) on the water inlet (14). > Attach a suitable water hose (not included) onto the water supply and then the other end onto the water hose adaptor (19) (Fig. 16). Fig. - Page 23 more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity 95817_IM_TTB2200PRW_20200702.indd 23 2020/9/21 下午2:06...
-
Page 24: Intended Use
Product functions TTB2200PRW by TITAN Intended use This high pressure washer TTB2200PRW is designated with a rated input of 2200 Watts. The intended use of this product covers the cleaning of vehicles, buildings, terraces, facades and garden equipment using clean water and biodegradable chemical detergents. - Page 25 TTB2200PRW by TITAN Product functions Holders Supply cord holder Use the supply cord holder (3) to store the supply cord (4) (Fig. 18). Spray gun holder Use the upper spray gun holder (9) and lower spray gun holder (7) to store the spray gun (8), extansion lance (24) and vario nozzle (18) (Fig.
-
Page 26: On/Off Switch
Product functions TTB2200PRW by TITAN On/off switch > Set the on/off switch (5) in its “1” position to start the product (Fig. 20, A). > Set the on/off switch (5) in its “0” position to switch off the product (Fig. 20, B). Fig. -
Page 27: Overload Cut-Out
TTB2200PRW by TITAN Product functions / Operation Product functions Overload cut-out In case it is overloaded, the motor stops. In this case, switch the product off, remove the mains plug and let it cool down for 10 minutes, then repeat the startup procedure as described in below chapter-“operation”. -
Page 28: Operation
Product functions Operation TTB2200PRW by TITAN Operation WARNING! Do not operate the product with a closed water tap! This leads to dry running and subsequently damages the product! Kickback forces result from squeezing the trigger! Therefore, always hold the spray gun with both hands! Pay attention to safe posture! Improper handling can lead to injuries! WARNING! Do not operate the product when the ambient temperature is below 0 °C. - Page 29 TTB2200PRW by TITAN Care and maintenance Operation Tips WARNING! Prevent water from penetrating the air vents of the product to minimise the risk of damage to the product. > Dissolve dirt by applying the detergent mixed with water to the surface while still dry.
-
Page 30: After Use
Care and maintenance Operation TTB2200PRW by TITAN After use > Release the trigger (8b) (Fig. 23). > Turn the on/off switch to “0” position. > Turn off the water tap. > Squeeze the trigger to release the pressure still present in the product. WARNING! Only separate the high-pressure hose from the spray gun and the water hose from the product when no more pressure exists in the system! Also ensure that the product is turned off and separated... -
Page 31: General Cleaning
TTB2200PRW by TITAN Care and maintenance The golden rules for care WARNING! Always squeeze the trigger to release the pressure still present in the product first. Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! >... -
Page 32: Maintenance
Care and maintenance TTB2200PRW by TITAN Maintenance Before and after each use, check the product and accessories (such as application tools) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements. Spare parts/Replacement parts The following parts of this product may be replaced by the consumer. -
Page 33: Power Cord
TTB2200PRW by TITAN Care and maintenance Decalcification From time to time – according to the nature of your tap water – calcium deposits form in the product and accessories. The strength of the deposits (and thus the frequency of decalcification) depends upon the degree of hardness of the water and how often the product is used. - Page 34 Care and maintenance TTB2200PRW by TITAN UK plug WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. Only fit an approved 13 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse.
-
Page 35: Troubleshooting
TTB2200PRW by TITAN Care and maintenance Troubleshooting Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! - Page 36 Care and maintenance Troubleshooting TTB2200PRW by TITAN Troubleshooting Problem Possible cause Solution 3. Oil leak 3.1. Seals worn 3.1. Contact your nearest authorised service centre 4. Strong 4.1. Nozzle clogged 4.1. Clean the nozzle pressure 4.2. Water inlet volume is 4.2.
-
Page 37: Recycling And Disposal
TTB2200PRW by TITAN Troubleshooting / Recycling and disposal / Guarantee Care and maintenance Problem Possible cause Solution 8. No water jet 8.1. Trigger is not squeezed 8.1. Squeeze the trigger 8.2. Trigger lock is activated 8.2. Deactivate the trigger lock 8.3. - Page 38 Denumirea și adresa producătorului sau a reprezentantului său autorizat: Name und Anschrift des Herstellers oder seines Bevollmächtigten: Nombre y dirección del fabricante o de su representante autorizado: Nome e endereço do fabricante ou do respetivo mandatário: Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam, The Netherlands This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 39 Signed for and on behalf of/Signé par et au nom de/Podpisano w imieniu/Semnat pentru și în numele/Unterzeichnet für und im Namen von/ Firmado en nombre de/Assinado por e em nome de: pment Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam,...
- Page 40 Manufacturer,Fabricant,Producent, Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.com To view instruction manuals online, visit www.kingfisher.com/products 95817_IM_TTB2200PRW_20200702.indd 40...
