Kingfisher TTB2200PRW-DSS Manual

2200w high pressure washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN

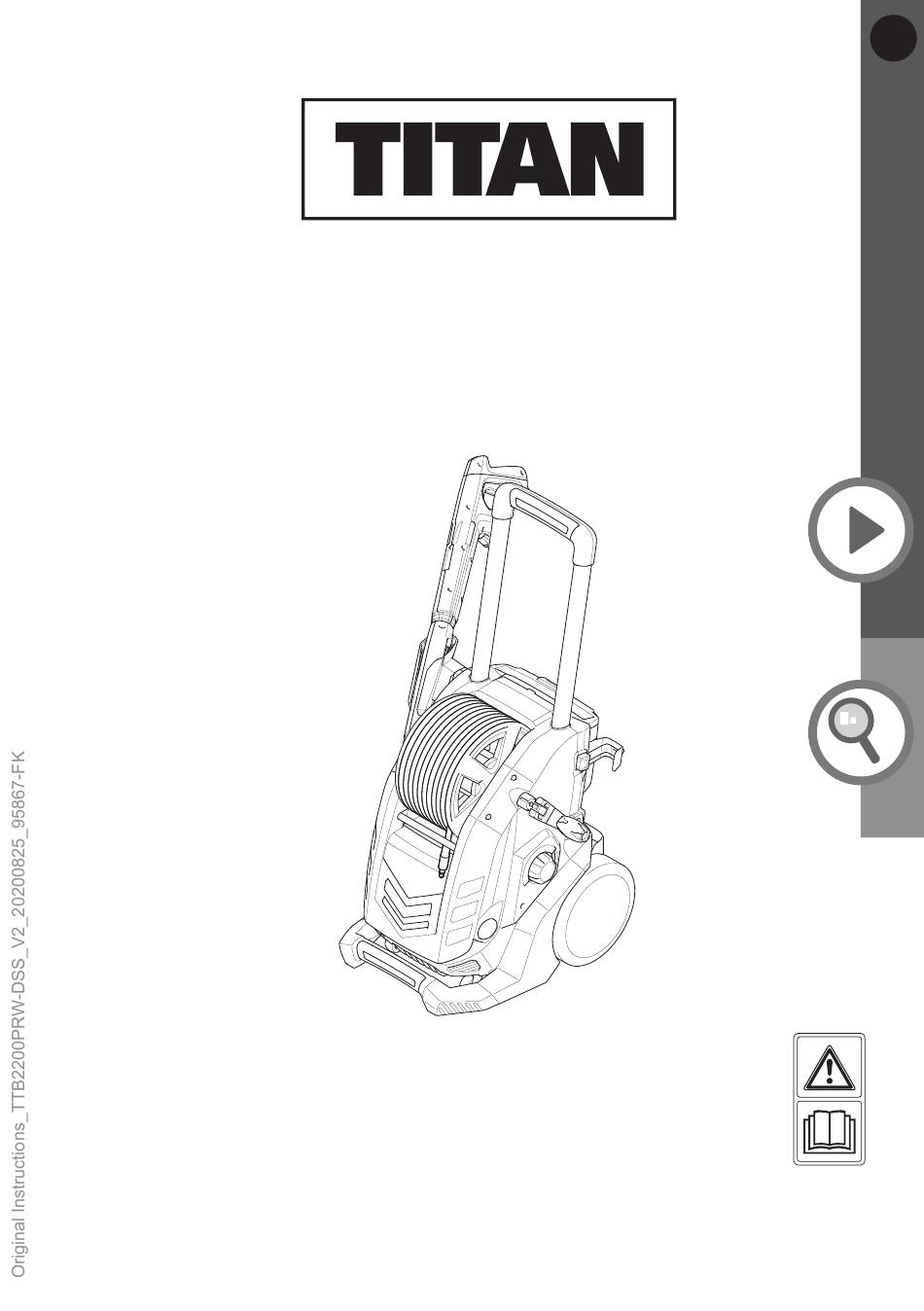

2200W High
Pressure Washer
TTB2200PRW-DSS
EAN: 5059340136264
Ref. No.: 766KH
CAUTION:
Read the instructions before using the product.
BX220IM

Advertisement

Table of Contents
loading

Related Manuals for Kingfisher TTB2200PRW-DSS

Summary of Contents for Kingfisher TTB2200PRW-DSS

  • Page 1 2200W High Pressure Washer TTB2200PRW-DSS EAN: 5059340136264 Ref. No.: 766KH CAUTION: Read the instructions before using the product. BX220IM...
  • Page 2 Congratulations on your purchase of a power tool from Kingfisher International Products B.V. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
  • Page 3 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity...
  • Page 4 TTB2200PRW-DSS by TITAN Safety information Safety warnings 1. Machines shall not be used by children. Children should be supervised to ensure that they do not play with the product. 2. This machine can be used by people with reduced physical, sensory or mental capabilities or lack of...
  • Page 5 TTB2200PRW-DSS by TITAN Safety information 9. WARNING: To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer. 10. WARNING: Water that has flowed through backflow preventers is considered to be non-potable. 11. WARNING: Remove the plug from the socket-outlet...
  • Page 6 TTB2200PRW-DSS by TITAN Safety information Safety warnings 21. Never leave the product unattended when it is running. 22. Do not allow vehicles to drive over the pressure hose. 23. Do not move the product by pulling on the pressure hose.
  • Page 7 TTB2200PRW-DSS by TITAN Safety information 33. The electric supply connection shall be made by a qualified electrician and comply with IEC 60364- 1. It is recommended that the electric supply to this machine should include a residual current device that...
  • Page 8 TTB2200PRW-DSS by TITAN Safety information Safety warnings 7. Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g. fingers going white; as well as specific diseases such as carpal tunnel syndrome.
  • Page 9 TTB2200PRW-DSS by TITAN Safety information 3. Danger of injury and property damage caused by flying objects. WA R N I N G ! T h i s p r o d u c t p r o d u c e s a n...
  • Page 10 TTB2200PRW-DSS by TITAN Safety information Symbol Wear hearing protection. Wear eye protection. Wear respiratory protection. Wear protective gloves. Wear protective, slip-resistant footwear. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
  • Page 11 TTB2200PRW-DSS by TITAN Your product Your product...
  • Page 12 TTB2200PRW-DSS by TITAN Your product Your product 1. Transportation handle 13. Rear wheel (X2) 2. Hose reel 14. Brake pedal (X2) 3. Pressure hose 15. Soap tank 4. Winding handle 16. On/off switch 0/1/2 5. Front wheel (X2) 17. Lock-off button 6.
  • Page 13 TTB2200PRW-DSS by TITAN Your product : 10 m > Max. length Sound level : 78.8 dB(A) > Sound pressure level L : 2.50 dB(A) > Uncertainty K : 90.3 dB(A) > Measured sound power level L : 2.50 dB(A) > Uncertainty K : 93 dB(A) >...

  • Page 14: Table Of Contents

    TTB2200PRW-DSS by TITAN Before you start Unpacking WARNING! The product is heavy, ask another person for assistance if required! 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable.

  • Page 15: Spray Gun Holder

    TTB2200PRW-DSS by TITAN Before you start NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. Spray gun holder 1. Slide the spray gun holder (8) to the product and secure it with the screw (8a) (Fig.
  • Page 16 TTB2200PRW-DSS by TITAN Before you start Assembly Fig. 3 Accessories Two extension lances (7, 21) and several accessories are supplied with this product. Please check the technical specification of any accessories that you purchase to ensure they are compatible with this product.
  • Page 17 TTB2200PRW-DSS by TITAN Before you start Soap tank (15) High pressure setting to apply detergent. To be used in conjunction with the spray gun. Rims brush (20) with Cleaning of wheels and adaptor (20a) rims on vehicles. To be used in conjunction with the extension lance.

  • Page 18: Rotary Nozzle

    TTB2200PRW-DSS by TITAN Before you start Accessories Removing accessories 1. Press the release button (7b) (Fig. 6, step 1) and remove the nozzle (step 2). 2. Press the extension lance (7) towards the spray gun (9) (Fig. 7, step 1) and turn it anti-clockwise (step 2) to remove it (step 3).

  • Page 19: Rims Brush

    TTB2200PRW-DSS by TITAN Before you start Rims brush The rims brush is specially designed to clean rims and vehicles wheels. 1. Attach the extension lance (7) onto the spray gun (9) (Fig. 10). 2. Attach the rims brush (20) onto the extension lance.

  • Page 20: Soap Tank

    TTB2200PRW-DSS by TITAN Before you start Accessories 4. Securely fit the short extension lance (21) by turning the sleeve (21b) clockwise (step 3). 5. Align and insert the tongues (7a) of the extension lance (7) into the grooves of the short extension lance (21) connection port (step 4).

  • Page 21: Fig. 13

    TTB2200PRW-DSS by TITAN Before you start Fig. 13 4. Turn the flow rate knob (15b) to adjust the detergent flow rate. During operation the detergent mixes automatically with water and is released through the detergent nozzle (15c). NOTE: Only use mild, environmentally friendly detergents. Never use aggressive chemicals, abrasive detergents or similar to avoid damage to your health, the product and the environment.

  • Page 22: Fig. 14

    TTB2200PRW-DSS by TITAN Before you start Connection to the water supply 1. Attach the water inlet hose adaptor (22) on the water inlet (6) (Fig. 14). 2. Attach a suitable water hose (not included) onto the water supply and then the other end onto the water inlet hose adaptor (22).
  • Page 23 TTB2200PRW-DSS by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity...
  • Page 24 TTB2200PRW-DSS by TITAN Product functions Intended use This high pressure washer TTB2200PRW-DSS is designated with a rated input of 2200 Watts. The intended use of this product covers the cleaning of vehicles, buildings, terraces, facades and garden equipment using clean water and biodegradable chemical detergents.
  • Page 25 TTB2200PRW-DSS by TITAN Product functions Holders Fig. 16 Supply cord holder Use the supply cord holder (12) to store the supply cord (11) (Fig. 16). Spray gun holder Use the upper spray gun holder (8) to store the spray gun (9) and extension lance (7) (Fig.
  • Page 26 TTB2200PRW-DSS by TITAN Product functions On/off switch This product is equipped with dual speed system (DSS). 1. Set the on/off switch (16) in its “1” position to start the product and work under ECO MODE (low speed) (Fig. 18, A). ECO MODE can save up to 25% energy consumption.
  • Page 27 TTB2200PRW-DSS by TITAN Product functions Rear wheel brake Use the brake to lock the rear wheels and prevent unintended movement of the product. 1. Step down the brake pedal (14) to lock the rear wheel. Slightly move the wheel to ensure the brake lever is engaged properly. (Fig. 20).
  • Page 28 TTB2200PRW-DSS by TITAN Product functions / Operation Automatic motor start-stop device The automatic motor start-stop device is operated by the trigger (9d) of the spray gun (9). When the trigger (9d) is released the dynamic pressure automatically cuts out the motor. When the trigger (9d) is depressed the automatic drop in pressure starts the motor and the pressure is restored after a very slight delay.
  • Page 29 TTB2200PRW-DSS by TITAN Operation WARNING! Do not operate the product when the ambient temperature is below 0 °C. Water will freeze inside the product and damage it. 1. Active both brakes to lock the rear wheels of the product. 2. Connect the product to water supply as described.
  • Page 30 TTB2200PRW-DSS by TITAN Operation Tips WARNING! Prevent water from penetrating the air vents of the product to minimise the risk of damage to the product. 1. Dissolve dirt by applying the detergent mixed with water to the surface while still dry. Allow the detergent to rest on the surface for a few minutes, but do not let the detergent dry.
  • Page 31 TTB2200PRW-DSS by TITAN Operation / Care and maintenance After use 1. Release the trigger (9d) (Fig. 22). 2. Turn the on/off switch to “0” position. 3. Turn off the water tap. Fig. 22 4. Squeeze the trigger to release the pressure still present in the product.
  • Page 32 TTB2200PRW-DSS by TITAN Care and maintenance The golden rules for care 3. Inspect the product before each use for worn and damaged parts. Do not operate it if you find broken and worn parts. WARNING! Only perform repairs and maintenance work according to...
  • Page 33 TTB2200PRW-DSS by TITAN Care and maintenance Nozzle Remove any dirt deposits from the nozzle (18/19) hole using the cleaning needle (24) (Fig. 23). Fig. 23 Water filter 1. Unscrew and remove the water inlet hose adaptor (22) from the water inlet (6).
  • Page 34 TTB2200PRW-DSS by TITAN Care and maintenance Power cord If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. UK plug If you need to replace the fitted plug, then follow the instructions below.
  • Page 35 TTB2200PRW-DSS by TITAN Care and maintenance Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1. Switch the product off and disconnect it from the power supply.
  • Page 36 TTB2200PRW-DSS by TITAN Troubleshooting Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these...
  • Page 37 TTB2200PRW-DSS by TITAN Troubleshooting Problem Possible cause Solution 4. Strong 4.1. Nozzle clogged 4.1. Clean the nozzle pressure 4.2. Water inlet volume is 4.2. Increase water inlet fluctuations too low quantity 4.3. High-pressure hose is 4.3. Replace high-pressure leaking hose 4.4.
  • Page 38 TTB2200PRW-DSS by TITAN Recycling and disposal / Guarantee Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. The product comes in a package that protects it against damage during shipping.
  • Page 42 • Product name – High Pressure Washer/ Nettoyeur haute pression/ Myjka ciśnieniowa/ Aparat de spălat cu înaltă presiune/ Hochdruckreiniger/ Hidrolimpiadora de alta presión/ Lavadora a alta pressão • Product model – TTB2200PRW-DSS • Type / batch or serial number range 000001 to 999999...
  • Page 43 Signed for and on behalf of/Signé par et au nom de/Podpisano w imieniu/Semnat pentru și în numele/Unterzeichnet für und im Namen von/ Firmado en nombre de/Assinado por e em nome de: Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam,...
  • Page 44 Manufacturer, Fabricant, Producent, Producător, Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online,...
