ABA12

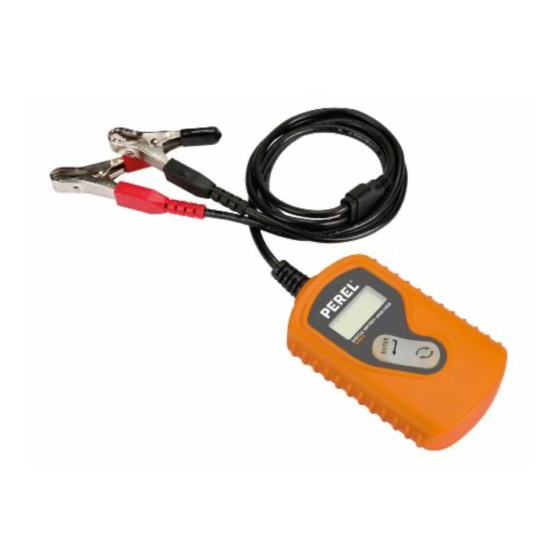

DIGITAL AUTOMOTIVE 12 V BATTERY ANALYSER
DIGITALE LOODACCUTESTER - 12 V
ANALYSEUR NUMÉRIQUE DE BATTERIES - 12 V
COMPROBADOR DIGITAL DE BATERÍAS - 12 V
DIGITALER KFZ-BATTERIETESTER - 12 V
CYFROWY ANALIZATOR AKUMULATORÓW - 12 V
ANALISADOR DE BATERIAS DE AUTOMÓVEL - 12 V
ANALIZZATORE DI BATTERIE PIOMBO-ACIDO - 12 V
USER MANUAL
GEBRUIKERSHANDLEIDING
MODE D'EMPLOI
MANUAL DEL USUARIO
BEDIENUNGSANLEITUNG
INSTRUKCJA OBSŁUGI
MANUAL DO UTILIZADOR
MANUALE UTENTE
3
14
25
36
47
58
69
80
Advertisement
Table of Contents
Related Manuals for Perel ABA12
Summary of Contents for Perel ABA12

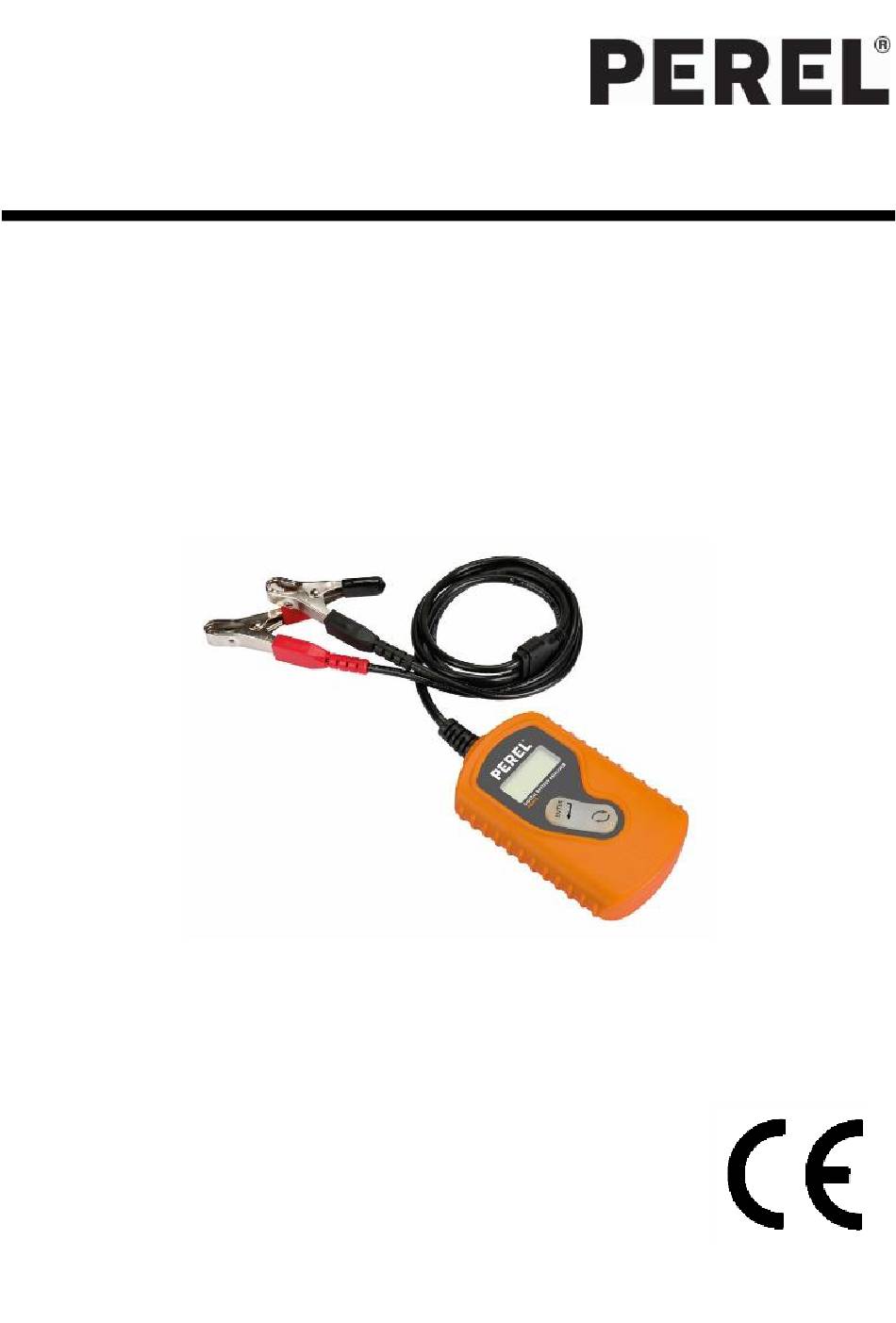

- Page 1 ABA12 DIGITAL AUTOMOTIVE 12 V BATTERY ANALYSER DIGITALE LOODACCUTESTER - 12 V ANALYSEUR NUMÉRIQUE DE BATTERIES - 12 V COMPROBADOR DIGITAL DE BATERÍAS - 12 V DIGITALER KFZ-BATTERIETESTER - 12 V CYFROWY ANALIZATOR AKUMULATORÓW - 12 V ANALISADOR DE BATERIAS DE AUTOMÓVEL - 12 V...
- Page 2 ABA12 V. 01 – 07/09/2015 ©Velleman nv...
-
Page 3: General Guidelines
Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer. -
Page 4: Safety Instructions
ABA12 Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature. Keep this manual for future reference. - Page 5 ABA12 The plates will also be thinner and are composed of a lead “sponge”, similar in appearance to a very fine foam sponge. This gives a very large surface area. If deep cycled, this sponge will quickly be consumed and fall to the bottom of the cells.
-
Page 6: Operation
ABA12 7. Operation 7.1 Connecting the Analyser before Testing Make sure the car’s electronics are switched off, i.e. all doors closed and the engine switched off. Carefully clean the terminal posts and make sure they are free from dust, grease and corrosion. - Page 7 ABA12 Confirm with the enter button. Battery System Standard and Rating Next, choose the battery type and rating according to the markings on the battery. Cold start current value of the most common specifications developed by the SAE and BCI. The most common starting battery rated at 0 °F (-18 °C).
- Page 8 ABA12 measuring standard measuring range 100-2000 100-2000 100-2000 100-2000 26A17-245H52 100-1400 100-1400 100-2000 100-2000 100-1400 Confirm with the enter button. If needed, increase or decrease the value with 5 units by holding the scroll button pressed for 3 seconds. Keep the scroll button pressed for 3 seconds to inverse the direction.
- Page 9 ABA12 7.3 Reading the Test Results There are 5 different test results. Good Battery The battery is in good health and can be used without any problems. Good Battery, Needs Recharging V. 01 – 07/09/2015 ©Velleman nv...
- Page 10 ABA12 The battery is in good health but is low in current. Please recharge. Replace Battery V. 01 – 07/09/2015 ©Velleman nv...
- Page 11 ABA12 The battery is near or has reached the end of its lifecycle. Replace the battery. Damaged Cells, Replace Battery Cells are near or have reached the end of their lifecycle. Replace the battery. V. 01 – 07/09/2015 ©Velleman nv...
-
Page 12: Cleaning And Maintenance
ABA12 Charge Retest The battery is unstable and should be tested again for an accurate result. The battery can be deemed damaged if the retest gives the same results. Note that, if you get these results from an in-vehicle battery, you should disconnect the battery from the circuit and retest before replacing. -
Page 13: Technical Specifications
(incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. - Page 14 ABA12 Appendix 26A17L 115D31L 26A19L 95E41L 30A19L 100E41L 34A19L 105E41L 26B17L 110E41L 28B17L 115E41L 28B19L 120E41L 34B17L 130E41L 34B19L 115F51 36B20L 130F51 38B19L 145F51 38B20L 150F51 40B19L 170F51 42B19L 145G51 44B19L 155G51 44B20L 165G51 46B24L 180G51 50B24L 195G51 55B24L 190H52...
