- Page 1 AMP CENTRAL Reactive load – I.R. Loader Version 1.0 August 2021...
- Page 3 100W. It’s simply a wrong habit. While Amp Central is safely rated up to 100W, we do recommend to use your amplifier at the same volume as you would use with a regular cabinet, or just a bit more perhaps.
- Page 4 With this in mind we built the very first stage of the Amp Central, by creating a proper Dummy Load, or better, a Reactive/Resistive Load, to mimic at the closest possible approximation of a real cabinet.
- Page 5 We think it’s better to start slow and to understand the workings of the Amp Central before diving in and trying the unit. What you need to know to proceed in the safest way, is to consider the Amp Central as a normal guitar cabinet.
-
Page 6: Front Panel

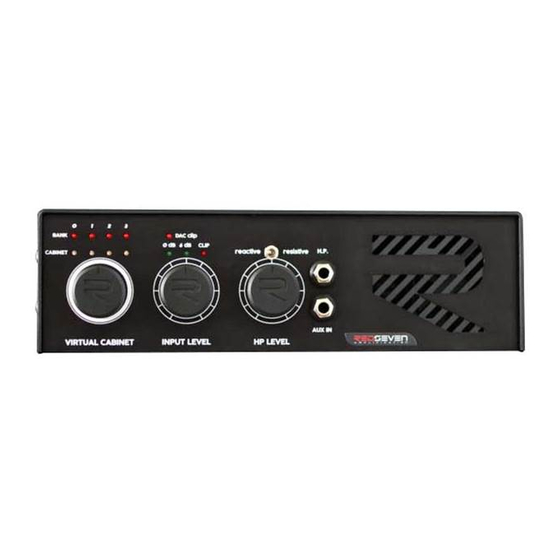

• HEADPHONE LEVEL: this pot controls the output volume of your headphones. Everything coming into the Amp Central both from your amplifier or LINE IN will be affected by this control, using the heaphones output. •... -
Page 7: Back Panel
FROM AMP OUT: this is where you must connect the output of your amplifier. • MIDI INPUT/THRU: Midi input and thru ports for midi connection. Switch between the I.R. by sending Midi CC's to the Amp Central. • USB: connect to your PC/MAC for uploading your own favorite I.R.'s. - Page 8 INPUT SECTION and CALIBRATION The very first thing we recommend to do when you start using the Amp Central is to set the proper input level in order to achieve the highest signal without any clipping. To make this happen, we highly suggest to use the most dynamic sound at your disposal, which usually happens to be your clean channel, or at least the most clean sound you have at your disposal.
- Page 9 Do not use an instrument cable with this output. The AMP CENTRAL is rated at 8 ohm, so you need to connect an 8 ohm cabinet, or a couple of cabinets wired in parallel at 16 ohms each.
- Page 10 Some of the older amps had no fx loop, more modern ones, do have one, but in mono. We decided to place a stereo fx loop in the AMP CENTRAL to let you insert you favorite external effects in the chain. The fx loop is placed between the IR LOADER section and the output of the Amp Central, so this means you’re sending the already processed amp signal with the Impulse...
- Page 11 USB and HOW TO CONNECT THE AMP CENTRAL TO PC/MAC You can connect the Amp Central to your PC/MAC with a USB cable, to upload new I.R.'s by following the next steps: • Power off the Amp Central by unplugging the power connector on the back of the unit;...
- Page 12 AMPCENTRAL device before you copy/past or substitute I.R.'s. OUTPUTS On the back of Amp Central there are two sets of outputs. One is unbalanced (jack connectors), the other one is fully balanced. They are the same outputs but in a different format, XLR can be very convenient to quickly wire the Amp Central to FOH mixers or soundcards.
-
Page 13: Midi Channel
MIDI CHANNEL LIST: MIDI CHANNEL BANK CABINET This is the Control Change list, one for each I.R. Please remember, to select an I.R. on the desired CC, you need to send a value equal or greater than 64 for that desired Control Change: Control Change BANK CABINET... -
Page 14: Troubleshooting
Amplification offer a standard two year full warranty for any component (except to wear subjects). By removing the top or by making any modification to the original state, you will violate the standard warranty and RedSeven Amplification will not be responsible for any damage to people, things or animals. Revision 1.0...
