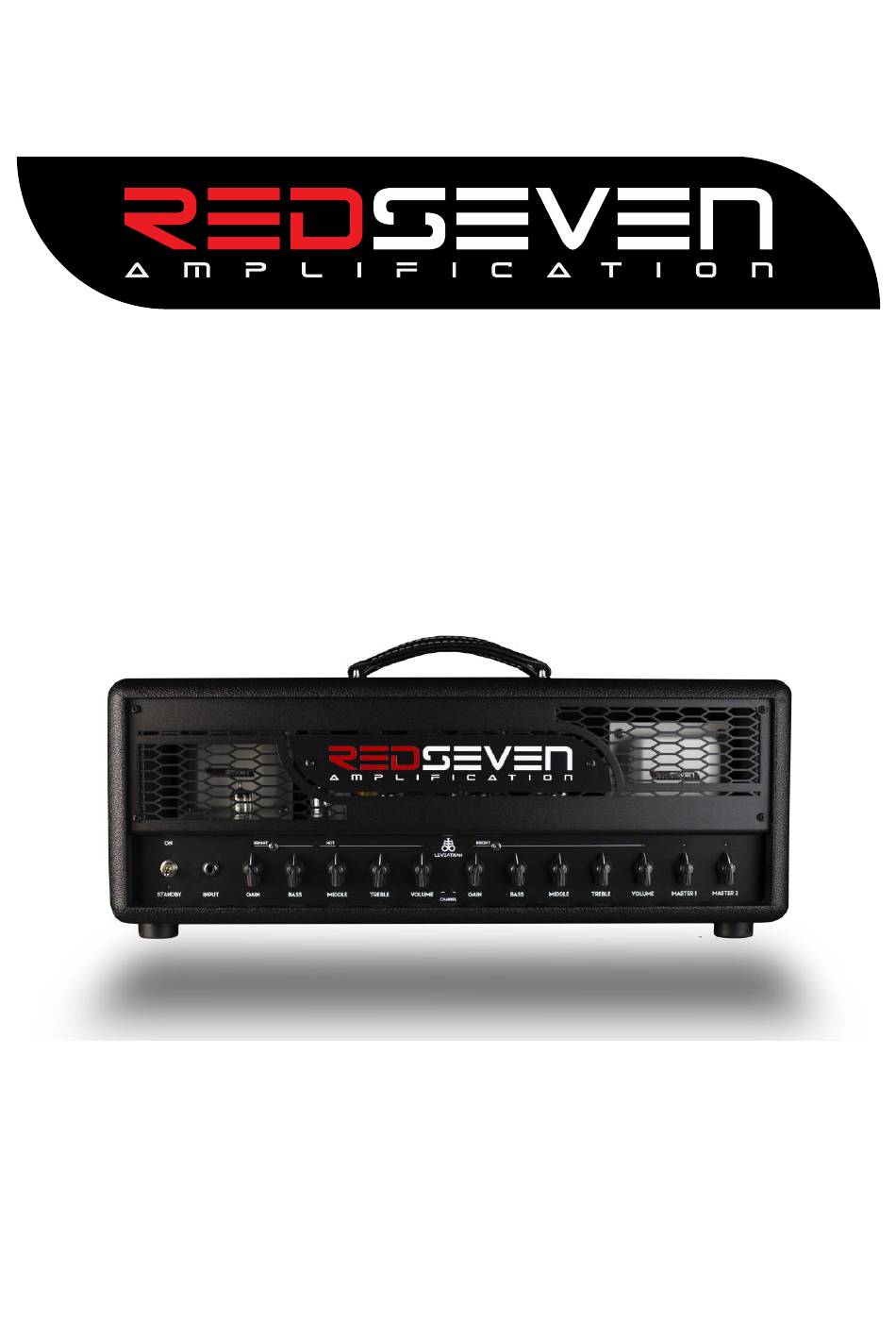

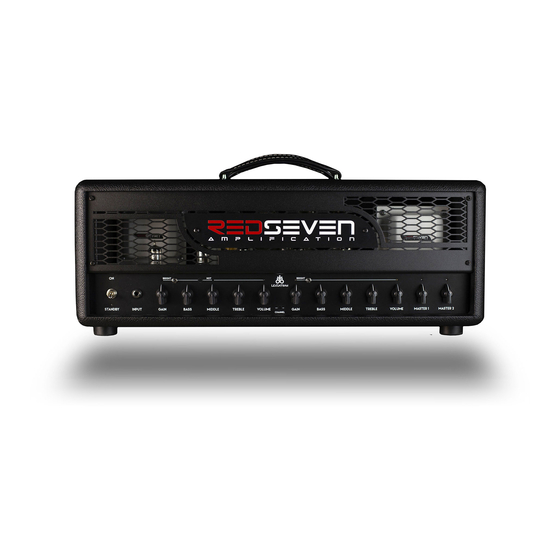

- Page 1 LEVIATHAN model: L120 User Manual...
-
Page 2: Table Of Contents
INDIEX INTRODUCTION pg 3 POWER SUPPLY pg 3 PREMISE pg 5 SOUND DESCRIPTION pg 6 TECHNICAL FEATURES pg 7 FIRST USAGE pg 9 MIDI AND SAVING A PRESET pg 10 LOOP FX pg 11 D50F FOOTSWITCH pg 11 TUBE LAYOUT AND CABINET pg 12 TROUBLESHOTTING pg 13... -
Page 3: Introduction
INTRODUCTION Leviathan is a two channel modern hi-gain style guitar amplifier. Thought of as the ultimate tone weapon, featuring a rich crunchy crisp sound and a tridimensional multi stage hi-gain overdriven channel. Full MIDI implementation (CC and PC), double master volume and with a serial high voltage buffered effects loop it makes Leviathan your life as guitarist easier than ever before. - Page 4 PEOPLE. PLEASE KEEP IN MIND THAT YOU ARE HANDLING A DEVICE WITH POTENTIALLY LETHAL VOLTAGE. PLEASE CAREFULLY READ THIS MANUAL BEFORE TURNING THE AMPLIFIER ON. REDSEVEN AMPLIFICATION ARE NOT RESPONABLE FOR ANY PARTS SUBJECT TO WEAR (LIKE TUBES, POTS, CAPACITORS, ETC). WARNING!!
- Page 5 This amplifier uses potential lethal voltage, it must be used only by expert people! WARNING!! Before insert power cord inside Leviathan, check the voltage plate under IEC socket and be sure to match wall voltage of your country. By developing this amplifier we had few main visions in our minds: ...
-
Page 6: Sound Description
almost every guitar amplifier. By doing this we have developed a very sensitive mid control on the distorted channel, making sure that you have a very special and musical way to express those delicate frequencies. We believe in mids, do not underestimate this frequency range, weʼre serious about this! SOUND DESCRIPTION L120 was born from the demand of our clients to achieve the most brutal hi-gain... -
Page 7: Technical Features
controls you can achieve everything from a scooped metal sound to a vintage style hard rock sound. Quite a lot gain is available here, perfect for solo parts indeed. - CH2: the most brutal hi-gain sound available from our catalog. This is something almost insane for our standard but at the end of the day, lots of music genres use this quantity of saturation. - Page 8 • RED LED: (under STANDBY / ON SWITCH): this led will indicate the state of incoming power supply. It will turn on if everything is ok. • BLUE LEDs: when on, CH1 is activated. • RED LEDs: when on, CH2 is activated. •...
-
Page 9: First Usage
• STORE SWITCH: tactile switch for saving combinations of sounds into amplifier digital memory. • FOOTSWITCH: input jack for Leviathan L120 footswitch. Pay attention: others footswitches can damage the amp. • PRESENCE: global setting for presence control. It acts on both channels. - Page 10 from cabinet to amplifier. Now youʼre ready to put the Power Switch in “POWER ON” position. Leave the amplifier in this state for at least thirty seconds. Plug your signal cable into input jack and youʼre ready to put the Standby Switch in “ON” position.
- Page 11 Leviathan, despite the full tube audio signal path, is equipped with a digital memory which can save combinations (preset) inside the amp. Duality is shipped with a presetted midi channel #1. You canʼt change midi channel on the fly after you have bought it, but you can ask us for a different midi channel at order time.
-
Page 12: Loop Fx
LOOP FX Loop effects on Leviathan is between the preamp output and the power amp input, right before the master volume. Itʼs a buffered 100% serial loop fx with instrument level signal. When loop effect is engaged 100% of your sound will pass thru the effect wired to send/return jacks. - Page 13 L120F FOOTSWITCH Leviathan comes with L120F footswitch. It can operate only with the L120 model. L120F canʼt be used with other amplifiers or devices, since it can be damaged by incorrect use. L120F can basically do all the same things as the player can do with tactile buttons situated on the front panel.
- Page 14 TUBE LAYOUT This amplifier comes with KT88 type tubes in the power amp section and 12AX7B in preamp, selected trusty partners Tube Doctor. Power tube can’t be changed with other type of tubes (i.e 6L6s, El34s, etc), they can be substitute only with other KT88 type tubes. You need to check the bias every time poweramp tubes are changed.
-
Page 15: Troubleshotting
CABINET AND SPEAKERS For the best sonic experience ever we highly suggest to play this amplifier with RedSeven Pro Cab series, especially with 4x12 model. We develop this amplifier thru this cabinet so this is the natural extension for it. We suggest you to try L120 with Celestion V30.This is our first choice. -
Page 16: Warranty
to blown, turn off the amp and contact RedSeven Amplificaton. • L120 IS TURNING ON (RED LED IS ON) BUT WITH NO SOUND First of all be sure to connect speaker cable properly, both amplifier as the cabinet. Check the input signal from guitar too. If this doesn’t work check HT fuse, if it’s blown replace with SAME type and try again to turn on again. - Page 17 This amplifier runs at very high voltage that can lead to death. Any inexpert person should not even think of do anything inside this amplifier. RedSeven Amplification offer a standard two year fully warranty for any component (except wear subjects).
