  • Page 1 MIP 800 | MIP 1600 MIP 806CI | MIP 1606CI Multituner | IP streamers Operation instructions...

  • Page 2: Table Of Contents

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 Table of contents Product description...............................4 1.1. General................................. 4 1.2. Scope of delivery............................4 1.3. Inputs/multituner............................4 1.4. Output transport stream..........................5 1.5. Graphical user interface..........................5 1.6. SMARTPortal..............................5 1.7. Display elements and connectors.........................6 Mounting and Installation.............................7...
  • Page 3 Use of CA modules (MIP 0806 and MIP 1606)....................32 4.1. Insertion of CA modules..........................32 4.2. CI menu..............................32 4.2.1. Using CI menu 4.3. Decryption of programmes.........................33 Technical specifications............................34 2018-07-23 | Technical improvements, changes in design, printing- and other errors expected.
  • Page 4 Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 Safety instructions:  The installation of the device and repair work on the device must be carried out only by a professional in accordance with the applicable VDE directives. In case of incorrect installation, no liability is assumed.

  • Page 5: Product Description

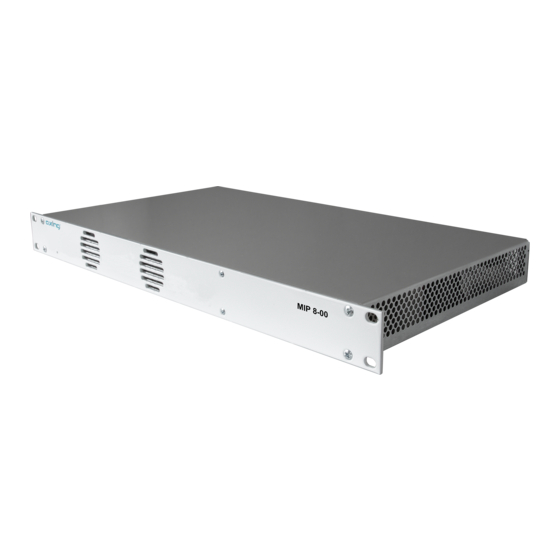

    Transmodulates 8 × DVB-S/S2/S2x/T/T2/C into 512 SPTS (Single Program Transport Stream) or 8 MPTS (Multi Program Transport Stream) MIP 806CI Like MIP 800, with 6 CI slots MIP 1600 16 independent multituner inputs Transmodulates 16 × DVB-S/S2/S2x/T/T2/C into 512 (Single Program Transport Stream)

  • Page 6: Output Transport Stream

    AXING ensures with its SMARTPortal, a web-based cloud application, an easy remote access on web configuration surfaces of its headends. With AXING’s SMARTPortal a worldwide configuration of all settings or software updates can be ensured. On customer request AXING can provide the necessary support.

  • Page 7: Display Elements And Connectors

    1.7. Display elements and connectors 1. LED IPTV stream: Green (blinking) No IPTV stream (no input signal, tuner not configured, no program selected, no program configured for output) Green IPTV stream ok IPTV stream overload. 2. Equipotential bonding connection 3. Mains connection. 2 slot redundance power supply as in picture is an option. 4.

  • Page 8: Mounting And Installation

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 2. Mounting and Installation  Installation must be performed by authorized and skilled electricians only.  Before mounting and installation, pull the mains plug (1)!  The antenna system must be installed and grounded according to the EN 60728-11 standard.

  • Page 9: Rf Installation

    2.4. RF Installation 2.4.1. Connection to DVB-T/T2 or DVB-C Before connecting the antenna cabel, the LNB power has to be switched off (see 3.3.2 on page 14). Active DVB-T antennas have to be supplied by an external power supply. 2.4.2. Connection to DVB-S/S2/S2x Connection to the LNBs On the SAT-IF input the devices have a remote supply voltage for the LNB and use DiSEqC 1.0 functionalities.

  • Page 10: Configuration

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 3. Configuration The device is configured via the graphical user interface of the integrated web interface. To access the user interface, you need a standard PC/laptop with a network interface and the actual version of the installed web browser.

  • Page 11: Login And Logout

    3.1. Login and logout The web-based user interface is protected against unauthorized access. When accessing the user interface, the first thing is the password request. Enter the default password: Ramsen8262 Click ENTER PASSWORD. If you are not automatically forwarded to the start page, click OPEN PAGE.

  • Page 12: Front Page

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 3.2. Front page The relevant information required for the function of the system are shown on the front page. The decisive thing is the quality of the signals at the INPUT and the utilization of the OUTPUT.

  • Page 13: Initialization Phase 1

    3.3. Initialization phase 1  Choose INITIALIZATION from the main menu. During the first phase of the initialization, the tuner settings required for the scan are made and the station scanning is carried out. The tuners work independently from each other and after the same principle. 3.3.1.

  • Page 14: Dvb-C, Dvb-T Or Dvb-T2

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 3.3.2. DVB-C, DVB-T or DVB-T2 Before connecting an antenna cable to a tuner, the LNB Power has to be set to Off! Click TUNER 1…8 or TUNER 1…16 to select one tuner.

  • Page 15: Found Programmes

    3.3.4. Found programmes After a successful station scanning, the radio and TV stations are shown in the area FOUND PROGRAMS. The table contains information about the Program Name, the Type and the Encryption. 2018-07-23 | Technical improvements, changes in design, printing- and other errors expected.

  • Page 16: Initialization Phase 2

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 3.4. Initialization phase 2 In the initialization PHASE 2, the found programmes are subdivided by tuner.  Click on PHASE 2, to select programs. After the station scanning in initialization phase 1 no programms are activated.

  • Page 17: Mpts

    3.4.2. MPTS If MPTS (Multi Program Transport Stream) is selected as the transport stream output (see 3.6.2 on page 27), then the programs can be assigned to the 8 or 16 transport streams. All lines of the programme table have colored buttons M1, M2 …. The buttons correspond to the outputs. The allocation of the buttons is given in the COLOR CODES legend.
  • Page 18 Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 Assigning programmes Every tuner is assigned to an output. The programmes of the tuner can only be assigned to the associated output. For example, click in table TUNER 1 on M1.

  • Page 19: Cross Multiplex Mode18

    3.4.4. Cross Multiplex Mode The cross multiplex mode is used:  To split the programmes of a transonder to several outputs.  To merge pogams of several transponders into one output. Transmission capacities in the distribution networks can be optimized. Change the Network ID to a value greater than zero.
  • Page 20 Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 Assigning programmes to the outputss In the cross multiplex mode, the tuners are no longer assigned to one output. Programs, which are assigned to output 2 Click e.g.

  • Page 21: Lcn (Logical Channel Numbering)

    3.4.5. LCN (Logical Channel Numbering) The LCN function enables channel allocation for the station scan of the TV devices. The TV device must support the LCN function. An LCN can only be entered for programs assigned to an output. Click on the LCN column for the corresponding program. Enter the LCN with the keyboard or increase / decrease the LCN with the arrow buttons right of the number.

  • Page 22: Pid Filtering (With Mks 1-01)

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 3.4.6. PID Filtering  Click on one of the programs. The table with the Packeges opens. This contains the name, the PID and a check mark. By default, all PIDs are initially selected.

  • Page 23: Initialization Phase 3

    3.5. Initialization phase 3  Click on PHASE 3. The output channels are compulsory assigned to adjacent outputs. 3.5.1. SPTS If SPTS (Single Program Transport Stream) is selected as the transport stream output (see 3.6.2 on page 27), then to each transport stream is assigned a destination address. You also define the port and the transmission protocol.

  • Page 24: Mpts

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606  Click OK. All transport streams are configured accordingly. 3.5.2. MPTS If MPTS (Multi Program Transport Stream) is selected as the transport stream output (see 3.6.2 on page 27), then each of the 8/16 output transport streams is individually configured.

  • Page 25: Fill Level

    3.5.3. Fill level The fill level depends on the number of activated channels in Phase 2. The data rate of the channels on the DVB-S/S2/S2x transponders may vary depending on the image contents and on the transmission quality. To ensure an undisturbed reception, a reserve must absolutely be observed. We recommend you to set the maximum fill level to 95%.

  • Page 26: Updating Software

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 Important: If you stay on the maintenance page for more than 2.5 minutes, an automatic logout will occur and you will have to repeat the login procedure.

  • Page 27: Select Transport Stream Output

     After the Update, log in again. 3.6.2. Select transport stream output Under TS OUTPUT, the type of transport stream and the number of transport stream packets are selected. Depending on the configured transport stream, the output signals are output as MPTS (Multi Program Transport Stream) or as SPTS (Single Program Transport Stream).

  • Page 28: Changing The Ip Addresses

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 3.6.3. Changing the IP addresses The network options are configured under the menu item MAINTENANCE> SYSTEM OPTIONS.  In the Control tab, the Control interface to which the computer is connected to configure the MIP is configured.

  • Page 29: Changing The Password

    3.6.4. Changing the password The default password is: Ramsen8262. The default password should be changed right after commissioning the device.  Type an new password with 8-10 characters (letters and/or digits).  Re-enter the password.  Click SAVE CHANGES to confirm and save the changes. When the changes are saved, the frontpage will be shown.

  • Page 30: Save Initialization Data

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 3.6.7. Save Initialization Data In the section SAVE SYSTEM INITILIZATION DATA TO FILE you can save the current initilization data from phase 1 to 3 into a file on your computer.

  • Page 31: Device Name

    Prerequisite is an internet connection for the device.  In the State field, select Enabled.  Activate, if required, the option AXING support allowed.  In the field Location, enter a name for the location of the device. This name will appear later in the SMARTPortal to help you identify the device.

  • Page 32: Log Files

    Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606  Click on SAVE & REBOOT. The data is saved, the device is rebooted and the connection to the SMARTPortal is established. Where required, you have to adjust the connection data (see 3.6.2 on page 27).
  • Page 33 4. Use of CA modules (MIP 0806CI and MIP 1606CI) 4.1. Insertion of CA modules Up to six CA modules can be inserted into the CI slots at the front side of the MIP 8-06 or MIP 16-06.  Carefully insert the CA modules to the corresponding CI slot without exerting force. 4.2.
  • Page 34 Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 4.3. Decryption of programmes Scrambled programs are indicated by the abbreviation CA in the column Encryption of the TUNER table. By default, in the column Decrypt the option no is choosen.
  • Page 35 5. Technical specifications Article MIP 800 MIP 806CI MIP 1600 MIP 1606CI Input tuner 8 × DVB- 16 × DVB- S/S2/S2x/T/T2/C S/S2/S2x/T/T2/C Input frequency range 50…898 MHz | 900…2150 MHz DVB-C | DVB-T/T2 | DVB-S/S2/S2X Input level DVB-C | DVB-T/T2 | DVB- 49…84 dBµV | 39…84 dBµV | 43...84 dBµV...
  • Page 36 Operation instructions | MIP 800 | MIP 1600 | MIP 1600 | MIP 1606 2018-07-23 | Technical improvements, changes in design, printing- and other errors expected.
  • Page 37 2018-07-23 | Technical improvements, changes in design, printing- and other errors expected.
