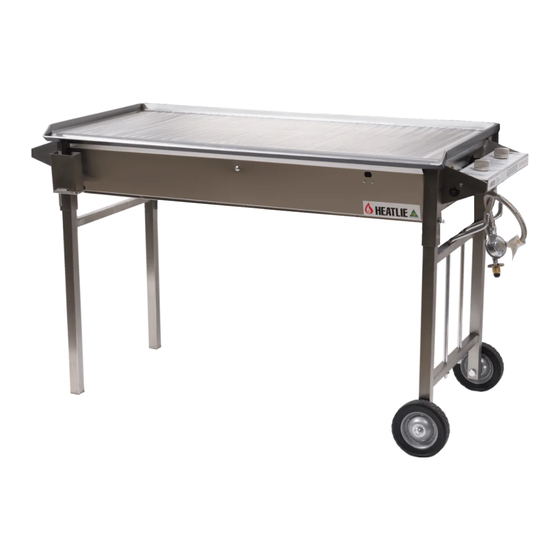

Heatlie Barbecues 700 BBQ Quick Start Manual

Barbecues without legs can be located in a recess or on a bench.
If Warming Drawer is being used, please refer to 'Assembly of Heatlie Accessories' in the Heatlie BBQ User
Manual before commencing.
Measurements
Removing BBQ enables you fit the BBQ
into a smaller recess. If you do want to
leave the handle on the bbq y o u w i l l
n e e d t o add 110mm to the length of
the BBQ.
Add 70mm to the height of the BBQ if
including a warming drawer. You will also
need to purchase a set of "Built In legs" if
you are wanting to use a warming drawer
on a BBQ without legs.
Make sure the rear flue is not blocked
when building the BBQ in.
Allow 25mm clearance on all sides of the
BBQ hotplate from non-combustible
surfaces.
If using a combustible material it can be
constructed using a non-combustible
lining, but ensure the backing of the lining
is also non-combustible.
Allow 200mm clearance on all sides of
the BBQ hotplate from any combustible
surface. See following page.
60 Kinkaid Ave NORTH PLYMPTON SA 5037 PH: 08 0376 9330
Email: info@heatlie.com.au Website: www.heatlie.com.au ABN:55111671008

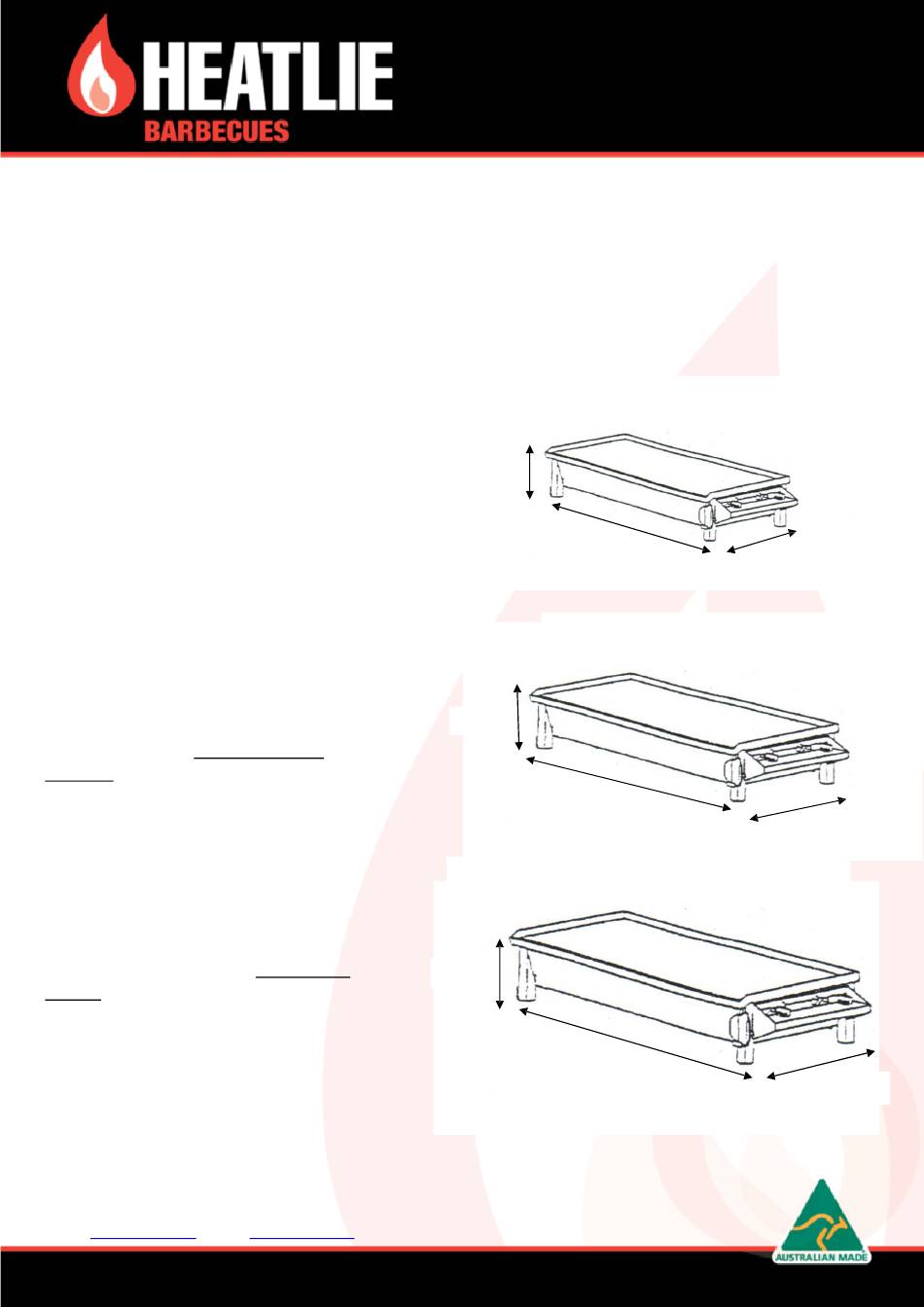

BBQs Without Legs
(To be placed in a recess or bench)
700 BBQ without Left-hand Handle
250mm
mmm
810mm
mmm
Left
850 BBQ without
250mm
960mm
1150 BBQ without Left-hand Handle
250mm
m
1265mm
Standard Height: 250mm
Height with Warming Drawer: 315mm
595mm
m
-hand Handle
595mm
595mm
m
