LIFA Hydmaster 40
OPERATING AND MAINTENANCE MANUAL
LIFA Hydmaster 40

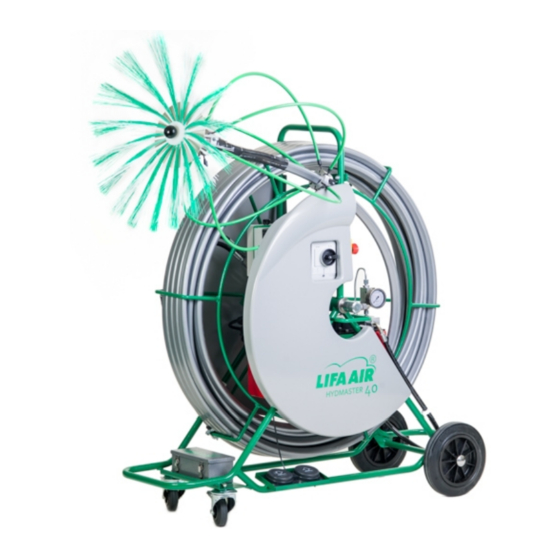

Electrically operated brushing machine for ventilation ducts, powered by a hydraulic motor
These instructions must always be available to personnel using the equipment. Please read
instructions before operating the machine. Observing the instructions carefully will guarantee many
years of trouble-free use.
IMPORTANT!
Read this manual before you operate the machine
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lifa Air Hydmaster 40
Summary of Contents for Lifa Air Hydmaster 40

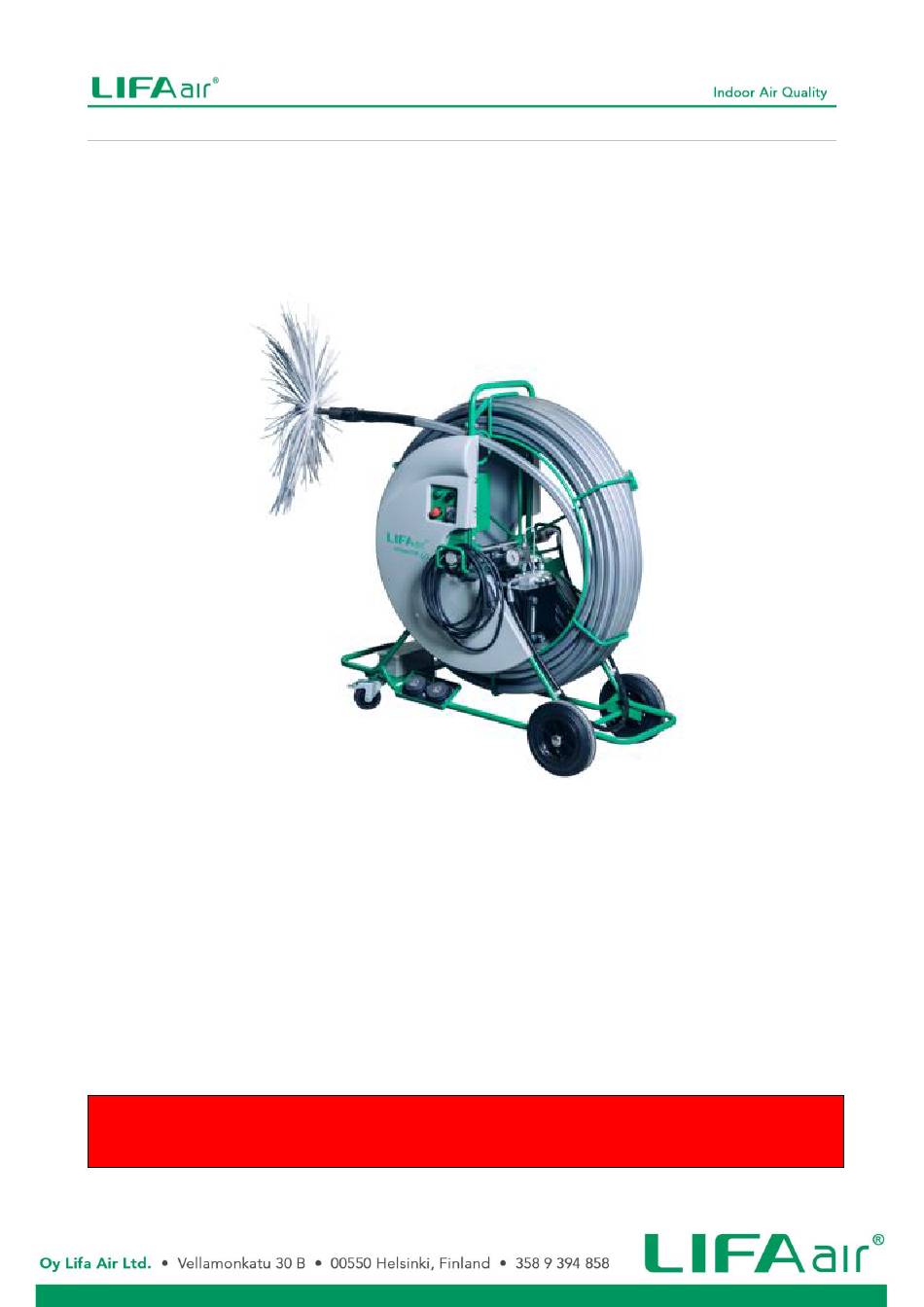

- Page 1 LIFA Hydmaster 40 OPERATING AND MAINTENANCE MANUAL LIFA Hydmaster 40 Electrically operated brushing machine for ventilation ducts, powered by a hydraulic motor These instructions must always be available to personnel using the equipment. Please read instructions before operating the machine. Observing the instructions carefully will guarantee many years of trouble-free use.
-
Page 2: Table Of Contents
Contents LIFA Hydmaster 40 brushing machine ..................2 Safety Precautions ........................3 General Directions ........................4 Construction and Control ......................5 Operating Principles ........................6 Service and Maintenance ......................8 Troubleshooting ..........................9 Spare parts and accessories ...................... 10 Warranty ............................12 Recycling ............................. -
Page 3: Lifa Hydmaster 40 Brushing Machine
Hydmaster 40 can also be used in kitchen grease duct and industrial pipe line cleaning. The length of the cleaning shaft is 40 meters (131 ft.) or so it can be used in cleaning up to 75 m (246 ft.) of ventilation duct when accessed from the access door into both directions. -
Page 4: Safety Precautions
LIFA Hydmaster 40 brushing machine has a strong rotating force. Clothes or hair can easily get caught in the brush and cause damage or accidents. The brush must always be placed in the ventilation duct before switching on the machine. -
Page 5: General Directions
General Directions 1. LIFA Hydmaster 40 can only be used for the purposes that it is designed for and which are outlined in the instructions. It is forbidden to use the equipment for any other purposes without written permission from the manufacturer. -
Page 6: Construction And Control
Construction and Control LIFA Hydmaster 40: 1. Main switch 2. Power on indicator LED 3. Emergency stop switch 4. Pneumatic pedal - the change of the rotating and operating direction 5. Control of the rotating speed 6. Oil pressure meter 7. -
Page 7: Operating Principles
Operating Principles Before beginning the work, check the ductwork with a) LIFA Duct Control (accessory) camera inspection equipment and choose the suitable b) brushes and other accessories based on the size and construction of the duct as well as the composition of the removable dirt. - Page 8 Make sure that there is enough low pressure in the channel network and that LIFA HepaClean or AirClean negative pressure unit (NPU) is installed correctly. The brushed off debris is removed by sucking it to the NPU. • Place the brush inside the ventilation duct that is going to be cleaned. •...
-
Page 9: Service And Maintenance
Service and Maintenance When the machine is in daily professional use it should be delivered to its first regular maintenance to the manufacturer or to repair shop that has been authorized by the manufacturer after six months from the first commissioning date (approximately 100 hours). The warranty expires if the machine has not been delivered to its first maintenance on time. -
Page 10: Troubleshooting
Troubleshooting Possible problem situations and solutions are presented below. If you are not sure on how to handle problem situations do not hesitate to contact us. Our experts are pleased to advice and help you in a way we can get the desired outcome together. 1. -
Page 11: Spare Parts And Accessories
Spare parts and accessories SOFT BRUSHES WITH NYLON CENTER AND DISK 200 / 400 mm (8/16 inch) 6420281010507 6420281010514 300 / 500 mm (12/20 inch) 6420281012624 400 / 600 mm (16/24 inch) 6420281010736 500 / 700 mm (20/28 inch) 6420281013027 600 / 800 mm (24/31 inch) Soft brush with nylon center and disk 6420281010743... - Page 12 AGGRESSIVE NYLON BRUSHES (grease brush) WITH NYLON CENTER 6420281010750 200 mm (8 inch) 6420281010767 300 mm (12 inch) 6420281010774 400 mm (16 inch) 6420281010781 500 mm (20 inch) 6420281010798 600 mm (24 inch) ABRASIVE BRUSHES WITH NYLON CENTER, TYNEX BRISTLE 6420281023439 200 / 400 mm (8/16 inch) 6420281021213...
-
Page 13: Warranty
A written reclamation form has to be filled out and sent with descriptive photos to the manufacturer. The appliance shall be delivered to the authorized Lifa Air representative from whom the buyer has bought the machine from OR when agreed mutually in writing beforehand to the factory postage paid... -
Page 14: Declaration Of Conformity
Manufacturer’s website: www.lifa.net, www.lifa-air-com Model: LIFA Hydmaster 40 Oy Lifa Air Ltd, hereby states, with sole responsibility, that the machine models covered by this announcement comply with the requirements of the following EC directives and standards: • EU Low Voltage Directive LVD 2014/35/EY •... -
Page 15: Lifaair Product Family
LIFAair Product Family Special Duct Special Combi Combi AirJet Combi Cleaner 25 Hydmaster 40 Cleaning Cleaner 20 Cleaner 15 Cleaner 40 Multi Robot Compressed Operating Compressed Compressed Compressed air (brush) + Electricity Electricity Hydraulics power electricity (driving) 240 VAC (or...
