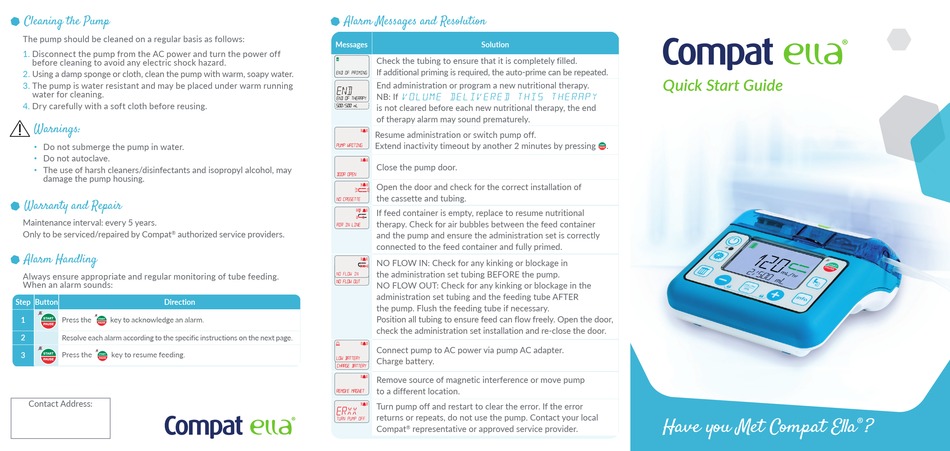

Compat ella Quick Start Manual

Cleaning the Pump

The pump should be cleaned on a regular basis as follows:
1. Disconnect the pump from the AC power and turn the power off
before cleaning to avoid any electric shock hazard.
2. Using a damp sponge or cloth, clean the pump with warm, soapy water.
3. The pump is water resistant and may be placed under warm running
water for cleaning.
4. Dry carefully with a soft cloth before reusing.
Warnings:
Do not submerge the pump in water.
•
• Do not autoclave.
The use of harsh cleaners/disinfectants and isopropyl alcohol, may
•
damage the pump housing.

Warranty and Repair

Maintenance interval: every 5 years.
Only to be serviced/repaired by Compat authorized service providers.
®

Alarm Handling

Always ensure appropriate and regular monitoring of tube feeding.
When an alarm sounds:
Step Button Direction
1 Press the key to acknowledge an alarm.
2
Resolve each alarm according to the specific instructions on the next page.
3 Press the key to resume feeding.
Contact Address:

Alarm Messages and Resolution

Messages Solution
Check the tubing to ensure that it is completely filled.
If additional priming is required, the auto-prime can be repeated.
END OF PRIMING
End administration or program a new nutritional therapy.
END
NB: If
VOLUME DELIVERED THIS THERAPY
END OF THERAPY
is not cleared before each new nutritional therapy, the end
500/500 mL
of therapy alarm may sound prematurely.
Resume administration or switch pump off.
Extend inactivity timeout by another 2 minutes by pressing
PUMP WAITING
Close the pump door.
DOOR OPEN
Open the door and check for the correct installation of
the cassette and tubing.
NO CASSETTE
If feed container is empty, replace to resume nutritional
therapy. Check for air bubbles between the feed container
AIR IN LINE
and the pump and ensure the administration set is correctly
connected to the feed container and fully primed.
NO FLOW IN: Check for any kinking or blockage in
the administration set tubing BEFORE the pump.
NO FLOW IN NO FLOW OUT
NO FLOW OUT NO FLOW OUT: Check for any kinking or blockage in the
administration set tubing and the feeding tube AFTER
the pump. Flush the feeding tube if necessary.
Position all tubing to ensure feed can flow freely. Open the door,
check the administration set installation and re-close the door.
Connect pump to AC power via pump AC adapter.
Charge battery.
LOW BATTERY
CHARGE BATTERY
Remove source of magnetic interference or move pump
to a different location.
REMOVE MAGNET
Turn pump off and restart to clear the error. If the error
ERXX
returns or repeats, do not use the pump. Contact your local
SYSTEM FAIL TURN PUMP OFF
Compat representative or approved service provider.
®
Quick Start Guide
.

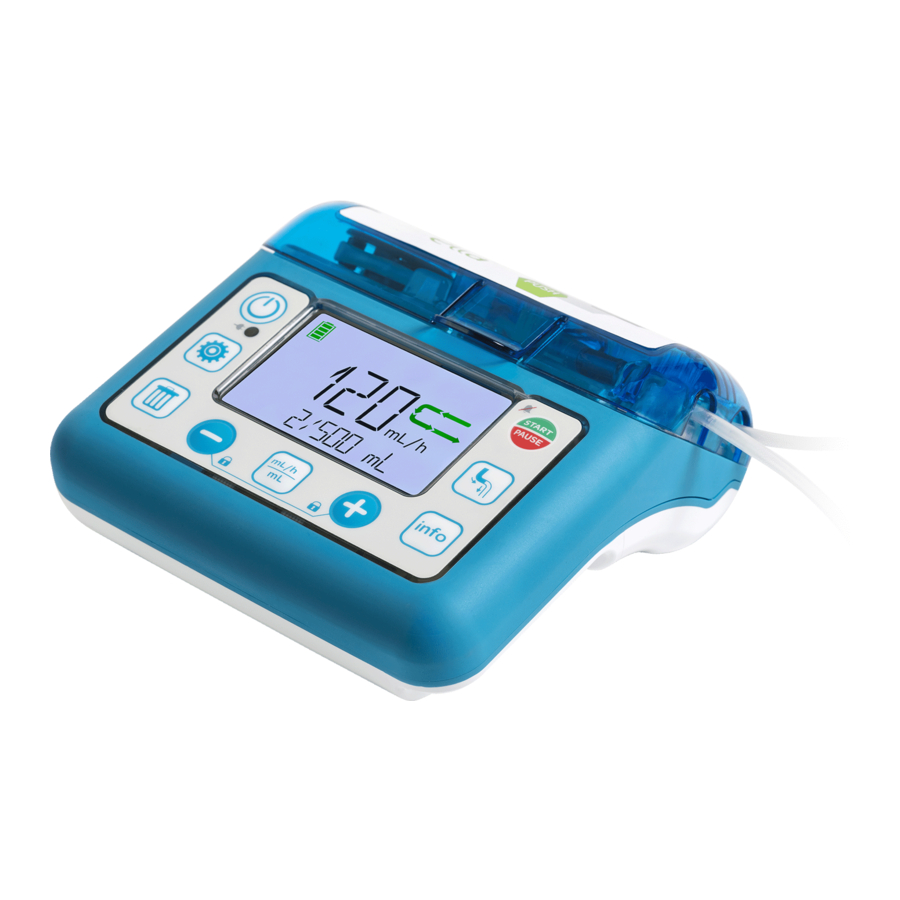

Have you Met Compat Ella ?
®
