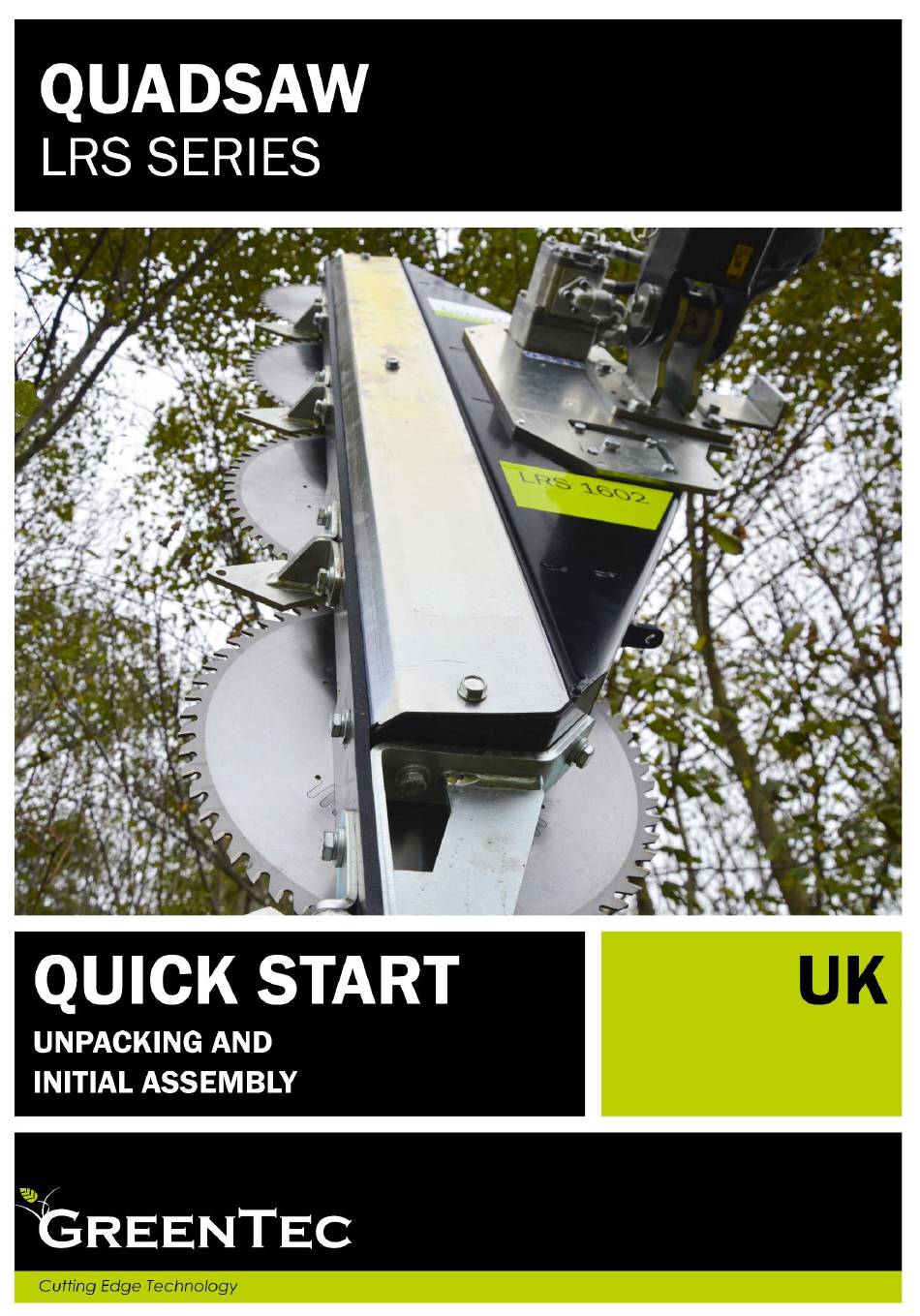

GreenTec Quadsaw: LRS series Quick start guide Original version This quick start guide shows and describes how to assemble a GreenTec LRS Quadsaw on a GreenTec HXF Multi Carrier. Mounting on other multi carriers often takes place in the same way -... -
Page 4: Unpacking Of Lrs Quadsaw
Carefully cut off the plastic. Be careful not to cut hoses, wires and not to scratch the paint. • All loose parts for the attachment tool are packed down together with or bolted / tied to the transport pallet. GreenTec Merkurvej 25 DK-6000 Kolding Phone: +45 75 55 36 44 info@GreenTec.eu... -
Page 5: Mounting Of Lrs Quadsaw On The Hxf Multi Carrier
Before tightening, turn the entire quadsaw counter clockwise so that the top saw blades cuts the hedge first. (See instruction manual) • The bolts are tightened to 140 Nm. GreenTec Merkurvej 25 DK-6000 Kolding Phone: +45 75 55 36 44 info@GreenTec.eu GreenTec.eu... -
Page 6: Assembly Of Hydraulic Hoses
Minimum pressure 5 bar (If this pressure is not achieved, a non-return valve must be fitted (Item no .: CA19 / 4) • Max. back pressure 15 bar outside the engine. GreenTec Merkurvej 25 DK-6000 Kolding Phone: +45 75 55 36 44 info@GreenTec.eu... -
Page 7: Mounting Of Saw Blades
LRS 2002-2402 10.9 81 Nm • Rotate the saw blade by hand, the blade should run smooth and effortlessly. • This procedure is performed for all saw blades. GreenTec Merkurvej 25 DK-6000 Kolding Phone: +45 75 55 36 44 info@GreenTec.eu GreenTec.eu... -
Page 8: Installation And Adjustment Of Branch Guide And Plastic Rejector
LRS 1402-1602-2002 52 Nm LRS 2402 90 Nm • Control: Turn the saw blades by hand, they must be able to rotate 360 degrees freely, without touching anything. GreenTec Merkurvej 25 DK-6000 Kolding Phone: +45 75 55 36 44 info@GreenTec.eu GreenTec.eu... -
Page 9: Careful Testing: 15 Min. Test Drive Without Sawing
Adjust the belt. • The multi carrier and the LRS Quadsaw are now ready for use. • (Always remember to use safeguards on the blades when transporting and storing!) GreenTec Merkurvej 25 DK-6000 Kolding Phone: +45 75 55 36 44 info@GreenTec.eu... -
Page 10: Installation Of Safety Protection
As our products are constantly evolving and improving, there may be changes in specifications. If there is information that differs on the current machine, updated instructions can be found on our homepage or by contacting GreenTec - Aftersales department. GreenTec Merkurvej 25... - Page 11 NOTES:______________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ GreenTec Merkurvej 25 DK-6000 Kolding Phone: +45 75 55 36 44 info@GreenTec.eu GreenTec.eu...
