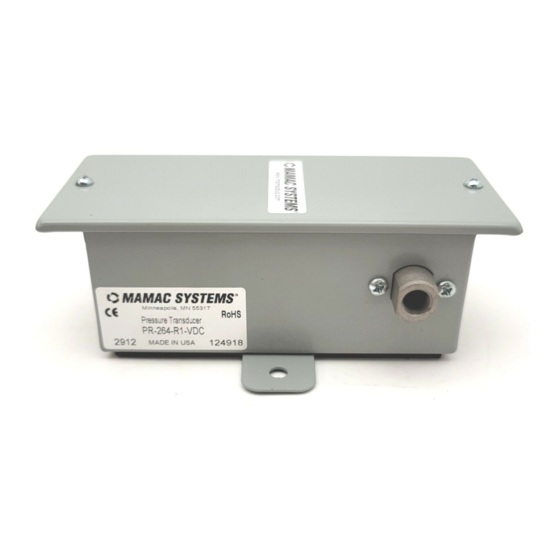

MAMAC SYSTEMS PR-264 Technical Information

7400 Flying Cloud Drive • Minneapolis, MN 55344-3720 • USA
800-843-5116 • 952-835-1626 • Fax 952-829-5331
www.mamacsys.com
For additional information, see the accompanying data sheet for this transducer.
Ordering Information
RANGE
R1 (psig) 0 to 100 / 0 to 50 / 0 to 25
R2 (psig) 0 to 300 / 0 to 150 / 0 to 75
R3 (psig) 0 to 500 / 0 to 250 / 0 to 125
R4 (kPa) 0 to 700 / 0 to 350 / 0 to 175
R5 (kPa) 0 to 2000 / 0 to 1000 / 0 to 500
R6 (kPa) 0 to 3500 / 0 to 1750 / to 875
Dimensions

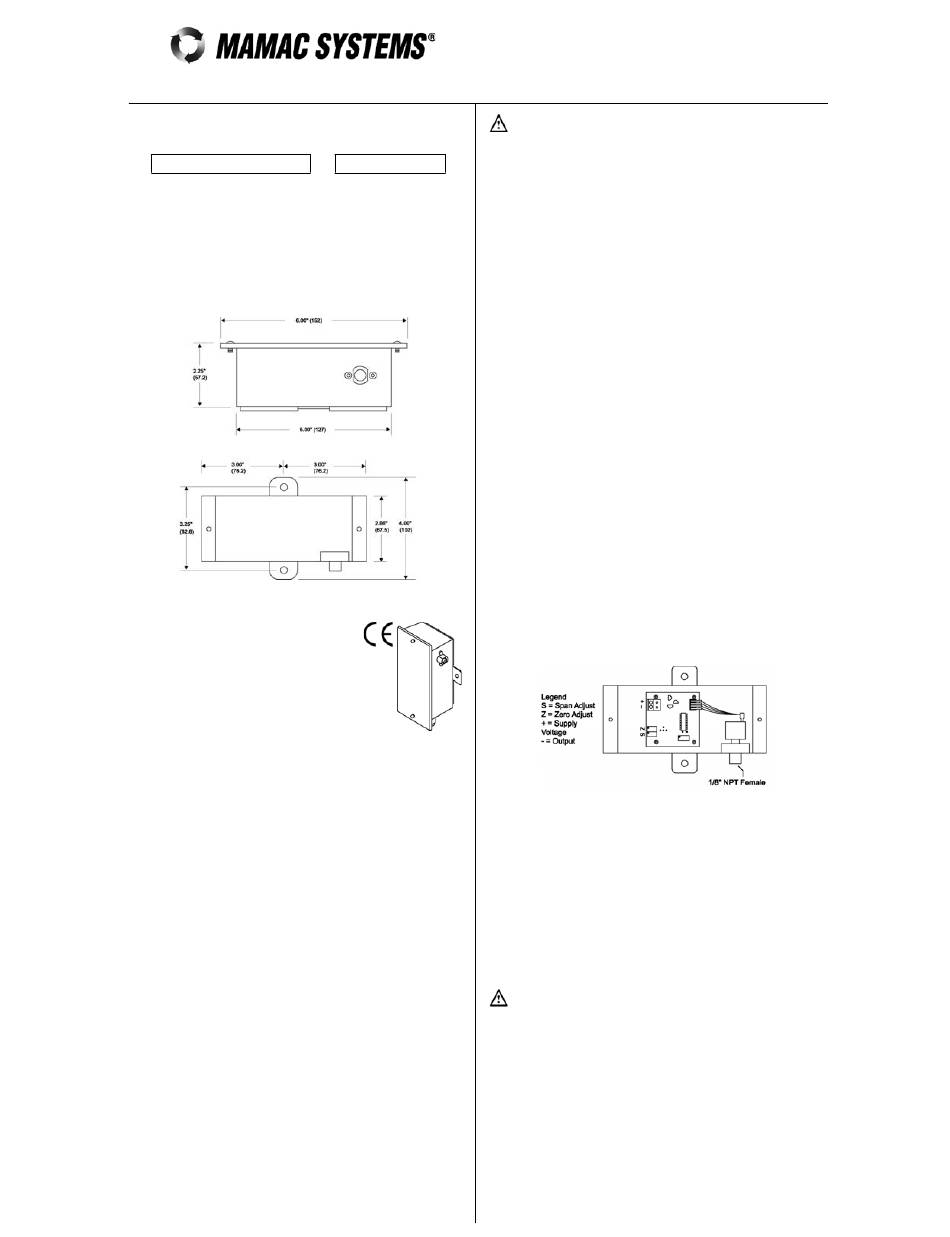

Figure 1. Pressure Transducer Dimensions
Specifications
±
Accuracy*: 1% FS
Overpressure: 300%
Burst Pressure: 500%
Supply Voltage: 12 - 40 VDC;
12 - 35 VAC (VDC output transducers only)
Supply Current: 10 mA maximum for VDC output
transducers; 20 mA maximum for mA output
transducers
Enclosure: 18 gage C.R. steel NEMA 4 (IP65)
Finish: Baked-on enamel PMS2GR88B
Conformance: EMC Standards EN50082-1(1992), EN55014(1993)/EN60730-
1(1992)
Compensated Temperature Range: 0°F to 180°F (-18°C to 82°C)
T. C. Error: ± 0.025%/°F (.03%/°C)
Media Compatibility: Liquids and gases compatible to 316L stainless steel
Port Connection: 1/8-inch NPT
Environmental: 10 to 90% RH non-condensing
Termination: Unpluggable screw terminal block
Wire Size: 12 gage maximum
Load Impedance: 1.6K ohms maximum at 40 VDC (mA output transducers);
1K ohms minimum (VDC output transducers)
Weight: Enclosure 1.0 lb. (.45 kg)
* Includes nonlinearity, hysteresis, and non-repeatability.
Installation
Inspection
Inspect the transducer packaging for signs of damage. If damaged, notify the
carrier immediately.
Requirements
• Tools (not provided):
- Digital volt-ohm meter (DVM)
- Appropriate screwdriver for mounting screws
- Appropriate drill and drill bit for mounting screws
• Appropriate accessories
• Two #8 self-tapping mounting screws (not provided)
• Training: Installer must be a qualified and experienced technician
IS.PR264-00
W
• Do not use on oxygen service, use in an explosive or hazardous environment,
OUTPUT
• Disconnect the power supply before installing the transducer. Failure to do so
mA 4 - 20 mA two-wire
• Make all connections in accordance with the job wiring diagram and national
VDC 0 - 5 or 0 - 10 VDC
(field selectable) • Use electrostatic discharge precautions such as wrist straps when installing
• Avoid installing the transducer in locations where severe shock, vibration,
• Do not exceed ratings for the transducer.
Mounting
1.
2.
3.
4.
5.
6.
Wiring
Use 12 AWG wire maximum for wiring terminals and copper or stainless steel
tubing for transducer connections. See Figures 5 to 8 for wiring diagrams and
Figures 9 and 10 for jumper designations.
Wiring for mA Output
The mA output pressure transducer must be powered with a 12 - 40 VDC power
supply. See Figure 3.
1.
2.
3.
4.
5.
6.
7.
Figure 2. Pressure
Transducer
Wiring for VDC Output
The VDC output pressure transducer is field selectable for 0 - 5 VDC or
0 - 10 VDC output and can be powered with either 12 - 40 VDC or 12 - 35 VAC.
See Figure 4.
1.
2.
3.
4.
5.
6.
C
• If using grounded AC, ensure that the hot wire is on the [+] terminal. In addition,
• This transducer contains a half-wave rectifier power supply and must not be
• When multiple transducers are powered from the same transformer, damage
!
ARNING
or use with flammable or combustible material.
can result in electrical shock and equipment damage.
and local electrical codes. Use only copper conductors.
and wiring the transducer.
excessive moisture, or corrosive fumes are present. NEMA 4 housings are
primarily intended for outdoor use to provide a degree of protection against
windblown dust, rain, and hose-directed water.
Choose a vertical mounting surface for the pressure transducer.
Orient the pressure transducer so that the 1/8-inch NPT connection points
downward. See Figure 1.
Remove the transducer cover using a Phillips screwdriver.
Mount the pressure transducer using two #8 self-tapping screws (not
provided).
Pull the wires through the bottom of the enclosure and make the necessary
connections.
Replace the transducer cover and make the pneumatic connections.
Remove the blue terminal block by carefully pulling it off the circuit board.
Locate the [+] and [-] terminal markings on the board.
Attach the supply voltage to the [+] lead.
Connect the 4 - 20 mA output [[-] terminal) to the controller's input terminal.
Ensure that the power supply common is attached to the common bus of the
controller.
Reinsert the terminal block to the circuit board and apply power to the
transducer.
Check for the appropriate output signal by using a DVM set to DC milliamps
connected in series to the [-] terminal.
Figure 3. Pressure Transducer With mA Output
Remove the blue terminal block by carefully pulling it off the circuit board.
Locate the [+], [-], and [0] terminal markings on the board.
Attach the power wires to the [+] and [-] terminals. The [-] terminal is also the
negative output terminal.
Connect the [0] terminal, which is the positive VDC output terminal, to the
controller's input terminal.
Reinsert the terminal block to the circuit board and apply power to the
transducer.
Check the appropriate VDC output by using a DVM set to DC volts connected
to the [0] and [-] terminals.
!
AUTION
if using a controller without built-in isolation, use an isolation transformer to
supply the transducer.
powered from transformers powering other devices with non-isolated full-wave
rectifier power supplies.
will result unless all 24-gage power leads are connected to the same power
lead on all transducers. Maintain the correct phasing when powering more than
one transducer from a single transformer.
Model PR-264
Pressure Transducer
Technical Information
Rev. 0
