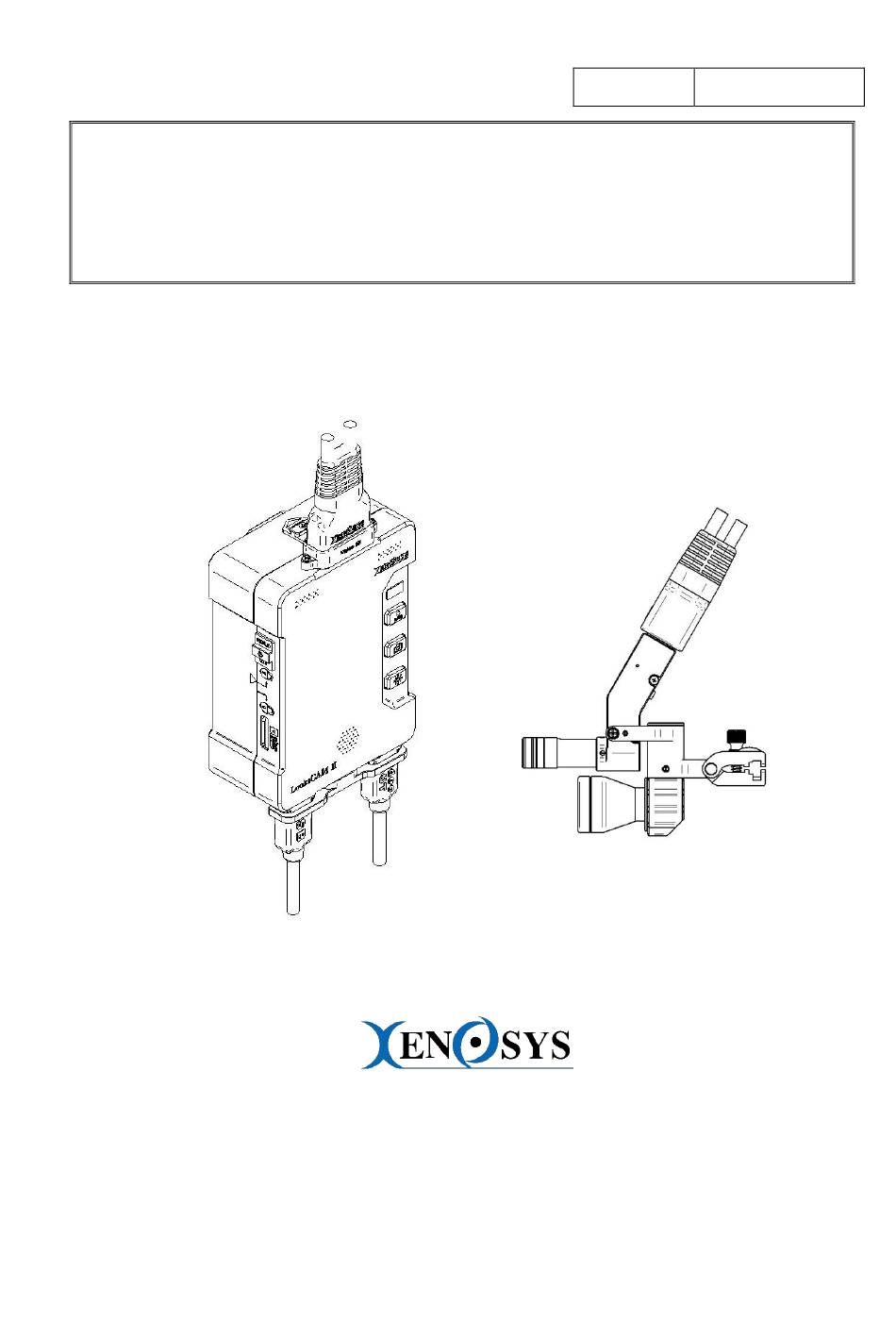

- Page 1 Doc. No. F702M-LC2E LooksCAM2 CAMERA SYSTEM USER MANUAL Optical Device Medical Device System Engineering XENOSYS CO., LTD. 2, Venture-ro, 100 Beon-gil, Yeonsu-gu, Incheon 22013, Korea TEL. 82-32-875-9811~2 FAX. 82-32-875-9813 www.xenosys.co.kr / sales@xenosys.co.kr...
-
Page 2: Table Of Contents
Connect Video-Out Port ....................19 How to update the firmware ................... 19 OPERATING INSTRUCTIONS ................20 Power On/Off ........................20 Video Recording ......................21 Snapshot ........................... 21 Turn on LED ........................22 Insert the Highlight Tag ....................23 CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... - Page 3 DC POWER SUPPLY (DC Power Supply, FW8000MUSB05) ......... 34 USB Power Cable (LC2-USBC) ......................34 Video-Out Cable (LC2-VOC) ....................... 34 Detailed Specifications ....................35 3. Label for packaging & components ..................36 ELECTROMAGNETIC COMPATABILITY .............. 37 CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr...
-
Page 4: Introduction
The description below is KFDA approval condition as the medical device. Certificate Registration No. 1909 Gyeongin Jesin 07-117 Product Category General Instruments Class Class 1 Product Category Product A31020.01 External Medical A31000 Medical Mirror Category III Camera CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 5: Safety & Precautions
Do not touch the power cord with wet hand which may cause electric shock or equipment damage. Do not use LooksCAM2 with connecting directly to the battery pack during the operation or medical practice. WARNING for Main Body: CAMERA SYSTEM (LooksCAM2) - Page 6 LED optic outside emits heat, so be careful on touching. Do not look directly into LED lens module or some one’s eyes to avoid the risk of permanent eye damage. Refer to the below label for the caution. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr...
- Page 7 The battery operating time may shorten using in the cold place (below 0℃) even fully charged one. In that case, warm up the battery within the pocket before using LooksCAM2. Do not heat up the battery with microwave or any heater. Recommended ambient temperature to operate is 6℃...
-
Page 8: Features
1) Protection Classification: ① Battery Pack: Internal Power Device ② DC Power Supply: Class II Device 2) Protection Type: N/A 4. Safety Circuit: Contains protection circuit for over-current & over-voltage 5. Operation Block Diagram: Refer to below photo CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 9: Components
USB power cable Cable clamp MLC type UHS-I LC-AAABT LC2-SDC LC2-VOC 10. Video Out cable (3.6M) 11. AAA battery 12. Micro SD card (128GB) DRV07 CC-01 RHB02-PADSET 13. Gown clip 14. RHB02-PADSET 15. Mini driver 16. Cleaning cloth CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 10: Each Component & Fucntions
REC LED OFF: Ongoing of system initialization or malfunction ⑥Snapshot Button Quick press for one snapshot, Hold for continuous shots Snapshot Button LED ON: WiFi On, Possible to connect viewer Snapshot Button LED OFF: WiFi Off, Not possible to connect viewer CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 11: Battery Pack (Btp-Lc2)
Connect DC Power Supply to charge the battery pack. Shows the charging status of battery pack ④ Battery Status LED Fully Charged – Green, In process of Charging – Orange ⑤ Battery power output pin Connected to charging pin of main body. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -

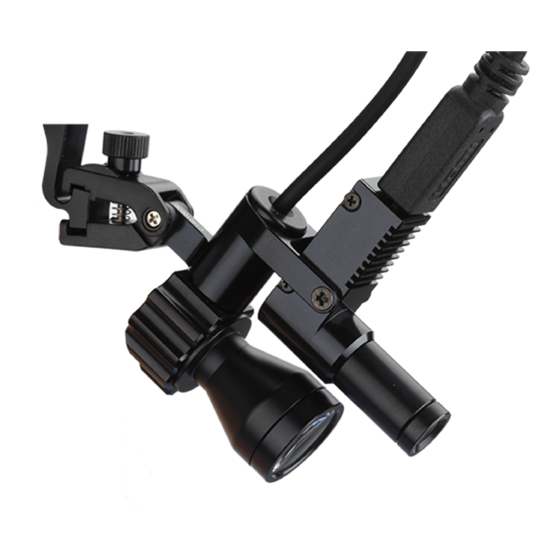

Page 12: Head Assembly Unit (Lc2-Ha)
. There are 3 kinds of LED lens and you may choose one. Class Model Feature (Field of View Size) Remark Standard LLM82 Ø 82mm@WD400mm Standard Option 1 LLM74 Ø 74mm@WD400mm Option 2 LLM66 Ø 66mm@WD400mm CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 13: Remote Controller (Lc2-Rc)
WARNING: The main body and remote controller are provided with pairing set up. The below table is how to set up & release pairing. You should disconnect head assembly unit cable before setting up the pairing. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 14: Dc Power Supply (Fw8000Musb05)
1) Unpack the box and check components quantity and external figures are good or not. 2) Read the manual to fully understand how to use. 3) Charge the battery pack before use and must use Xenosys provided DC Power Supply (FW8000MUSB05). - Page 15 3) Store in safe place from slope, vibration, and impact. 4) Avoid storage area where chemicals or generating gas. 5) If any problem of faulty, stop using it and ask nearest distributor or agent for repairs. 6) DO NOT disassembly, repair, or remodel. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr...
-
Page 16: Installation
Micro SD card is expendables with certain period of lifespan, so it needs periodical check up and exchange. Recommended using Xenosys provided Micro SD card. If there is any defective happen while using non-Xenosys provided one, we don’t have the responsibility for that defective. ... -
Page 17: Assemble Main Body & Battery Pack
- Battery power input pin is VERY weak at the external shock, so be careful in assembling the battery pack. If the charging port is broken, the operation of LooksCAM II may NOT be possible. - Store the main body and battery pack with separated to prevent the battery discharging. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 18: Assemble Main Body & Head Assembly Unit
- If the camera sensor plug of head assembly cable is twisted or damaged by hard pull off, video out cable can be severely damaged which will cause loose contact to image transfer. Recommended storage of LooksCAM2 will be stored with all head assembly unit cable connected. CAMERA SYSTEM (LooksCAM2) -
Page 19: Connect Video-Out Port
5. How to update the firmware １) Copy firmware file(6.x.x.xx.bin) to IN folder of Micro SD card ２) Insert the SD card in LooksCAM2 Micro SD Card Slot and press power switch to downward (1 second) ３) LED on main body will blinking and firmware update will process. When the update is finished, the power will turn off automatically. -
Page 20: Operating Instructions
This function is to prevent any unexpected (unwanted) button press while doing on procedure. ４) If you press record button without Micro SD card, the error message "Memory card s empty" will come out. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 21: Video Recording
Seconds-Sequence number.mp4) One file with 30 minutes will be about 2.5GB and then another file will be generated. If SD card or camera sensor plug has been pull out during the video recording, the CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 22: Turn On Led
SD card. The default level is one step. ４) Run config.exe file to change “Light Level” on desired level and press “Save Config” to save the configuration. ５) New setting can be used after turn off & reboot the main body. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 23: Insert The Highlight Tag
２) Not feasible while recording is on. 8. Check Video by Video-out port ①TV ③Head Assembly Unit Video-Out 케이블 ②Video-Out port of main body １) Prepare TV with HDMI port and change the input to HDMI. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 24: Battery Status Led
Blinking About 1 hour then 1 warning sound 1 hour 20 minutes Orange ~ 20 minutes Blinking About 20 minutes then 1 warning 20 minutes ~ Power Off Orange sound. After that shout down of power CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... - Page 25 3 hrs 20 mins 1 hr 20 mins 20 minutes each status LED ~ 3 hrs 20 ~ 1 hr 20 mins ~ 20 mins ~ Power off color mins Warning Sound None None 1 time 1 time CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr...
-
Page 26: The Viewer
４) After the system initialization, ③Snapshot button of LED should be turned on. ５) If ③Snapshot button of LED is not turned on, it shows WIFI connection is wrong or error. In this case, start the procedure “1)” again. ６) Connect WIFI name “LooksCam2”. Default password is”1234567890”. CAMERA SYSTEM (LooksCAM2) -
Page 27: How To Install The Viewer
– More than iOS 11.0 More than IPhone 6 More than IPad 2 Retina ３) Install the application: Android at Playstore, iOS Appstore to find “LooksCAM2”. 3. Features & Fuctions of Viewer ② Status of Main Body ④ Configuration option ③... - Page 28 Press menu to play (or stop) the video file from SD card or tablet PC. ⑪Recording Recording start / stop (Stored in tablet PC) Choose among Live, SD card file, tablet PC file ⑫Menu (Refer to “5. Button details on menu”) ⑬Screen Playing screen of Live or video file CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr...
-
Page 29: Detail Options / Configurations
For this function, Chromecast for Android, and Apple TV for iOS. Connection between LC2-CU and normal PC by using “reflector3” – paid commerical program to do mirroring. ２) Default Value: SSID (LooksCam2), PASSWORD (1234567890). SSOD and password can be changed according to wireless router status. CAMERA SYSTEM (LooksCAM2) -
Page 30: Resolution: Set Up For Resolution 1080P Or 720P
- When lots of wifi channels around are duplicated, wifi signal can be lower and disconnected on real time video. Then download Wifi Analyzer or etc. application to diagnose not congested channel to move and apply to LooksCAM2. (3) Resolution: Set up for resolution 1080p or 720p... -
Page 31: Basic Troubleshooting
BASIC TROUBLESHOOTING WARNING before asking for after-sales services: Important data which are stored in LooksCAM2 must be moved or downloaded to other devices or personal computer periodically. All data can be deleted for after-sales services. Important data must be backed up by the user before applying after-sales services. - Page 32 LooksCAM wifi. (Refer to page out less traffic channel to change LooksCAM wifi. It is normal to show green light DC power supply is always on DC power supply as it green color on indicator shows the power ON. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr...
-
Page 33: Specifications
２) Weight: 217 g (3) Head Assembly Unit (LC2-HA) (4) Remote Controller (LC2-RC) １) Measurement: Refer to below photo １) Measurement: Refer to below photo ２) Weight: 41 g (Except LED lens & cable) ２) Weight: 59 g CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 34: Dc Power Supply (Dc Power Supply, Fw8000Musb05)
(DC Power Supply, FW8000MUSB05) Measurement: 2 m １) Measurement: 31(L)x41(W)x77(H) [mm] Weight: 44 g ２) Weight: 81 g * Always shows green color (power indicator) (7) Video-Out Cable (LC2-VOC) １) Measurement: 3.6 m ２) Weight: 152 g CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 35: Detailed Specifications
Input power of 100-240 V~, 50-60 Hz, 0.3A DC POWER SUPPLY Output power of 5.0V 2.2A DC POWER SUPPLY Battery Input Power 5.0V 2.2A LED Illumination STEP lx @WD400mm Brightness & 19,000 Current Consumption 30,000 CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 36: Label For Packaging & Components
Dimension & Total Weight of Package Dimension W 410 x H 320 x T 180 (mm) Total Weight 3.80 kg (With total outer package 4.30 kg) 3. Label for packaging & components 1) Outer Box CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... -
Page 37: Electromagnetic Compatability
Recommend to choose one and more ways to solve the trouble in the following ways. Relocate the equipments receiving the interruptive wavelength. Put the each equipment in longer distance. Connect the equipment to the different outlets from the ones connected to other equipments. CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr... - Page 38 2. Load LooksCAM2 boxes up and down evenly by handcart and any vehicle trunk to transport. 3. When you carry LooksCAM2 by hand, hold it with two hands firmly and disconnect charger, and power cord from the main body for safe transportation.
- Page 39 10. If there is any defect happens which cannot be handled by troubleshooting in this manual, return it to the manufacturer. Then Xenosys will take care of it. If the qualified engineer determines that the defect comes from the abuse or improper use, warranty will not be applied. The repair cost shall be notified prior to the service &...
- Page 40 EU Representative (EU Repräsentant) 1. Company: Cormedics Medizintechnik GmbH 2. Address: Bahnhofstr. 32, 82041 Deisenhofen, Germany 3. Tel (Fon): +49 (0)89 666 58 79 15 4. Fax: +49 (0)89 54 999 030 5. E-mail: a.huettl@cormedics.com 6. Web: http://www.cormedics.com CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr...
- Page 41 ※ Revision List Version No. Release date Revision Version 1.0 May, 2019 First release CAMERA SYSTEM (LooksCAM2) www.xenosys.co.kr...
