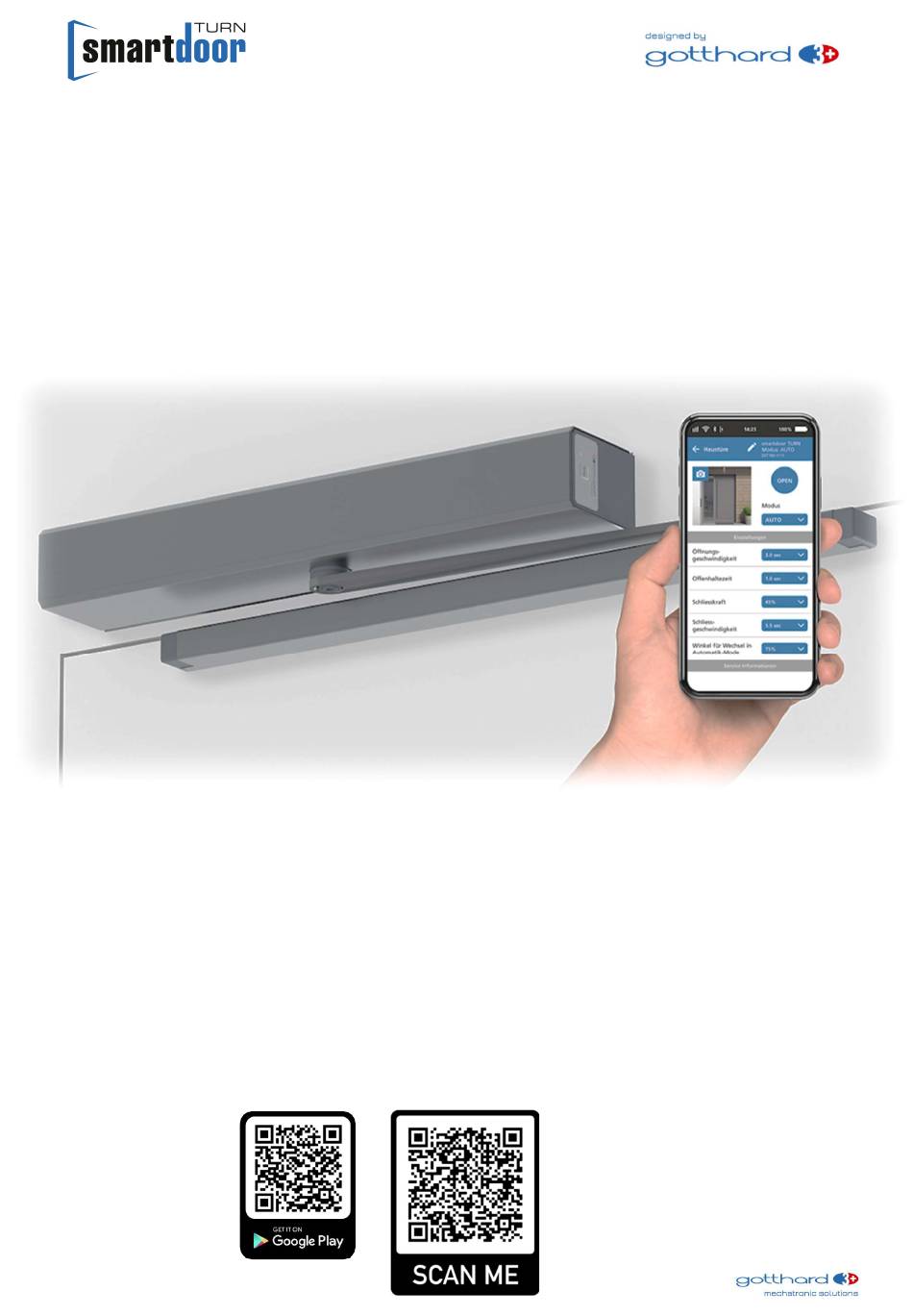

- Page 1 Operating Instructions Quick Guide Swing Door Operator smartdoor TURN T100 Language: English 301057 2021-10-26...
-
Page 2: Table Of Contents
TURN T100 | Operating Instructions Table of contents GENERAL INFORMATION ..................5 PRODUCT IDENTIFICATION ................... 5 PRODUCT OVERVIEW .................... 6 1.2.1 ..................... 6 HE BASIC MODULE 1.2.2 ..................... 7 HE LINKAGE 1.2.3 ..................7 HE OPERATING ELEMENTS 1.2.4 ..................7 HE SAFETY ELEMENTS 1.2.5... - Page 3 TURN T100 | Operating Instructions 4.5.2 ................31 IRED OPERATING ELEMENTS 4.5.2.1 C ..............31 ONNECTION OF EXTERNAL CONTACTS 4.5.2.2 W .................. 31 IRED OPENING PULSES 4.5.2.3 C ..............31 OMMISSIONING WIRED PUSH BUTTON 4.5.2.4 C ................32 OMMISSIONING WIRED RADAR COMMISSIONING SAFETY ELEMENTS ..............
- Page 4 TURN T100 | Operating Instructions 7.5.2 ..................55 AIN MENU Y DOORS 7.5.3 APP .............. 55 ONNECT NEW DOOR OPERATOR IN THE 7.5.4 .............. 55 ASSWORD FOR RELEASE OF A SMARTPHONE 7.5.5 ....................56 OOR CONTROL 7.5.6 / FAQ ..................57 SER MANUAL SERVICE ........................
-
Page 5: General Information
TURN T100 | Operating Instructions 1 General information 1.1 Product identification For precise identification the type plate attached to the control module is marked with the following details: Company name: Gotthard 3 Mechatronic Solutions AG Gotthardstrasse 3 CH – 5630 Muri (AG) -
Page 6: Product Overview

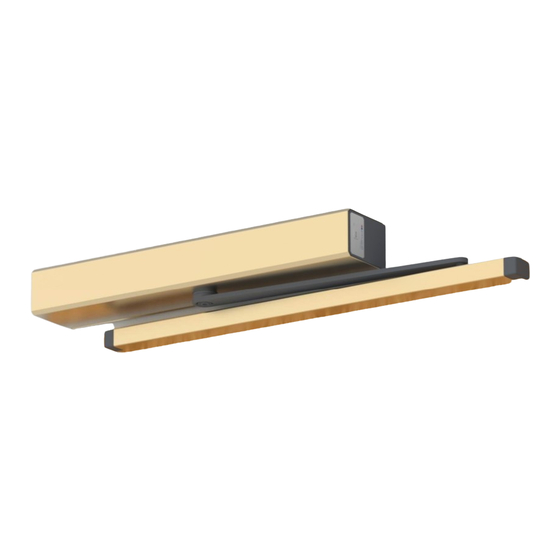

The smartdoor TURN targets precisely this application. With its Auto-Learning function it automatically calculates the necessary door parameters and makes easy work of commissioning. No safety elements are required. Figure 3: smartdoor TURN T100 basic module... -
Page 7: The Linkage
TURN T100 | Operating Instructions 1.2.2 The linkage The smartdoor TURN can be fitted with the following linkage types: Sliding linkage Scissor linkage The linkage types and their uses are described in chapter 3.3 Linkage types. 1.2.3 The operating elements The smartdoor TURN can be fitted with the following elements: ... -
Page 8: The Control Module
TURN T100 | Operating Instructions Figure 6: Drive module In the +/-15° range a mechanical reset torque is generated internally such that the door can be held in the closed position without motor power. Thus, in the currentless state the door behaves like a self-closing drawer. -
Page 9: The Smartdoor Service Tool
TURN T100 | Operating Instructions 1.2.8 The smartdoor Service Tool The smartdoor Service Tool can be used by the service technician on a Windows Notebook to carry out a wide range of adjustments after mechanical installation. This includes the following: ... -
Page 10: Safety
TURN T100 | Operating Instructions 2 Safety 2.1 Symbols and display of warnings Various symbols are used in these operating instructions for easier understanding: NOTICE Tips and information, which help you work correctly and efficiently. CAUTION Important note, when materials are damaged or the function can be affected. - Page 11 TURN T100 | Operating Instructions completed machinery or systems to form a machine in the sense of the above directive. WARNING This product may not be operated until it has been determined that the whole machine / system in which it has been installed, corresponds to the provisions of the above EC directive.
- Page 12 TURN T100 | Operating Instructions Encoding systems for automatic doors (DIN 18650) 1 – swing door operator Drive type 2 – Sliding door operator 3 – Swing/sliding door operator 4 – Folding door operator 5 – Revolving door drive 1 –...
-
Page 13: Intended Use
The smartdoor TURN T100 may be used on escape and rescue routes and on fire doors. Intended use of equipment also includes compliance with the manufacturer's operating instructions and regular care and maintenance. - Page 14 TURN T100 | Operating Instructions The operator is responsible for the operation of automatic door systems and for regular maintenance and safety inspections. The "Operator checks" checklist can be helpful for this (see inspection book).
-
Page 15: Low-Energy Mode
TURN T100 | Operating Instructions 6 Operating mode The smartdoor TURN knows the following operating modes: Automatic: All operating and safety elements are active Continuously open: The door remains open until the operating mode is changed Initialisation: The door travels to the closed position and is locked ... -
Page 16: Operating Mode - Continuously Open (Led: Flashing Green)
TURN T100 | Operating Instructions A static wind pressure or wind gust is detected and does not cause the door to open. In the holding version "Door handle with disabled latch" the door operator can, if required, ensure the closed position with a current feed to the soft lock. -
Page 17: Auto-Learning Operating Status (Led: Flashing Red/Orange)
TURN T100 | Operating Instructions Functionality The initialisation is indicated by 3 short beeps. The drive then starts to move to its closed position. Once reached, the drive acknowledges all impending errors and switches to the last selected operating mode. -
Page 18: Operation
TURN T100 | Operating Instructions 7 Operation 7.1 Main switch In order to actuate the main switch the housing is removed. The main switch is located on the opposite side of the MODE push button and is easily accessible on the top (see Figure 34: Main switch). -
Page 19: Manual Reset Of An Error
TURN T100 | Operating Instructions 7.3 Manual RESET of an error In the event of an error the door remains in the current state, switches to system error operating mode and indicates this with 10 beeps and a red flashing LED. In this state, all operating and safety elements are deactivated. -
Page 20: Smartdoor App
TURN T100 | Operating Instructions 7.5 smartdoor APP With the smartdoor APP, the owner of smartdoor door operators can correspondingly adjust the most important parameters according to their requirements. In the process, the limit values are automatically adapted to the door configuration. It is therefore for example not possible to set the opening or closing speed faster than the value specified in LOW ENERGY. -
Page 21: Main Menu - My Doors
TURN T100 | Operating Instructions 7.5.2 Main menu - My doors This screen is displayed when you start the APP. It contains a list of all connected door operators. Figure 36: Main menu – My Doors screen 7.5.3 Connect new door operator in the APP The "Add door"... -
Page 22: Door Control
TURN T100 | Operating Instructions 7.5.5 Door control The "Door Control" screen is divided into three sections. The door operator can be used to adapt the most important settings to your own preferences and call up information. First section: The door can be opened with the "OPEN"... -
Page 23: User Manual / Faq
TURN T100 | Operating Instructions 7.5.6 User manual / FAQ In this screen the user manual and other helpful documents are displayed. For this an APP which can display PDF documents must have been installed on the smartphone. The most recent versions of the documents are always shown. The prerequisite for this is an active Internet connection. -
Page 24: Service
TURN T100 | Operating Instructions 8 Service 8.1 Care / operator checks 8.1.1 Switch off Switching off is explained in chapter "7.1 Main switch". 8.1.2 Checks The operator must carry out checks 1x monthly or if an error occurs or in the event of abnormal noises. -
Page 25: Troubleshooting
TURN T100 | Operating Instructions 9 Troubleshooting 9.1 Reset In the event of an error the door remains in the current state which is indicated by a continuous beep. If an error cannot be automatically remedied by the door operator (see chapter 5.2 Automatic troubleshooting function), press and hold the MODE key (approx. -
Page 26: Technical Data
TURN T100 | Operating Instructions 10 Technical data Service life Service life min. 500,000 cycles, 2400 cycles/day Mechanical data Drive dimensions single leaf 400 x 52 x 72 mm (W x H x D) Closing force in accordance with EN 1154... - Page 27 TURN T100 | Operating Instructions Table 12: Area of use and opening times in LOW-ENERGY operation...
-
Page 28: Appendix
TURN T100 | Operating Instructions 11 Appendix 11.1 Connecting terminals X1.01 Output: NO X1.02 Output: NC X1.03 Programmable relay Input: COM with 0-125 VAC/DC, 1 A X1.04 X1.05 24 V VDC 1: Short-circuit-proof X2.06 (DIO) Inverted signal of DIO Freely programmable in / output X2.07... -
Page 29: Display Led And System Error
TURN T100 | Operating Instructions 11.3 Display LED and system error 11.3.1 Communication module MODE LED Beep Description signal Flashing orange 1x short, Initialisation after Power-ON 3x long or after a RESET green MODE: Automatic flashing green MODE: Continuously open... - Page 30 TURN T100 | Operating Instructions or after a RESET flashing red (rapid) Firmware update, control module active flashing red System error short see Table 21: System error Table 20: Display system LED System Description Remedy error Display in smartdoor APP or Service Tool...
- Page 31 TURN T100 | Operating Instructions 11.4 Construction Planner Template – Object overview...
-
Page 32: Auto-Learning Function
TURN T100 | Operating Instructions 11.8 Auto-Learning function...
