gotthard smartdoor TURN T100 Operating Manual

Service tool v1
Hide thumbs Also See for smartdoor TURN T100:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating manual
Service Tool v1
311014
2020-04-24/EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the smartdoor TURN T100 and is the answer not in the manual?

Questions and answers

Related Manuals for gotthard smartdoor TURN T100

Summary of Contents for gotthard smartdoor TURN T100

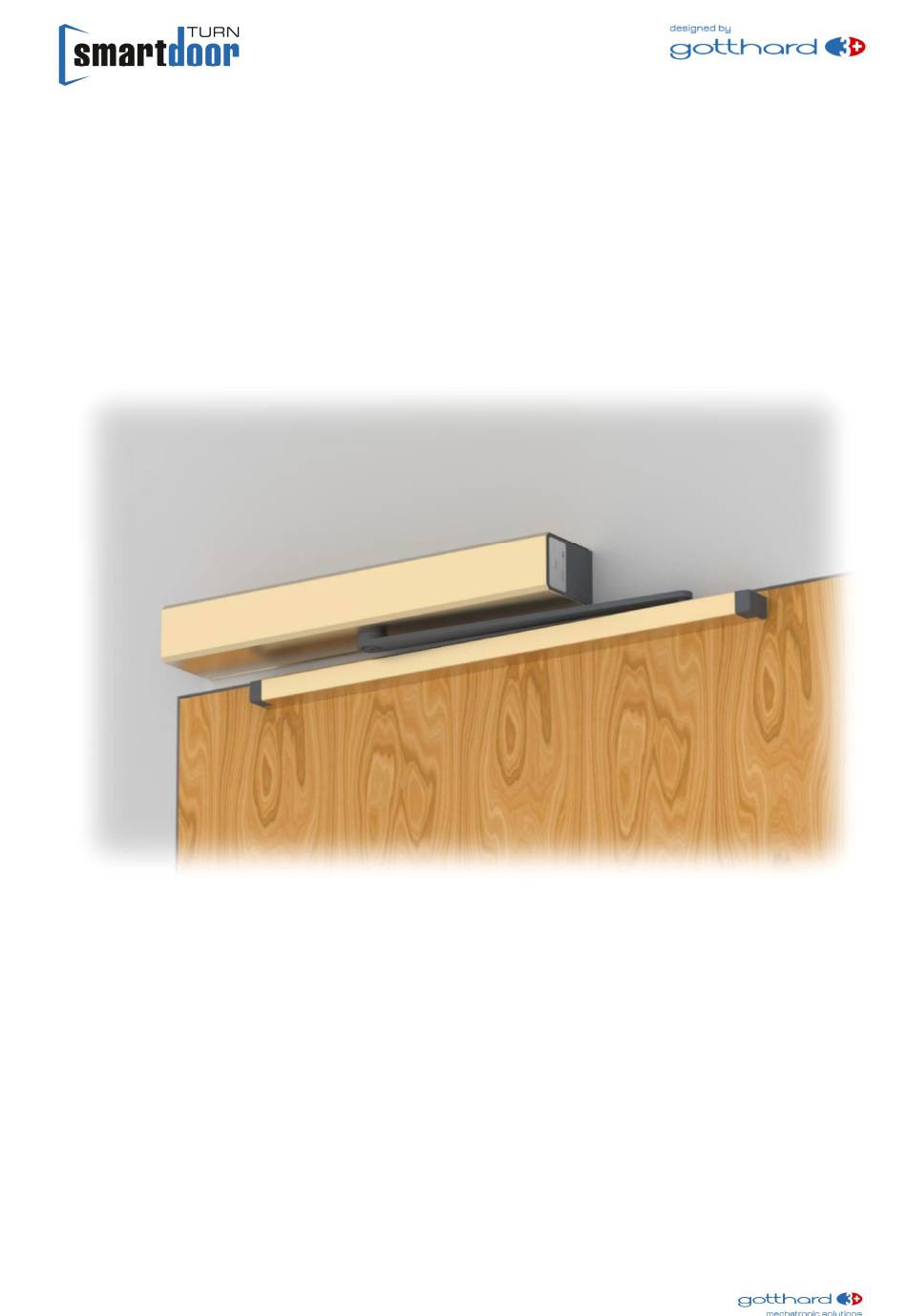

  • Page 1 Operating manual Service Tool v1 311014 2020-04-24/EN...

  • Page 2: Table Of Contents

    TURN T100 | Service Tool operating manual Table of contents Installing smartdoor TURN on a computer ..............3 Connecting the computer with smartdoor TURN via Bluetooth ........3 Bluetooth setting - Windows 10 ................ 3 Bluetooth setting - Windows 7 ................4 Connecting the Service Tool with smartdoor TURN ............

  • Page 3: Installing Smartdoor Turn On A Computer

    TURN T100 | Service Tool operating manual 1 Installing smartdoor TURN on a computer 1.1 Connecting the computer with smartdoor TURN via Bluetooth If the door opener is not listed under the Bluetooth devices on this notebook (see Figure 3: Windows 10 dialog box "Bluetooth and other devices"), the door opener must be connected via...

  • Page 4: Bluetooth Setting - Windows 7

    TURN T100 | Service Tool operating manual Bluetooth setting - Windows 7 Add and connect an appropriate device. A connection with the door opener can be established on the PC via "Add Bluetooth device". Figure 4: Windows 7 dialogue box "Add device"...

  • Page 5: Connecting The Service Tool With Smartdoor Turn

    TURN T100 | Service Tool operating manual 1.2 Connecting the Service Tool with smartdoor TURN Copy the complete folder with all sub-folders to the hard disc Start the Service Tool. Figure 6: Starting the Service Tool Once-only password request Read and make a note of the product ID and serial number on the type plate.

  • Page 6: Deleting Smartdoor Turn From The Computer

    TURN T100 | Service Tool operating manual 2 Deleting smartdoor TURN from the computer It is recommended that you delete the smartdoor as a Bluetooth device from your computer as soon as the access with the Service Tool is completed.

  • Page 7: Working With The Service Tool

    TURN T100 | Service Tool operating manual 3 Working with the Service Tool 3.1 Firmware update If an important firmware update is pending, a corresponding notice will be displayed in a popup window after connecting to the door opener.

  • Page 8: Firmware Update - Communication Module

    TURN T100 | Service Tool operating manual NOTE During the loading of the controller firmware, the red LED flashes rapidly, the LED on the communication module lights up green and a dialogue box appears in the Service Tool with corresponding information.

  • Page 9: Interruption Of The Firmware Update

    TURN T100 | Service Tool operating manual Interruption of the firmware update If the loading of the firmware update should be interrupted for any reason, the door opener can be reconnected to the Service Tool in order to load the firmware update again.

  • Page 10: Settings

    TURN T100 | Service Tool operating manual 3.2 Settings Select the "Settings" tab, select the desired setting and enter a new value. A detailed description is shown in the lower screen area. The changed settings are accepted by the system with the "Confirm" command.

  • Page 11: Saving Settings As A Recipe

    TURN T100 | Service Tool operating manual 3.3 Saving settings as a recipe Select the "Settings" tab; select the "Save as recipe" command. With the "Save as recipe" command, all settings are saved in a file on the hard disk. The file name is displayed in a popup window.

  • Page 12: Adopting Settings From A Recipe

    TURN T100 | Service Tool operating manual 3.4 Adopting settings from a recipe Select the "Recipe" tab; select the "Open recipe" command. Select the corresponding path and file name and select the "Open" command. Figure 19: Recipes – opening a recipe The settings for this recipe are displayed and can be checked and if necessary adjusted.

  • Page 13: Periphery

    TURN T100 | Service Tool operating manual 3.5 Periphery Select the "Periphery" tab. Select a button in the lower task bar or a device from the selection list. Figure 21: Periphery - buttons With the "Delete" command, the selected button / device is removed from the list and thus also from the Bluetooth white list, so that it can no longer connect to the door opener.

  • Page 14: Auto Learning

    TURN T100 | Service Tool operating manual 3.6 Auto learning Select the "Auto learning" tab and follow the program. step: Select type of linkage - Click the picture on the left for a door with sliding linkage - Click the picture on the right for a door with a scissor linkage Figure 23: Entering the type of linkage step: Close the door and click "OK"...
  • Page 15 TURN T100 | Service Tool operating manual step: Close the door and click "OK" Please close the door and click OK Figure 26: Closing the door step: Check the door position The setting of the door position is checked: - If everything is OK, proceed to the next step - If not, press "Reset STG"...
  • Page 16 TURN T100 | Service Tool operating manual step: Output shaft rotates freely until finished The drive rotates until the correct holding position has been found. This procedure can take up to 1-2 minutes. Figure 29: Output shaft rotates freely until finished...

  • Page 17: Status

    TURN T100 | Service Tool operating manual 3.7 Status Select the "Status" tab. With the "Update Status" command, all statuses are updated cyclically every second and displayed in the "Messages" box. The cyclic updating is stopped by selecting the "Update Status" command again.
  • Page 18 TURN T100 | Service Tool operating manual Configuration with Auto-Learning: The Auto-Learning and the associated automatic configuration of the presence sensors is described in the smartdoor user manual. Configuration with Service Tool: Prerequisite: Presence sensor is correctly electrically connected to the door opener and configured. The electrical schematics provided by smartdoor can be helpful for this.

  • Page 19: Door Commands

    TURN T100 | Service Tool operating manual 3.8 Door commands Figure 34: Door commands smartdoor TURN T100 door commands Command Description Open door Open door command Restart controller The controller is restarted Table 1: Door commands 3.9 Messages The messages are displayed in the box and can be filtered.
