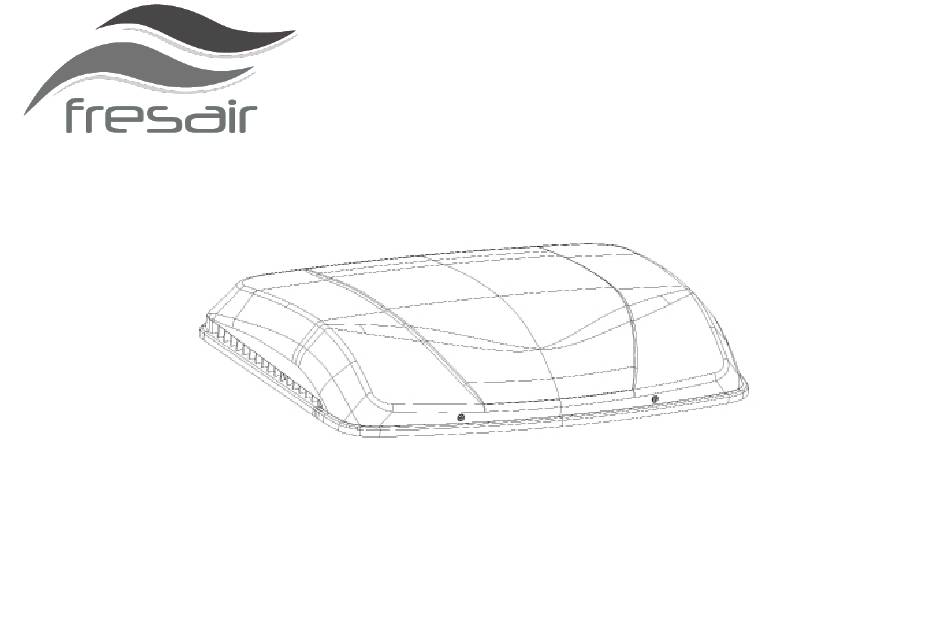

- Page 1 S7i Owner’s Manual www.fresair.com...
- Page 2 This product will provide you with extreme comfort in hot and humid climates. Fresair is a company that takes care of your life quality , that ́ s why we have prepared this guide. Here you will find simple and easy instructions to obtain the best performance from your roof air cooler .
-
Page 3: Table Of Contents
Index Main Components Control Panel Maintenance Items Fault Codes Technical Data Remarks Warranty... -
Page 4: Main Components
1. Main Components Top cover Control Panel Straw filter set Fan bracket Fan cover Internal water tank Internal base filter Base prefilter Water pump Base Sealing profile Main panel Control panel Interior light (when equipped) Air vent Finishing frame... -
Page 5: Control Panel
2. Control Panel • TURNING THE ROOF AIR COOLER ON/OFF: To turn the roof air cooler on, press button 5 on the control panel. To turn the roof air cooler off, press button 5. R6 Model : • FAN SPEED: R6 control panel has 5 speeds controlled by button 1 - Remote control IR receiver (remote not included) Pressing multiple times cycles between low, medium and high 2 - Low water signal lamp / fill up (yellow) -
Page 6: Maintenance Items
Maintenance Items • LACK OF WATER: The control panel has a sensor to detect lack of water inside the tank. When the water level is lower than minimum, the yellow led 2 starts blinking, informing the user needs to refill the water tank. - Page 7 Note: Take out the pumps every two months and clean them with air blast. It is recommended to replace them every six months. A periodical maintenance is essential for the best performance of your Fresair roof air cooler.
- Page 8 Note 02: The removal of the check valve will cause accumulation of water in the base and water may leak into the outside of the vehicle. A periodical maintenance is essential for the best performance of your Fresair roof air cooler.
-
Page 9: Fault Codes
4. Fault codes • CONTROL PANEL R6: It controls all equipment functions. It doesn’t have a fixed useful life since this depends on the handling and periodical revisions. This product is equipped with an internal safety circuit against fan and pumps short-circuits. In case your roof air Control Panel R6 cooler stops working, always check the fan and pumps first, since the defect could not be on the control panel. -
Page 10: Technical Data
5. Technical data Battery consumption in amperes/hour according to fan speed, including water pumps consumption: • Dimensions: - Height: 5.5” Internal Roof Internal Roof - Width: 34.5” - Length: 25” Air Cooler Air Cooler • Product weight: - 35lbs, 70lbs including full 15L water tank (without packaging) Minimum... -
Page 11: Remarks
, in order to repair the problem. In no case, will Fresair change the product for a new one solely because ATTENTION: Never add softener, essences, perfumes or similar to it has a defective component. - Page 12 This warranty does not cover the following items: a) Damages caused by accidents; b) Plastic items: superior cover in ABS plastic, main panel, finishing frame and base; c) Electric harness or hoses cut or damaged; d) Control panel with any signal of violation or if it was used in other roof air cooler brand;...
- Page 13 Customer: ........................Sale/Installation date: ______/______/20_____ Warranty validity date: ______/______/20______ Equipment series Nº: ..................................................Invoice Nº: ...........................
- Page 14 Fresair, LLC. Indian Wells, CA info@fresair.com CERTIFIED COMPANY ISO 9001 • IATF 16949 • ISO 14001 www.fresair.com...
