User Interface; Control Panel; Access Levels And Codes - Tecnoalarm Tecnofire TFA1-298 Installation Manual

The user interface of the control panel consists of a 480 x 272 pixels TFT color graphic display, 16 signaling LED, 5 function
keys, 7 navigation keys and 10 number keys, with which the user can manage the system. The user interface is completed by the
speaker that, according to the functional states of the control panel, provides audible alarms or notifi cations by using the voice
synthesis function.
The control panel manages 10 access codes associated to 4 levels of access: level 1 (not protected by code), level 2 (user),
level 3 (installation and maintenance personnel) and level 4 (manufacturer).
Level 1
In stand-by, the control panel provides access to the functions reserved to the level 1, without having to enter a code.
The access level 1 allows to perform the following operations:
A - Access the upper levels with the keys 1 or 2 or 3 and the relevant code (password)
B - Acknowledge the alarm pressing the ACK key
C - Display the acknowledged, the ongoing alarms and those stored in the event categories folders.
Level 2
To access level 2 press the key 1 and enter the relevant user code, then press the confi rmation key.
At level 2, it is possible to perform all the operations of the level 1, plus the followings:
A - Reset the control panel pressing the RESET key.
B - Switch the operating state of the control panel (monitored/not monitored).
C - Manually activate an evacuation alarm.
D - Access the list of menus reserved to level 2.
E - Stop and reset the sirens.
Level 3
To access level 3 press the key 2 and enter the relevant installer code, then press the confi rmation key.
Access to level 3 is reserved to staff authorized to edit important operating parameters.
At level 3 it is possible to perform all the operations of the levels 1 and 2 and to access the menus reserved to level 3
(system confi guration menu)
Level 4
To access level 4 close the JP5 KEY jumper, press the key 3 and enter the manufacturer code, then press the confi rmation key.
Access to level 4 is reserved to highly qualifi ed personnel authorised by the manufacturer to carry out technical services of special
importance.
At level 4 it is possible to perform all the operations of the previous levels and to access the menus reserved to level 4.

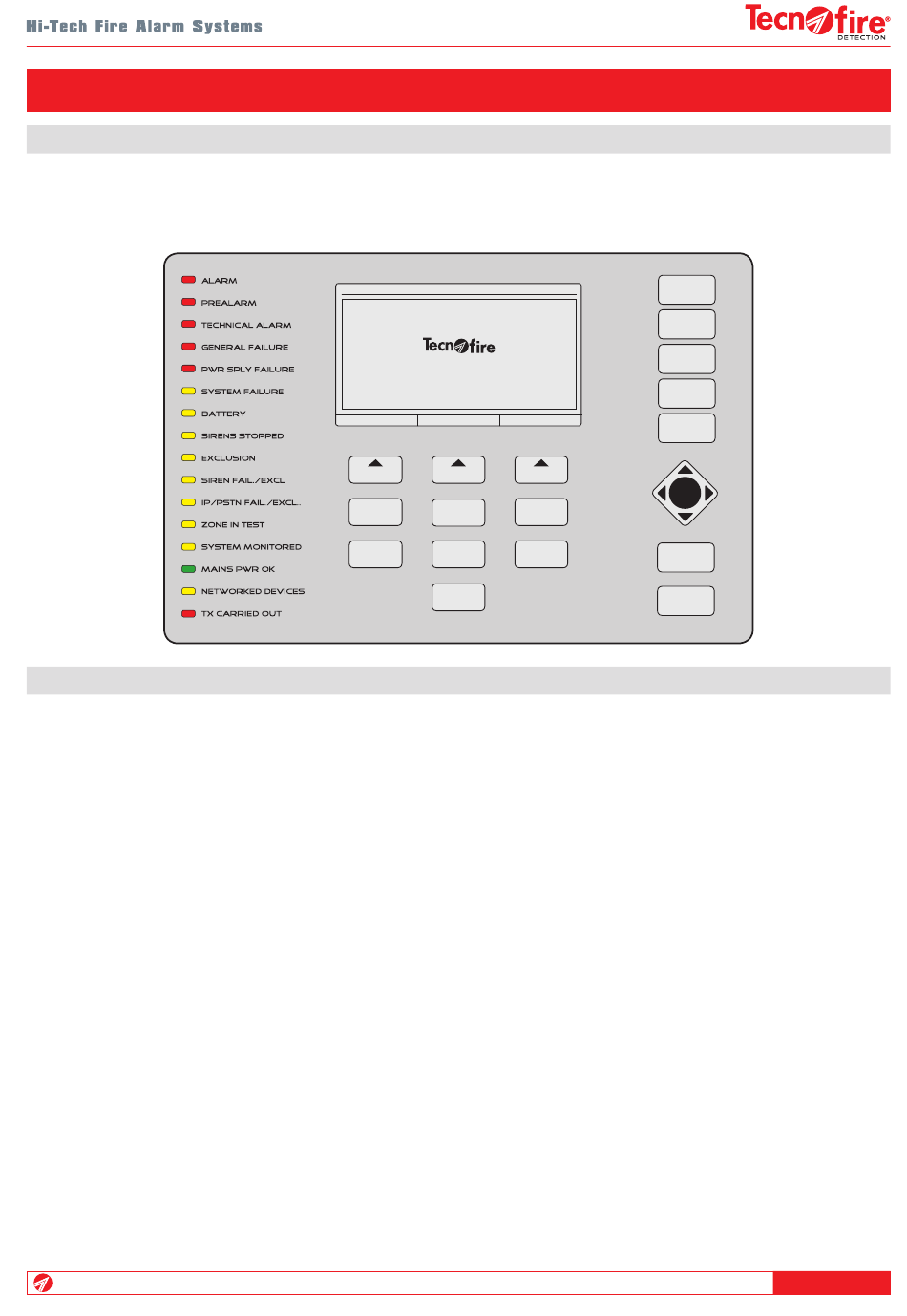

The following table shows how to enter the codes and access the different access levels:
Access level key + code + confi rmation key.
