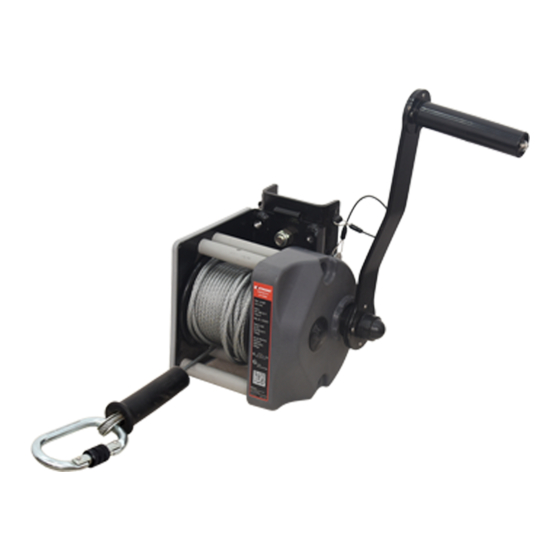

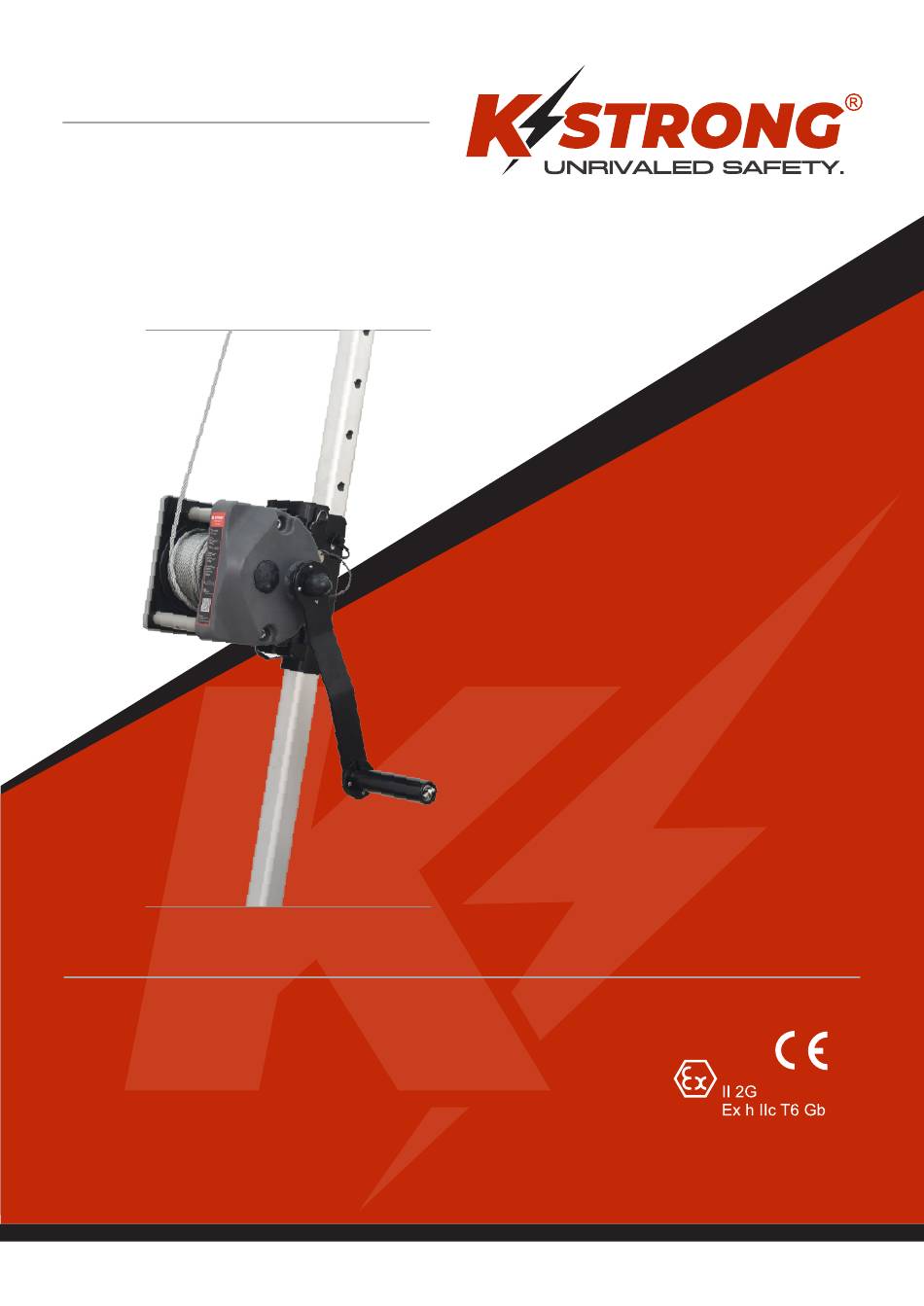

- Page 1 USER INSTRUCTION MANUAL BRUTE WINCH THESE INSTRUCTIONS APPLY TO THE FOLLOWING MODELS: EN 80079-36:2016 EN 80079-37:2016 AFT730020, AFT730040, AFT730120 and AFT730135...
-
Page 2: Performance And Limitations Of Use
Brute winche s are classed as rescue lifting devices by the European Machinery Directive 2006/42/EC and have been shown to comply with this Directive through the Harmonized European Standard EN1496 Class A [AFT730020 & AFT730040]. PERFORMANCE AND LIMITATIONS OF USE:... - Page 3 Winch : Ref No. AFT730040 Length Ÿ To be used for raising or lowering of a person or material into confined spaces. Ÿ Comes with pre-installed mounting plate compatible with the mounting bracket fixed on the leg of the Tripod and can also be fitted to Extreme Davit Systems Ÿ...
- Page 4 INSTRUCTIONS FOR INSTALLATION OF WINCH AFT730020 ON TRIPOD (AFT710007/AFT710010) Solid Pin Winch Pre-installed Mounting Bracket Guiding Pin Step 01 Step 02 Step 03 Locate the tripod leg that has pre- Place the winch on the mounting Use solid pin for locking the winch...
- Page 5 INSTRUCTIONS FOR INSTALLATION OF WINCH AFT730020 ON EXTREME STAINLESS DAVIT (AFT7500) Winch Cotter Canteliver Arm Step 01 Step 02 Step 03 Locate the Extreme Stainless Davit Use solid pin for locking the winch Lock the solid pin on mounting arm that has pre-installed mounting on pre-installed mounting bracket brackets using cotter pin.
- Page 6 INSPECTION: Visually inspect the system before each use to ensure that it is in a serviceable condition and is operating correctly. If during inspection, doubts are raised about the safety of the system or a component, these should be replaced either by the manufacturer or a competent person.
- Page 8 Certification Body : SATRA Technology Centre, Wyndham Way, Telford Way, Kettering, Northamptonshire, NN16 8SD, UK (Notified Body 0321) For EU Declaration, please visit https://kstrong.com/asia/eu-declaration-form/ KStrong Inc. 150 N. Radnor Chester Road Suite F200 Radnor, Pennsylvania 19087 United States Contact number : 1-833-KSTRONG Contact Email: customercare@kstrong.com...
