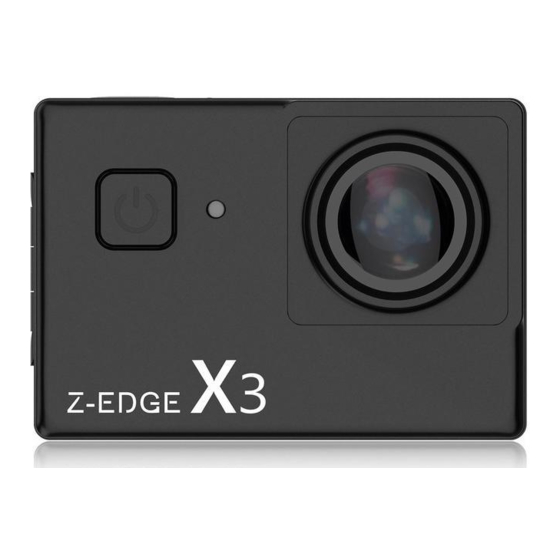

Z-EDGE X3 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

3
X3
USER GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Z-EDGE X3

Summary of Contents for Z-EDGE X3

  • Page 1 USER GUIDE...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION ................PRODUCT OVERVIEW ..............GETTING STARTED ..............NAVIGATION ................. PERSONALIZED SETTINGS............VIDEO RECORDING MODE ............PHOTO CAPTURE MODE ............ALL MODES & GENERAL ............COMMON FUNCTIONS ............MOUNTING GUIDELINES ............TECHNICAL SPECIFICATIONS ..........

  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing the X3 High Definition Sports / Action Camera by Z-Edge . ® A waterproof, 4K ready portable camera for recording indoors and outdoors. Please read this manual carefully before using this product. We hope you enjoy using this product.
  • Page 6 The memory card will spring out for removal. Connecting via WiFi Connect the X3 Camera to a mobile device via WiFi using the ‘Z-VergeX3’ app. Control the camera shutter and change basic settings remotely via the app (effective range up to 33 feet / 10 meters), or download video and photo files directly to your mobile device.

  • Page 7: Navigation

    2. Power on your X3 Camera. Press the (5) WiFi Connect/Up button to enable WiFi on your camera. The yellow indicator light on top of the camera will flash yellow when WiFi is enabled. Your camera's unique WiFi Information including network name (SSID) and password will display on the LCD screen (12).
  • Page 8 Short press button to take a video recording. The X3 Camera will automatically switch from Photo Capture or Slow Motion modes to Video Recording mode. The X3 Camera can simultaneously record a video and take photos during that recording using the remote control shutter button.

  • Page 9: Personalized Settings

    PERSONALIZED SETTINGS VIDEO RECORDING MODE Video Resolution Set the resolution of the X3 Camera as per the list below. All video is captured at an ultra wide 170-degree field of view which provides immersive video quality and best image stability.
  • Page 10 The higher the frame rate the more detail can be slowed down to show detailed moments that would otherwise appear as a blur. Set the resolution of the X3 Camera as per the list below: Video Resolution...

  • Page 11: Photo Capture Mode

    Loop Recording. Car Mode The X3 Camera can operate like a car dash camera in Driving Mode. The camera will automatically power on and begin video recording when connected to power. Once disconnected from power it will stop recording and automatically shut down after a period of time.

  • Page 12: All Modes & General

    Feature set inside Settings > General Settings > Language. Date-Time Change the date and time of the X3 Camera by using the Up and Down buttons to change each data entry (YYYY-MM-DD HH-MM-SS). Short press the Shutter/Select button to confirm data and move to the next entry. Short press the Mode switch button to save and exit menu.

  • Page 13: Common Functions

    "FAT32" format. To reformat a TF/MicroSD card simply enter it into the X3 Camera card slot and format by navigating to Settings > General Settings > Format. Please ensure you save any important files stored on your...

  • Page 14: Mounting Guidelines

    MOUNTING GUIDELINES Types of Mounts Camera 1x Camera Housing Joints 1x 360- 1x Straight Joint 2x 90-degree degree Joint Joints (Long & Short) 1x Helmet Mount Mounts 1x Handlebar 1x Tripod Mount Mount 2x Adhesive Mounts (Flat & Curved)
  • Page 15 Note: To securely attach a mount please ensure you read the following instructions below: · Attach adhesive mounts 72 hours before use (24 hours minimum) to ensure a strong bond. · Adhesive mounts must be mounted on smooth surfaces to ensure a proper bond. ·...

  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS Product Dimension 2.4inch x 1.6inch x 1.24inch (60mm x41mm x 31.5mm) (LxWxH) Weight About 2.12 oz(60g) Display Screen Dimension 2.0"HD screen(16:9) Lens 170-DEGREE, 6G A+ HD fish-eye lens 4K 30FPS (3840x2160 30FPS) Video Resolution 2.7K 30FPS (2688x1520,30FPS) 1080P 60FPS (1920x1080P 60FPS) 1080P 30FPS (1920x1080P 30FPS) 720P 120FPS (1280x720,120FPS) 720P 60FPS (1280x720,60FPS)
  • Page 17 Note: Android version supports 4.4.2 or above versions IOS8.0 or higher version is compatible with iPhone5s or above models. The design and specifications of this product could be amended at any time without prior notifications. There might be some differences between the product and the description in this manual.
  • Page 20 X3Z18UM-01...
