Summary of Contents for Z-EDGE X1

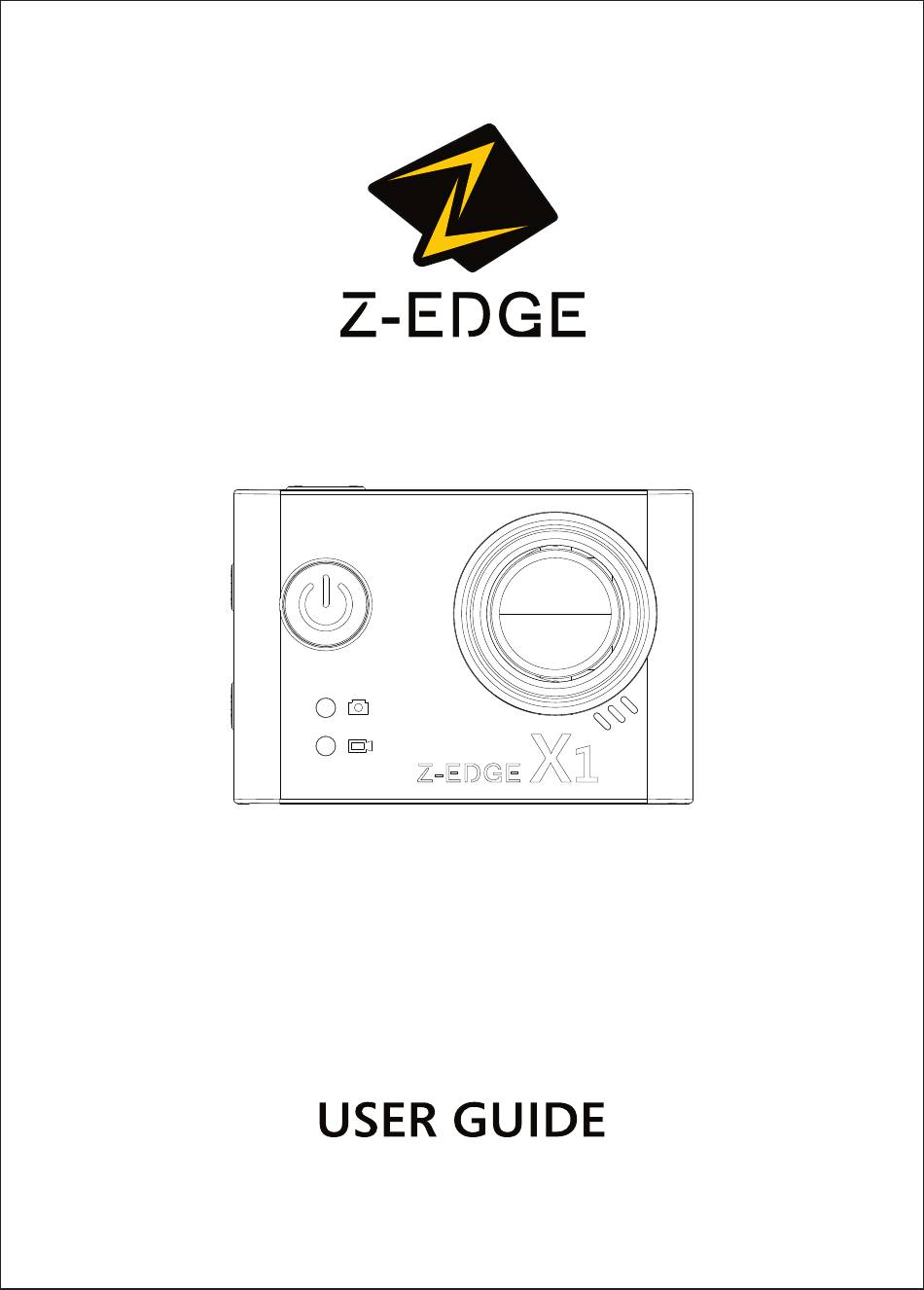

  • Page 1 X1 Action Camera...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION ................PRODUCT OVERVIEW ..............GETTING STARTED ............... NAVIGATION ................... PERSONALIZED SETTINGS..........................VIDEO RECORDING MODE ................ PHOTO CAPTURE MODE ................. ALL MODES & GENERAL COMMON FUNCTIONS .............. MOUNTING GUIDELINES ............TECHNICAL SPECIFICATIONS ...........

  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing the X1 High Definition Sports / Action Camera by Z-Edge . ® A waterproof, 4K ready portable camera for recording indoors and outdoors. Please read this manual carefully before using this product. We hope you enjoy using this product.

  • Page 5: Getting Started

    GETTING STARTED Camera Components Power/Mode Switch Button Status LED Indicator Photo LED Indicator Display Screen Recording LED Indicator Tripod Base Mount Camera Lens Battery Cover Loudspeaker HDMI Port Shutter/Select Button TF/MicroSD Card Slot WiFi LED Indicator Mini USB Port Shutter Button DownButton Recording Button WiFi Connect/Up Button...
  • Page 6 The memory card will spring out for removal. Connecting via WiFi Connect the X1 Camera to a mobile device via WiFi using the ‘Z-Verge’ app. Control the camera shutter and change basic settings remotely via the app (effective range up to 33 feet / 10 meters), or download video and photo files directly to your mobile device.

  • Page 7: Navigation

    3. Enable WiFi on your mobile device and select the cameras WiFi network, entering the password when prompted. 4. Once your mobile device is connected to the cameras WiFi, open the ‘Z-Verge’ app on your mobile device and select ‘Connect.’ 5.
  • Page 8 Short press button to take a video recording. The X1 Camera will automatically switch from Photo Capture or Slow Motion modes to Video Recording mode. The X1 Camera can simultaneously record a video and take photos during that recording using the remote control shutter button.

  • Page 9: Personalized Settings

    PERSONALIZED SETTINGS VIDEO RECORDING MODE Video Resolution Set the resolution of the X1 Camera as per the list below. All video is captured at an ultra wide 170-degree field of view which provides immersive video quality and best image stability.
  • Page 10 The higher the frame rate the more detail can be slowed down to show detailed moments that would otherwise appear as a blur. Set the resolution of the X1 Camera as per the list below: Video Resolution...

  • Page 11: Photo Capture Mode

    Recording > Loop Recording. Driving Mode The X1 Camera can operate like a car dash camera in Driving Mode. The camera will automatically power on and begin video recording when connected to power. Once disconnected from power it will stop recording and automatically shut down after a period of time.

  • Page 12: All Modes & General

    Feature set inside Settings > General > Language. Date-Time Change the date and time of the X1 Camera by using the Up and Down buttons to change each data entry (YYYY-MM-DD HH-MM-SS). Short press the Shutter/ Select button to confirm data and move to the next entry. Short press the Mode switch button to save and exit menu.

  • Page 13: Common Functions

    (commonly used for 64GB or larger memory cards). Please ensure your TF/MicroSD card is formatted to the supported "FAT32" format. To reformat a TF/MicroSD card simply enter it into the X1 Camera card slot and format by navigating to Settings > General > Format. Please ensure you save any important...

  • Page 14: Mounting Guidelines

    MOUNTING GUIDELINES Camera Housing The X1 Camera comes with a protective camera housing and two types of back windows: The standard back window makes the camera housing IP68 rated - dustproof, dirtproof, sandproof and waterproof up to 196 feet / 60 metres. Best for use in hazardous environments.
  • Page 15 In saltwater conditions clean the camera housing after every use to prevent salt buildup around the seals and corrosion of the hinge pin. Rinse thoroughly with non-salt water, shaking dry. Failure to do so could cause failure, leaks and damage to your camera and the battery. Types of Mounts Camera 1x Camera Housing...
  • Page 16 Note: To securely attach a mount please ensure you read the following instructions below: · Attach adhesive mounts 72 hours before use (24 hours minimum) to ensure a strong bond. · Adhesive mounts must be mounted on smooth surfaces to ensure a proper bond. ·...

  • Page 17: Technical Specifications

    TECHNICAL SPECIFICATIONS 2.4inch x 1.6inch x 1.32inch Product Dimension (60mmx41mmx33.5mm) (LxWxH) Weight About 0.14oz (65g) Display Screen Dimension 2.0"HD screen(16:9) Lens 170-DEGREE, 6G A+ HD fish-eye lens 4K 30FPS (3840x2160 30FPS) 2.7K 30FPS (2688x1520,30FPS) 1080P 60FPS (1920x1080P 60FPS) 1080P 30FPS (1920x1080P 30FPS) Video Resolution 720P 120FPS (1280x720,120FPS) 720P 60FPS (1280x720,60FPS)
  • Page 18 Note: Android version supports 4.4.2 or above versions IOS8.0 or higher version is compatible with iPhone5s or above models. The design and specifications of this product could be amended at any time without prior notifications. There might be some differences between the product and the description in this manual.
  • Page 19 X1I16UM-12...
