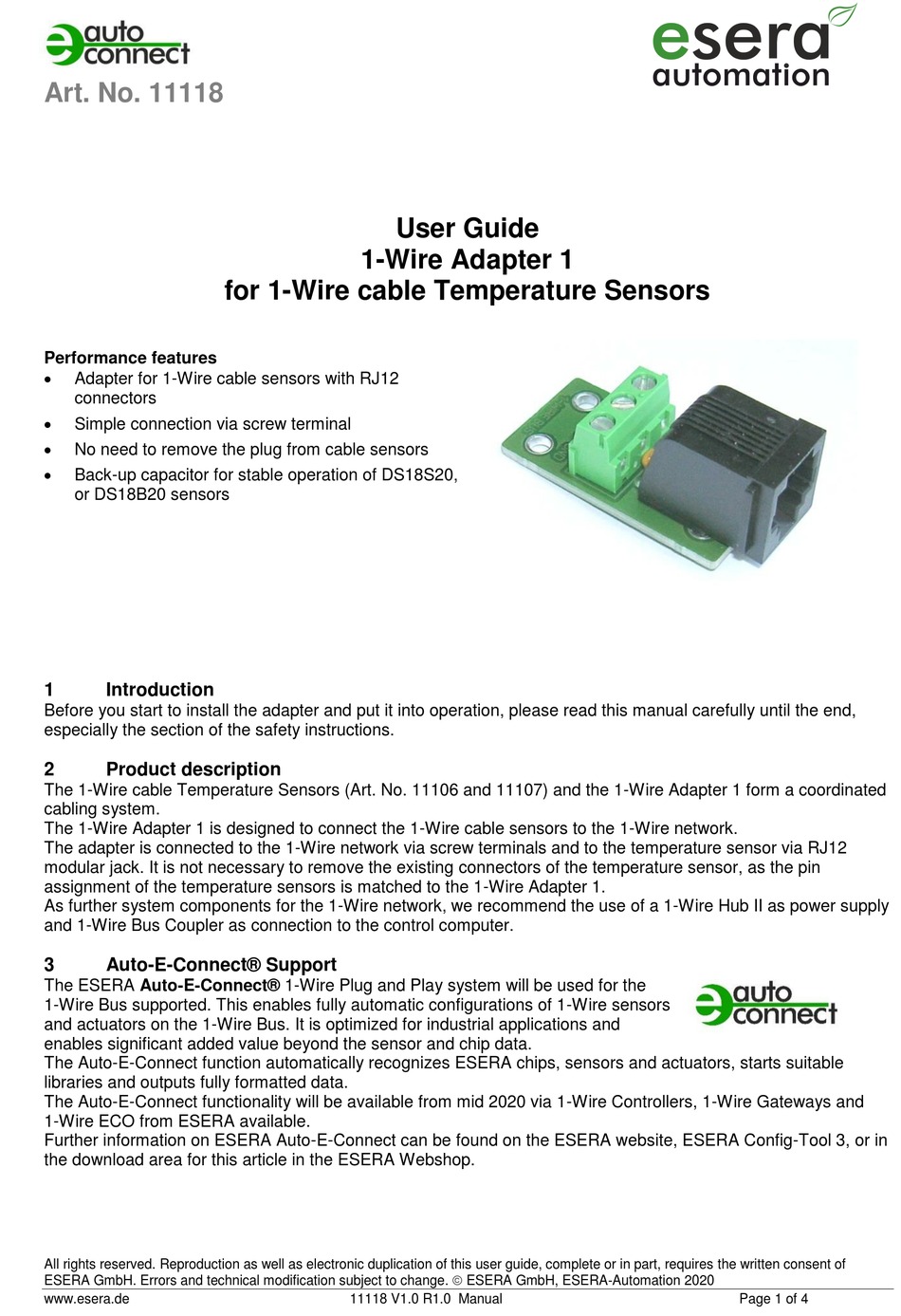

esera automation Auto-E-Connect 11118 User Manual

Art. No. 11118

Performance features


Adapter for 1-Wire cable sensors with RJ12
connectors

Simple connection via screw terminal

No need to remove the plug from cable sensors

Back-up capacitor for stable operation of DS18S20,
or DS18B20 sensors
1

Introduction

Before you start to install the adapter and put it into operation, please read this manual carefully until the end,
especially the section of the safety instructions.
2

Product description

The 1-Wire cable Temperature Sensors (Art. No. 11106 and 11107) and the 1-Wire Adapter 1 form a coordinated
cabling system.
The 1-Wire Adapter 1 is designed to connect the 1-Wire cable sensors to the 1-Wire network.
The adapter is connected to the 1-Wire network via screw terminals and to the temperature sensor via RJ12
modular jack. It is not necessary to remove the existing connectors of the temperature sensor, as the pin
assignment of the temperature sensors is matched to the 1-Wire Adapter 1.
As further system components for the 1-Wire network, we recommend the use of a 1-Wire Hub II as power supply
and 1-Wire Bus Coupler as connection to the control computer.
3 Auto-E-Connect® Support
The ESERA Auto-E-Connect® 1-Wire Plug and Play system will be used for the
1-Wire Bus supported. This enables fully automatic configurations of 1-Wire sensors
and actuators on the 1-Wire Bus. It is optimized for industrial applications and
enables significant added value beyond the sensor and chip data.
The Auto-E-Connect function automatically recognizes ESERA chips, sensors and actuators, starts suitable
libraries and outputs fully formatted data.
The Auto-E-Connect functionality will be available from mid 2020 via 1-Wire Controllers, 1-Wire Gateways and
1-Wire ECO from ESERA available.
Further information on ESERA Auto-E-Connect can be found on the ESERA website, ESERA Config-Tool 3, or in
the download area for this article in the ESERA Webshop.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de
1-Wire Adapter 1
for 1-Wire cable Temperature Sensors
11118 V1.0 R1.0 Manual
User Guide
Page 1 of 4
