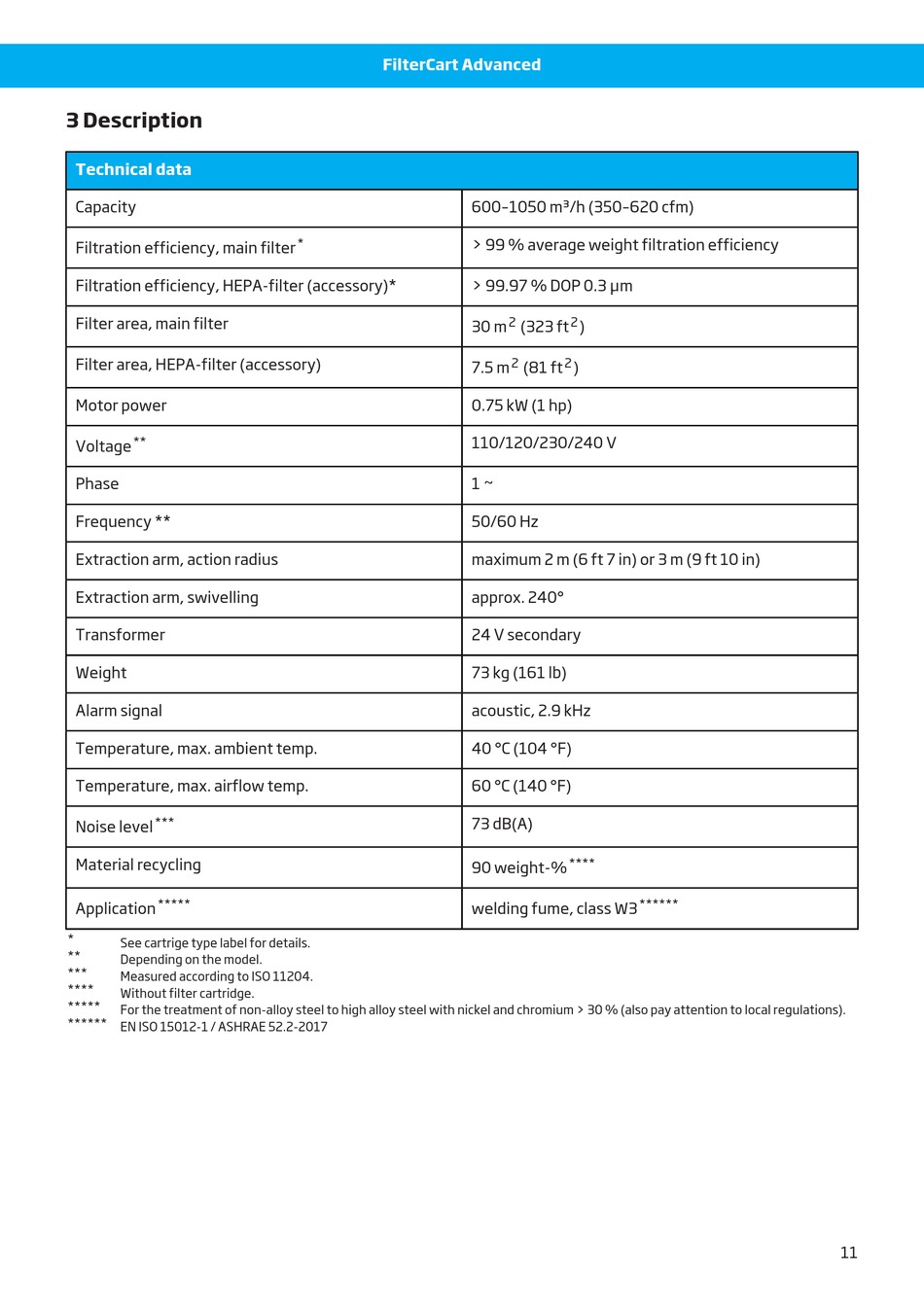

3 Description
Technical data
Capacity
Filtration efficiency, main filter
Filtration efficiency, HEPA-filter (accessory)*
Filter area, main filter
Filter area, HEPA-filter (accessory)
Motor power
**
Voltage
Phase
Frequency **
Extraction arm, action radius
Extraction arm, swivelling
Transformer
Weight
Alarm signal
Temperature, max. ambient temp.
Temperature, max. airflow temp.
***
Noise level
Material recycling
*****
Application
*
See cartrige type label for details.
**
Depending on the model.
***
Measured according to ISO 11204.
****
Without filter cartridge.
*****
For the treatment of non-alloy steel to high alloy steel with nickel and chromium > 30 % (also pay attention to local regulations).
******
EN ISO 15012-1 / ASHRAE 52.2-2017
FilterCart Advanced
600–1050 m³/h (350–620 cfm)
> 99 % average weight filtration efficiency
*
> 99.97 % DOP 0.3 µm
30 m
7.5 m
0.75 kW (1 hp)
110/120/230/240 V
1 ~
50/60 Hz
maximum 2 m (6 ft 7 in) or 3 m (9 ft 10 in)
approx. 240°
24 V secondary
73 kg (161 lb)
acoustic, 2.9 kHz
40 °C (104 °F)
60 °C (140 °F)
73 dB(A)
90 weight-%
welding fume, class W3
2
2
(323 ft
)
2
2
(81 ft
)
****
******
11
