UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx

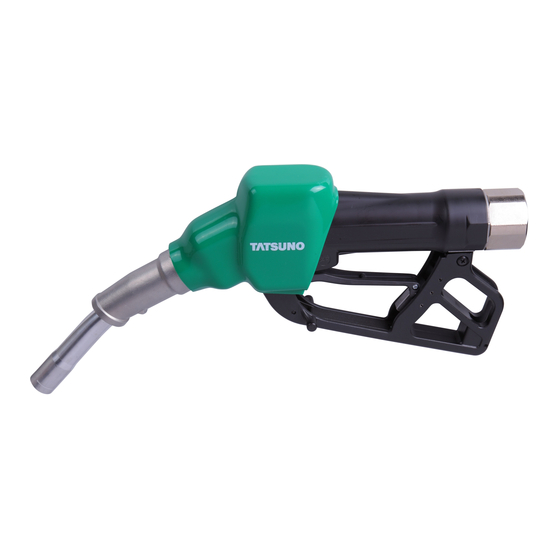

TATSUNO ULTRA Automatic Nozzle
for Vapour Recovery Fuel Dispenser
Nozzle Model: FN-1025 series
Instruction and Maintenance Manual
TATSUNO ULTRA automatic nozzle for vapour recovery without swivel
TATSUNO ULTRA automatic nozzle for vapour recovery with double swivel (FJ-1043)
II 1 G
Advertisement
Table of Contents
Related Manuals for tatsuno ULTRA FN-1025 Series
Summary of Contents for tatsuno ULTRA FN-1025 Series
- Page 1 TATSUNO ULTRA Automatic Nozzle for Vapour Recovery Fuel Dispenser Nozzle Model: FN-1025 series Instruction and Maintenance Manual TATSUNO ULTRA automatic nozzle for vapour recovery without swivel TATSUNO ULTRA automatic nozzle for vapour recovery with double swivel (FJ-1043) II 1 G...
- Page 2 In particular, the "HINTS AND TIPS FOR SAFE USE" explains important matters for preventing casualties and damages of properties. Please read and understand perfectly. If the Instruction Manual is not legible or lost, please call TATSUNO or the local TATSUNO agent.
- Page 3 UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx HINTS AND TIPS FOR SAFE USE Observe the following cautions. DANGER 1. Never use flame in the filling station. A lit cigarette of a customer or other flame may ignite to cause fire. ...
- Page 4 UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx HINTS AND TIPS FOR SAFE USE 5. Don't leave the place while refuelling. If the automatic shut off mechanism doesn't work due to mechanical trouble, fuel overflows to cause fire. Stop pump immediately if oil overflows. ...
- Page 5 UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx HINTS AND TIPS FOR SAFE USE WARNING If fuel leaks or ignites, do the following. If fuel leaks... Stop pump immediately. Move the customers to safe place. Sprinkle dry sand or the like over the leaking fuel to prevent diffusion. ...
-
Page 6: Table Of Contents
UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx CONTENTS Specification..……………………………………………………………………1 Instruction….……………………………………………………………………2 2-1. How to use nozzle……………………………………………………………………………2 2-2. Installation……………………………………………………………………………………3 2-3. Testing….……………………………………………………………………………………4 Maintenance..……………………………………………………………………5 3-1. Daily inspection…...…………………………………………………………………………5 3-2. Periodic inspections………………………………………….………………………………5 4. Trouble Shooting…………………………………………………………………6 5. Guarantee and Replacement Period……………………………………………7 5-1. Guarantee…………...………………………………………………………………………7 5-2. Replacement period...……………………………………….………………………………7... -
Page 7: Specification
UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx 1. Specification TATSUNO ULTRA automatic nozzles with vapour recovery are designed for use on fuel dispensers for the 'active' vapour recovery up to 45L/min flow rate. The TATSUNO ULTRA automatic nozzle with vapour recovery fulfils European Standard EN 13012, and each nozzle has been subjected to stringent tests before leaving the factory. -
Page 8: Instruction
UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx 2. Instruction 2-1. How to use nozzle 1. Insert the nozzle sufficiently into the fuelling port of the automobile and seal up vapour recovery boot with the fuelling port. 2. Pull the nozzle lever and lock in the latch. Fuelling starts. 3. -
Page 9: Installation
UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx 2-2. Installation 1. Shut off power to the dispenser before starting the nozzle & swivel installation or replacement. Relieve system pressure before servicing or replacing. 2. Carefully drain fuel from hose & nozzle & swivel into approved container in the case of replacing nozzles. 3. -
Page 10: Testing
UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx 2-3. Testing Each nozzle & swivel should be tested after installing and replacing. Necessary facilities Approved metal test container (please obey the local laws and regulations) Ground wire Insulation resistance tester ... -
Page 11: Maintenance
UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx 3. Maintenance 3-1. Daily inspection 1. Confirm that the nozzle & swivel do not leak with normal visual acuity. 2. Confirm that the nozzle & swivel have not deformation or other damages. 3. -
Page 12: Trouble Shooting
UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx 4. Trouble Shooting Problem Solution Nozzle keeps tripping off immediately. 1. The sensor or the air passage on the nozzle spout may be blocked by an alien substance or fuel. Remove the alien substance or fuel and fill again. -
Page 13: Guarantee And Replacement Period
UP051-EN Nozzle FN-1025 - Instruction and Maintenance Manual_rev2.docx 5. Guarantee and Replacement Period 5-1. Warranty period TATSUNO guarantees against defective materials and manufacturing during warranty period. Warranty period: One year from date of supply. If the delivery date cannot be established, the date code on the nozzle prevails.
