FOAM INSTALLATION
E

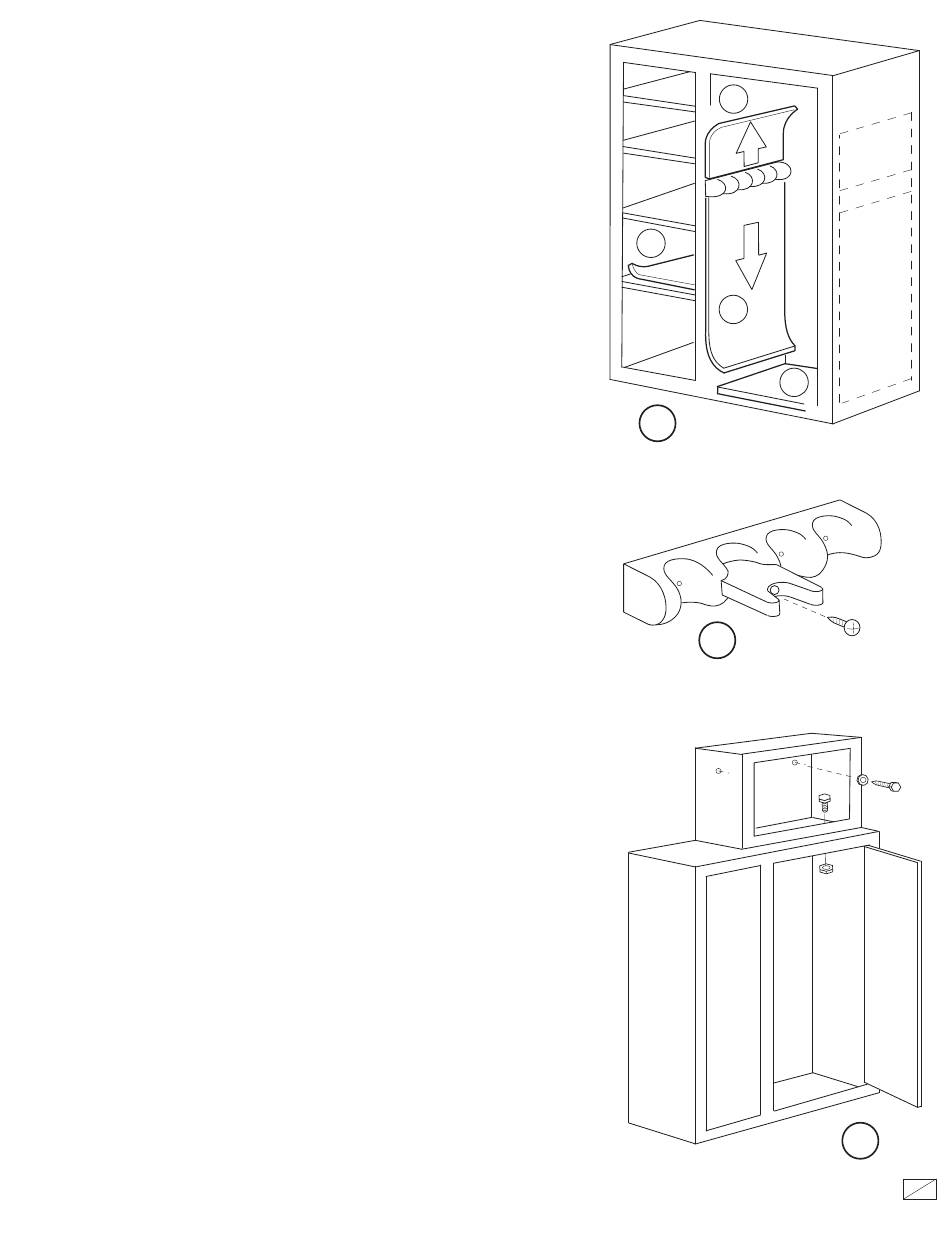

Install the foam lining as shown in figure 5.
First place the bottom foam (C) in the cabinet.
Next install the lower side pads (D). Remove the upper 2" of backing from the
pad. Gage to the barrel rest and remove the remaining backing while pressing
the foam into place.
Apply the top side foam (E). Gage to barrel rest and work up.
F
Place shelf foam (F) on shelves.
D
C
INSTALLATION OF SCOPE STAND-OFF
5
NOTE: The scope stand-off will function properly for many combinations of guns with
scopes.
Screw the scope stand-off into the pilot hole of the barrel rest. (See figure 6)
6
INSTALLATION OF GC-900-5 or GC-500-5 PISTOL-AMMO CABINET
ON TOP OF SECURITY CABINET
NOTE: The GCD-924-5 security cabinet must be installed as described above.
Remove the top hole plugs from the cabinet by pushing out from the inside of the cabinet.
Place the Pistol-Ammo cabinet on top and assemble with (2) 1/4-20 nuts and bolts. Do not
tighten bolts. (Figure 7)
Drill (4) 3/16" pilot holes into the wall studs and secure the cabinet to the wall using (4) lag
bolts and washers. (Figure7)
Tighten the (2) bolts that connect the cabinets.
IMPORTANT
Keep keys away from children. Keep this record of your serial and key
numbers in a secure place separate from your security cabinet. If you
lose your keys you will need this information as a reference for obtaining
new keys. To order a replacement key set, follow the instructions on the
attached form.
7
