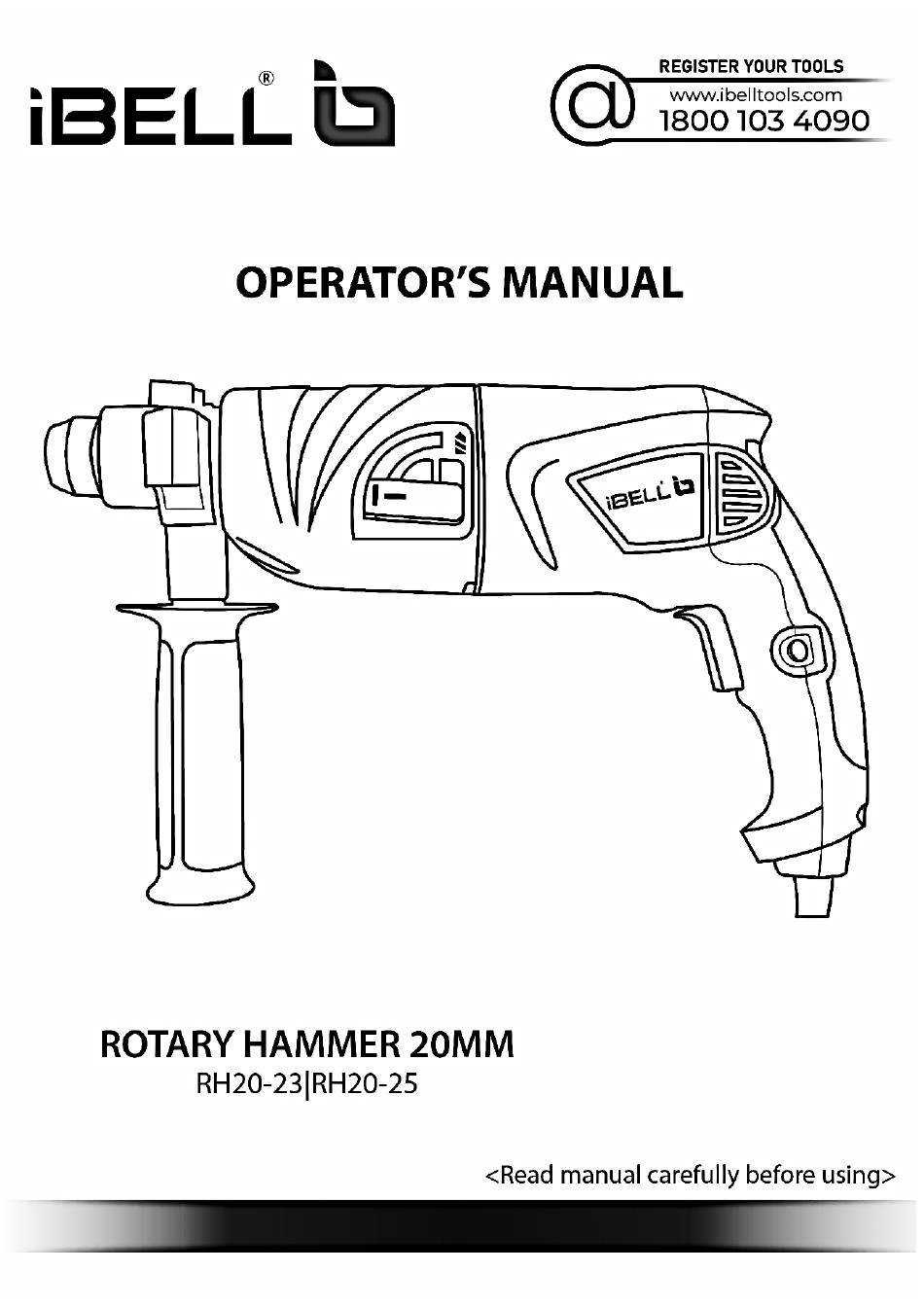

Summary of Contents for iBell RH20-23
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. GENERAL POWER TOOL SAFETY WARNINGS ___________ 2. ROTORY HAMMER SAFETY WARNINGS_________________ 3. PRODUCT OVERVIEW __________________________________ 4. PRODUCT SPECIFICATIONS ____________________________ 5. SETUP _________________________________________________ 6. PRODUCT FUNCTIONS AND ASSEMBLY ________________ 7. GENERAL OPERATION _________________________________ 8. TROUBLESHOOTING ___________________________________ IBL RH20-23/25... -
Page 3: General Power Tool Safety Warnings
Keep it away from heat, oil, sharp edges or moving parts. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. IBL RH20-23/25... - Page 4 When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. IBL RH20-23/25...
- Page 5 Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use. Danger of injury and property damage caused by other objects or due to natural reactions or calamities. IBL RH20-23/25...
-
Page 6: Rotory Hammer Safety Warnings
Improperly reconditioned chisels could cause injury. Wear gloves when operating tool or changing bits. Accessible metal parts on the tool and bits may get extremely hot during operation. Small bits of broken material may damage bare hands. IBL RH20-23/25... -
Page 7: Product Overview
PRODUCT OVERVIEW 1. SDS Plus Chuck/Tool Holder 2. Mode Adjustment knob 3. ON/OFF Switch 4. Switch lock on button 5. Auxiliary Handle 6. Depth rod adjustment screw 7. Depth rod IBL RH20-23/25... -
Page 8: Product Specifications
Impact energy per stroke SDS plus Chuck capacity : 20 mm Additional Chuck capacity : 13 mm Max Drill diameter : Concrete – 20 mm Wood – 30 mm Steel – 13 mm Protection class : Class II IBL RH20-23/25... -
Page 9: Setup
For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions mentioned in it. IBL RH20-23/25... -
Page 10: Product Functions And Assembly
Release the mode selector and check that it is locked in place. Mode Description Rotary drilling: for screw- driving and for drilling into steel, wood and plastics Hammer-drilling: for concrete and masonry drilling operations. IBL RH20-23/25... - Page 11 To use the depth rod, first insert the required drill bit. Unscrew the depth adjustment screw (6) and fit the depth rod through the hole in the depth stop clamp on the auxiliary handle. Adjust the drilling depth required and re-screw it. IBL RH20-23/25...
- Page 12 SDS-plus shank should be same as the drill bit used and so follow the steps referred above. Drill Chuck + Chuck Adaptor Chuck wrench; used for tightening or loosening the jaws of a chuck. IBL RH20-23/25...
-
Page 13: General Operation
Depending on your tool, either you can operate with the SDS Plus tool holder or using the additional drill chuck provided. (Refer ‘Fitting Drill chuck and adapter’ section for installation) Proceed the same steps as described for hammer-drilling. IBL RH20-23/25... - Page 14 WARNING! from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform repairs and maintenance work according to these instructions! All further works must be performed by a qualified specialist! IBL RH20-23/25...
-
Page 15: Troubleshooting
Only perform the steps described within these WARNING! instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! IBL RH20-23/25... - Page 16 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Do not dispose this product by normal household waste, but take it to a collection point and recycling of electrical and electronic equipment.
